IR3898
6A Highly Integrated SupIRBuck
TM
Single-Input Voltage, Synchronous Buck Regulator
PD-97662
83
85
87
89
91
93
95
97
0.6
1.2
1.8
2.4
3
3.6
4.2
4.8
5.4
6
Load Current (A)
1.0V
1.2V
1.8V
3.3V
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0.6
1.2
1.8
2.4
3
3.6
4.2
4.8
5.4
6
Load Current (A)
1.0V
1.2V
1.8V
3.3V

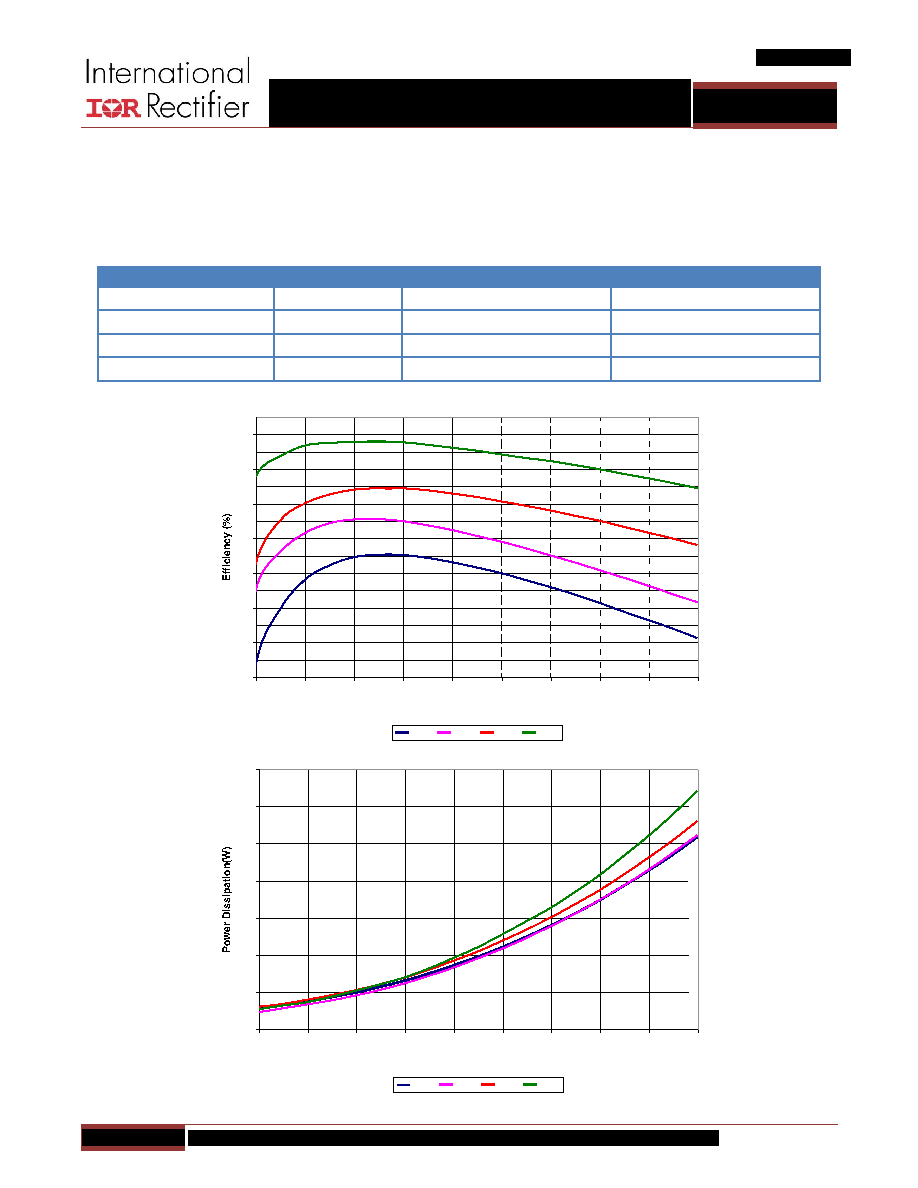

TYPICAL EFFICIENCY AND POWER LOSS CURVES
PVin = 5.0V, Vcc = 5.0V, Io = 0A-6A, Fs = 600 kHz, Room Temperature, No Air Flow. Note that the efficiency and power loss
curves include the losses of IR3898, the inductor losses and the losses of the input and output capacitors. The table below
shows the inductors used for each of the output voltages in the efficiency measurement.
VOUT (V)
LOUT (µH)
P/N
DCR (mΩ)
1.0
0.68
PCMB065T- R68MS (Cyntec)
3.9
1.2
0.82
SPM6550T-R82M(TDK)
4.2
1.8
0.82
SPM6550T-R82M(TDK)
4.7
3.3
1.0
SPM6550T-1R0M(TDK)
4.7
