- 24 -

JANURARY 18, 2013 | DATA SHEET | Rev 3.5

IR3898

6A Highly Integrated SupIRBuck

Single-Input Voltage, Synchronous Buck Regulator

PD-97662

Vcc

Vref=0.5V

1.2V

Soft Start (slave)

Enable (slave)

Vo1 (master)

Vo2 (slave)

(a)

Vo1 (master)

Vo2 (slave)

(b)

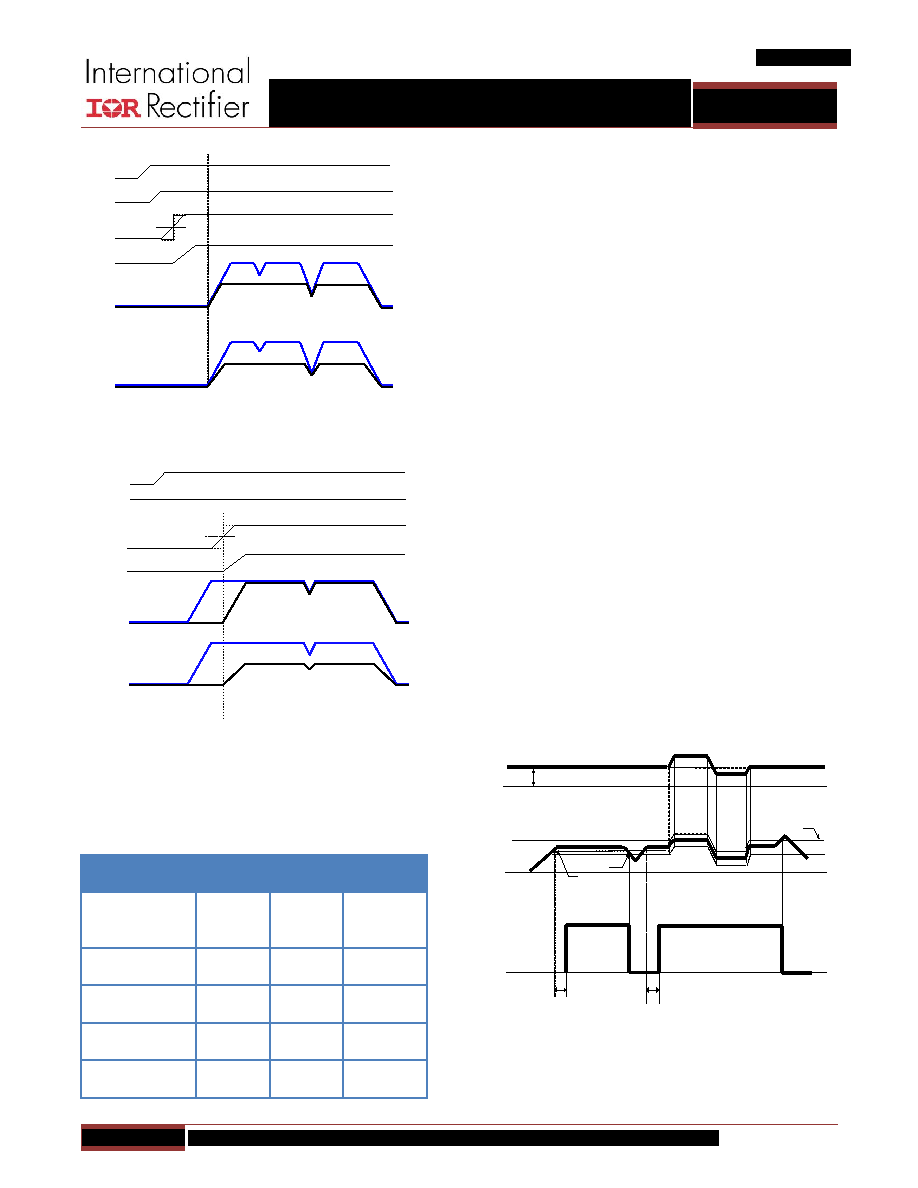

Figure 13: Typical waveforms for sequencing mode of

operation: (a) simultaneous, (b) ratiometric

Vcc

Vref=0V (slave)

1.2V

Soft Start (slave)

Enable (slave)

Vo1 (master)

Vo2 (slave)

(a)

Vo1 (master)

Vo2 (slave)

(b)

Figure 14: Typical waveforms in tracking mode of operation:

(a) simultaneous, (b) ratiometric

TABLE 2: REQUIRED CONDITIONS FOR

SIMULTANEOUS/RATIOMETRIC TRACKING AND SEQUENCING (FIG.

12)

Operating

Mode

Vref

(Slave)

Required

Condition

Normal

(Non-sequencing,

Non-tracking)

0.5V

(Floating)

Floating

―

Simultaneous

Sequencing

0.5V

Ramp up

from 0V

RA/RB>RE/

RF=RC/RD

Ratiometric

Sequencing

0.5V

Ramp up

from 0V

RA/RB>RE/

RF>RC/RD

Simultaneous

Tracking

Ramp up

before En

RE/RF

=RC/RD

Ratiometric

Tracking

Ramp up

before En

RE/RF

>RC/RD

VREF

This pin reflects the internal reference voltage which is used

by the error amplifier to set the output voltage. In most

operating conditions this pin is only connected to an external

bypass capacitor and it is left floating. A 100pF ceramic

capacitor is recommended for the bypass capacitor. To keep

stand by current to minimum, Vref is not allowed to come up

until EN starts going high. In tracking mode this pin should be

pulled to GND. For margining applications, an external voltage

source is connected to Vref pin and overrides the internal

reference voltage. The external voltage source should have a

low internal resistance (<100Ω) and be able to source and

sink more than 25µA.

POWER GOOD OUTPUT (TRACKING,

SEQUENCING, VREF MARGINING)

IR3898 continually monitors the output voltage via the sense

pin (Vsns) voltage. The Vsns voltage is an input to the window

comparator with upper and lower threshold of 0.6V and

0.45V respectively. PGood signal is high whenever Vsns

voltage is within the PGood comparator window thresholds.

The PGood pin is open drain and it needs to be externally

pulled high. High state indicates that output is in regulation.

The threshold is set differently at different operating modes

and the results of the comparison sets the PGood signal.

Figures 15, 16, and 17 show the timing diagram of the PGood

signal at different operating modes. Vsns signal is also used by

OVP comparator for detecting output over voltage condition.

Vref

PGood

Vsns

0.5 V

1.2*Vref

0.85*Vp

1.28ms

OVP

Latch

0.9*Vp

Figure 15: Non-sequence, Non-tracking Startup

and Vref Margin (Vp pin floating)
