Ramp/Soak Process Controller

E5CK--T

A--186

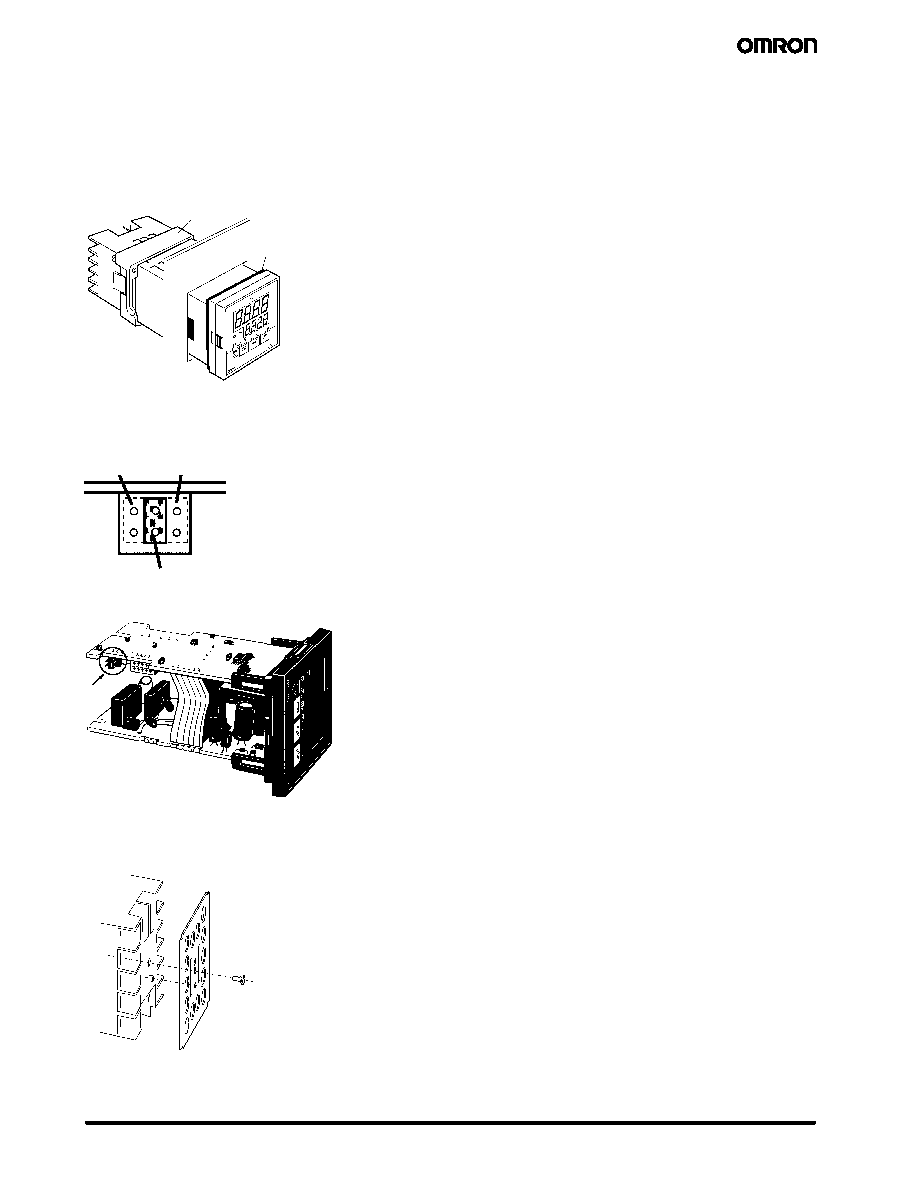

J Mounting the Controller

Note: On a standard model, set up the output boards for control outputs 1 and 2 before mounting the controller.

1.

Insert the Controller into the panel’s mounting hole at the position shown in the figure below.

2.

Push the adapter along the Controller body from the terminals up to the panel, and fasten temporarily.

3.

Tighten the two fixing screws on the adapter. When tightening screws, tighten the two screws alternately keeping the torque to

approximately 0.29 to 0.39 N S m, or 3 to 4 kgf S cm.

Adapter

Panel

Watertight packing

I: Current input

V: Voltage input

TC S PT: Temperature input

Note: Do not touch the pins of the jumper connector when setting the input type.

Note: The jumper is factory-set to TC S PT (temperature input).

Set the jumper to temperature, voltage, or current input according to the sensor connected to the input terminal.

Input Jumper Setting

After setting the jumper, put on the housing, pressing the housing until the hooks of the front panel snap on.

Terminal Cover

The E5CK-AA1-500 Controller is provided with a terminal cover E53-COV07. Fasten the terminal cover as follows by using the snap pin.
