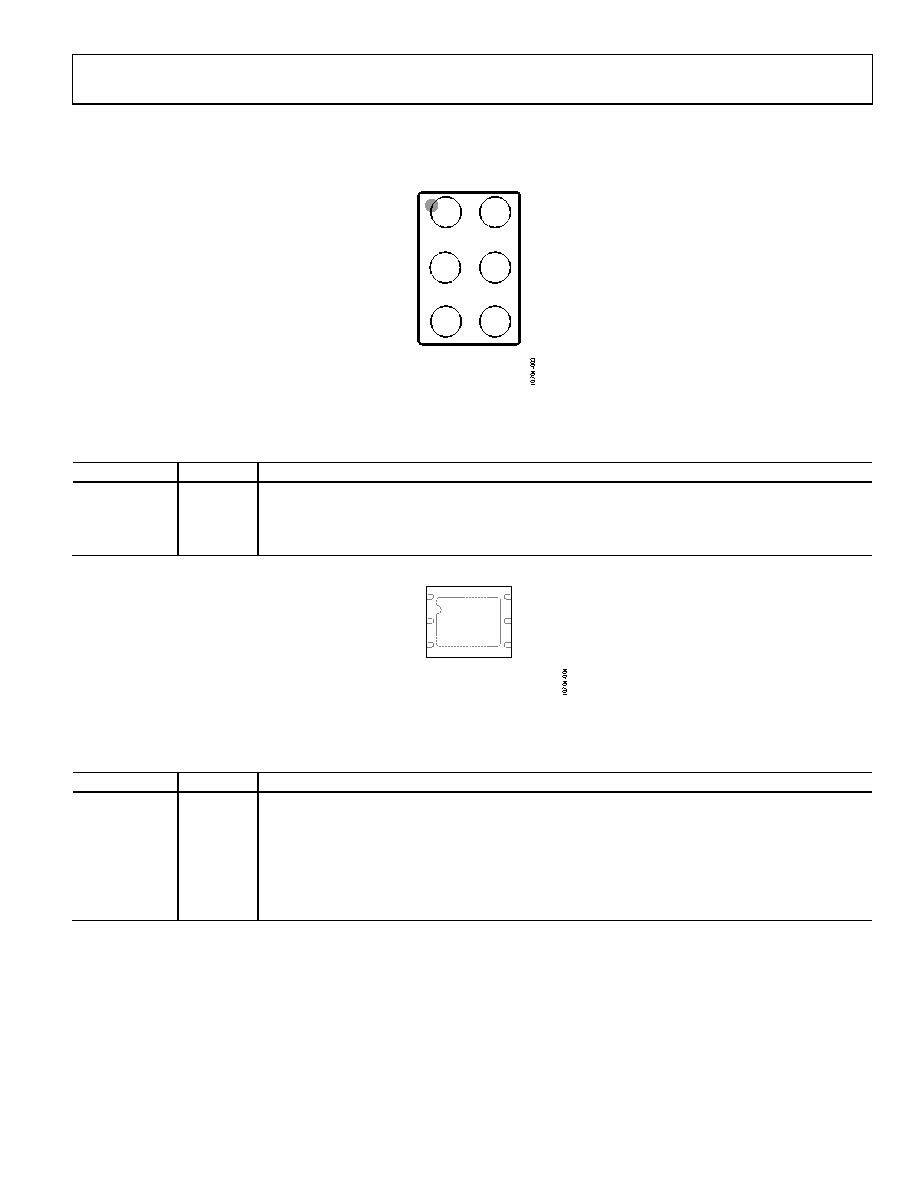

5 / 12 page ![]() Data Sheet ADP196 Rev. 0 | Page 5 of 12 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS VIN VOUT 1 2 VIN A B VOUT EN C GND TOP VIEW (Not to Scale) ADP196 Figure 3. 6-Ball WLCSP Pin Configuration Table 4. 6-Ball WLCSP Pin Function Descriptions Pin No. Mnemonic Description A1, B1 VIN Input Voltage. A2, B2 VOUT Output Voltage. C1 EN Enable Input. Drive EN high to turn on the switch, or drive EN low to turn off the switch. C2 GND Ground. 3 GND 1 VOUT1 2 VOUT2 4 EN 6 VIN1 5 VIN2 ADP196 TOP VIEW NOTES 1. EXPOSED PAD MUST BE CONNECTED TO GROUND. Figure 4. 6-Lead LFCSP Pin Configuration Table 5. 6-Lead LFCSP Pin Function Descriptions Pin No. Mnemonic Description 1 VOUT1 Output Voltage. Connect VOUT1 and VOUT2 together. 2 VOUT2 Output Voltage. Connect VOUT1 and VOUT2 together. 3 GND Ground. 4 EN Enable Input. Drive EN high to turn on the switch, or drive EN low to turn off the switch. 5 VIN2 Input Voltage. Connect VIN1 and VIN2 together. 6 VIN1 Input Voltage. Connect VIN1 and VIN2 together. EP The exposed pad must be connected to ground. |
|
|
