Data Sheet

ADP1046

Rev. 0 | Page 93 of 96

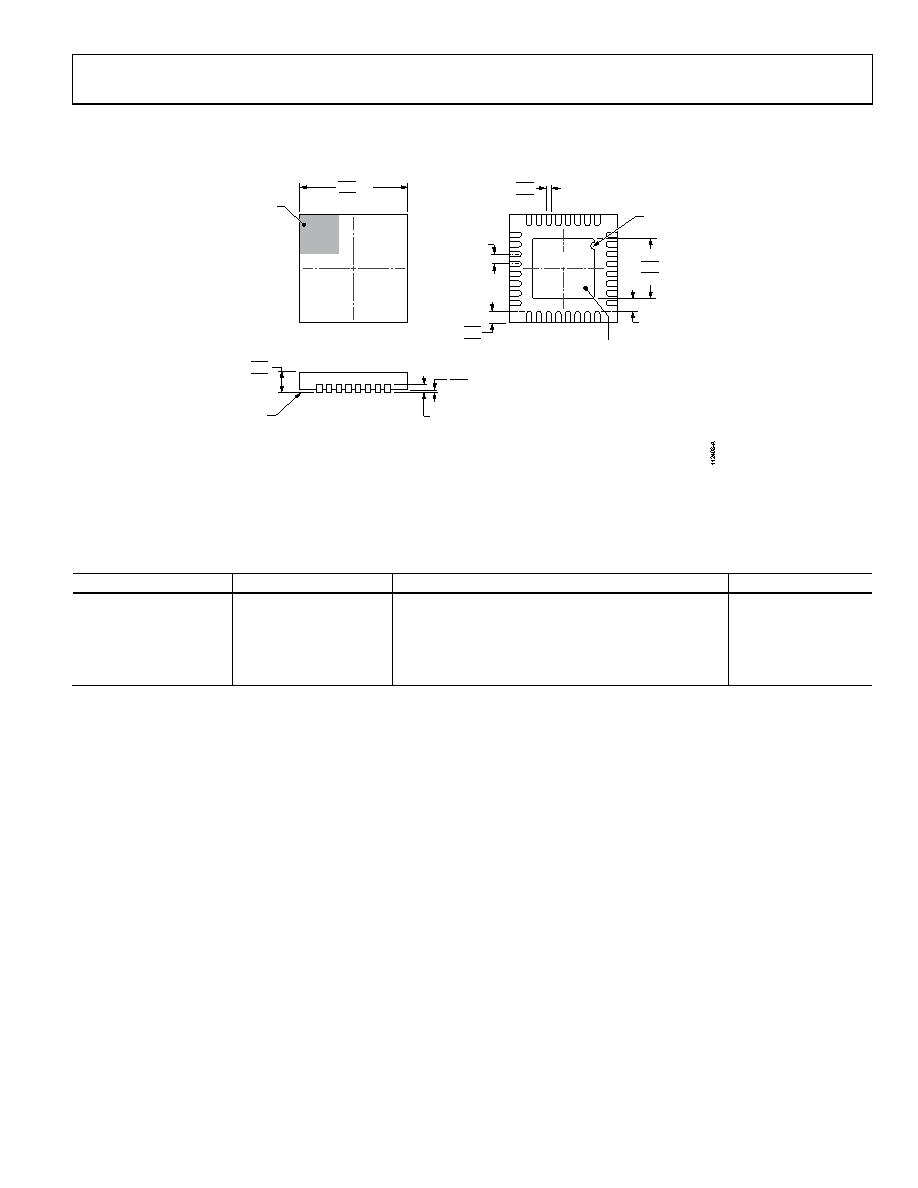

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-WHHD.

0.50

BSC

BOTTOM VIEW

TOP VIEW

PIN 1

INDICATOR

EXPOSED

PAD

PIN 1

INDICATOR

3.25

3.10 SQ

2.95

SEATING

PLANE

0.05 MAX

0.02 NOM

0.20 REF

COPLANARITY

0.08

0.30

0.25

0.18

5.10

5.00 SQ

4.90

0.80

0.75

0.70

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.50

0.40

0.30

0.25 MIN

Figure 63. 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

5 mm × 5 mm Body, Very Very Thin Quad

(CP-32-7)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADP1046ACPZ-RL

−40°C to +125°C

32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-32-7

ADP1046ACPZ-R7

−40°C to +125°C

32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-32-7

ADP1046-100-EVALZ

ADP1046 100 W Evaluation Board

ADP1046DC1-EVALZ

ADP1046 Daughter Card

ADP-I2C-USB-Z

USB to I2C Adapter

1 Z = RoHS Compliant Part.
