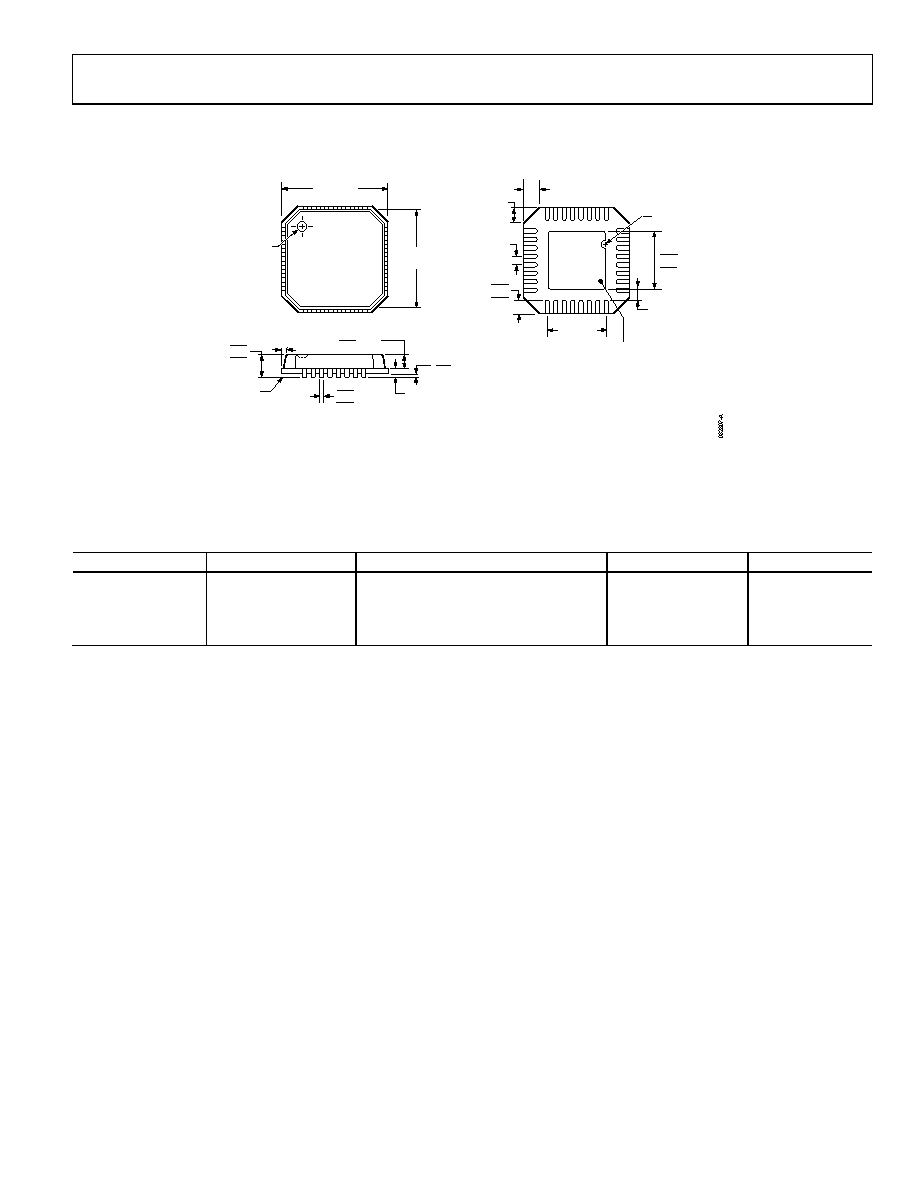

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2

2.85

2.70 SQ

2.55

TOP

VIEW

COPLANARITY

0.08

3.50 REF

0.50

BSC

PIN 1

INDICATOR

0.60 MAX

0.20 MIN

EXPOSED

PAD

(BOTTOM VIEW)

PIN 1

INDICATOR

0.30

0.25

0.18

0.20 REF

12° MAX

0.80 MAX

0.65 TYP

1.00

0.85

0.80

0.05 MAX

0.02 NOM

SEATING

PLANE

0.50

0.40

0.30

5.00

BSC SQ

4.75

BSC SQ

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 61. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

5 mm × 5 mm Body, Very Thin Quad

(CP-32-8)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Ordering Quantity

Package Option

ADL5304ACPZ-R2

−40°C to +85°C

32-Lead LFCSP_VQ

250

CP-32-8

ADL5304ACPZ-R7

−40°C to +85°C

32-Lead LFCSP_VQ, 7”Tape and Reel

1500

CP-32-8

ADL5304ACPZ-RL

−40°C to +85°C

32-Lead LFCSP_VQ, 13”Tape and Reel

5000

CP-32-8

ADL5304-EVALZ

Evaluation Board

1 Z = RoHS Compliant Part.
