Data Sheet

AD8421

Rev. 0 | Page 17 of 28

1µs/DIV

5V/DIV

0.002%/DIV

720ns TO 0.01%

1.12µs TO 0.001%

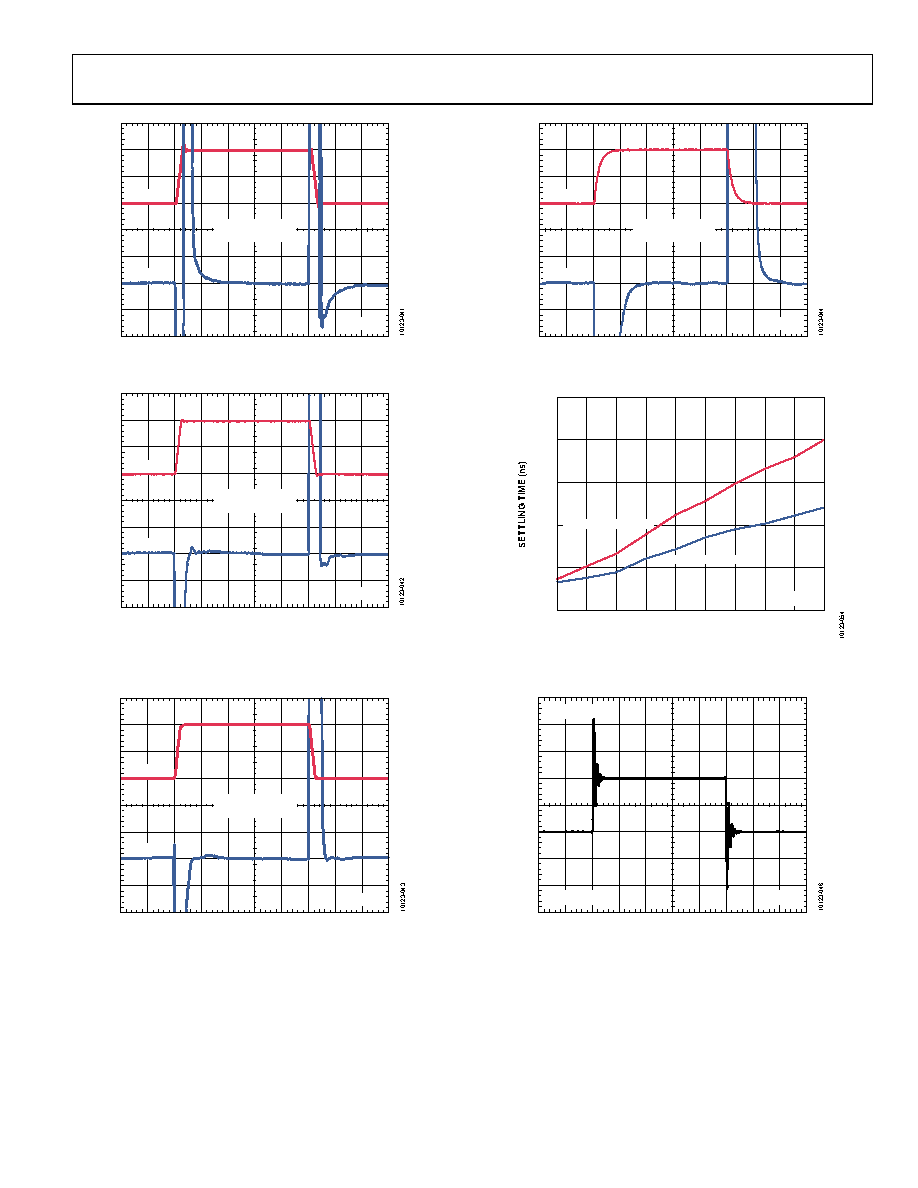

Figure 46. Large Signal Pulse Response and Settling Time (G = 1),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

1µs/DIV

5V/DIV

0.002%/DIV

420ns TO 0.01%

604ns TO 0.001%

Figure 47. Large Signal Pulse Response and Settling Time (G = 10),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

1µs/DIV

5V/DIV

0.002%/DIV

704ns TO 0.01%

764ns TO 0.001%

Figure 48. Large Signal Pulse Response and Settling Time (G = 100),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

4µs/DIV

5V/DIV

0.002%/DIV

3.8µs TO 0.01%

5.76µs TO 0.001%

Figure 49. Large Signal Pulse Response and Settling Time (G = 1000),

10 V Step, VS = ±15 V, RL = 2 kΩ, CL = 100 pF

2500

STEP SIZE (V)

500

1000

1500

2000

SETTLED TO 0.01%

SETTLED TO 0.001%

GAIN = 1

Figure 50. Settling Time vs. Step Size (G = 1), RL = 2 kΩ, CL = 100 pF

50mV/DIV

GAIN = 1

1µs/DIV

Figure 51. Small Signal Pulse Response (G = 1), RL = 600 Ω, CL = 100 pF
