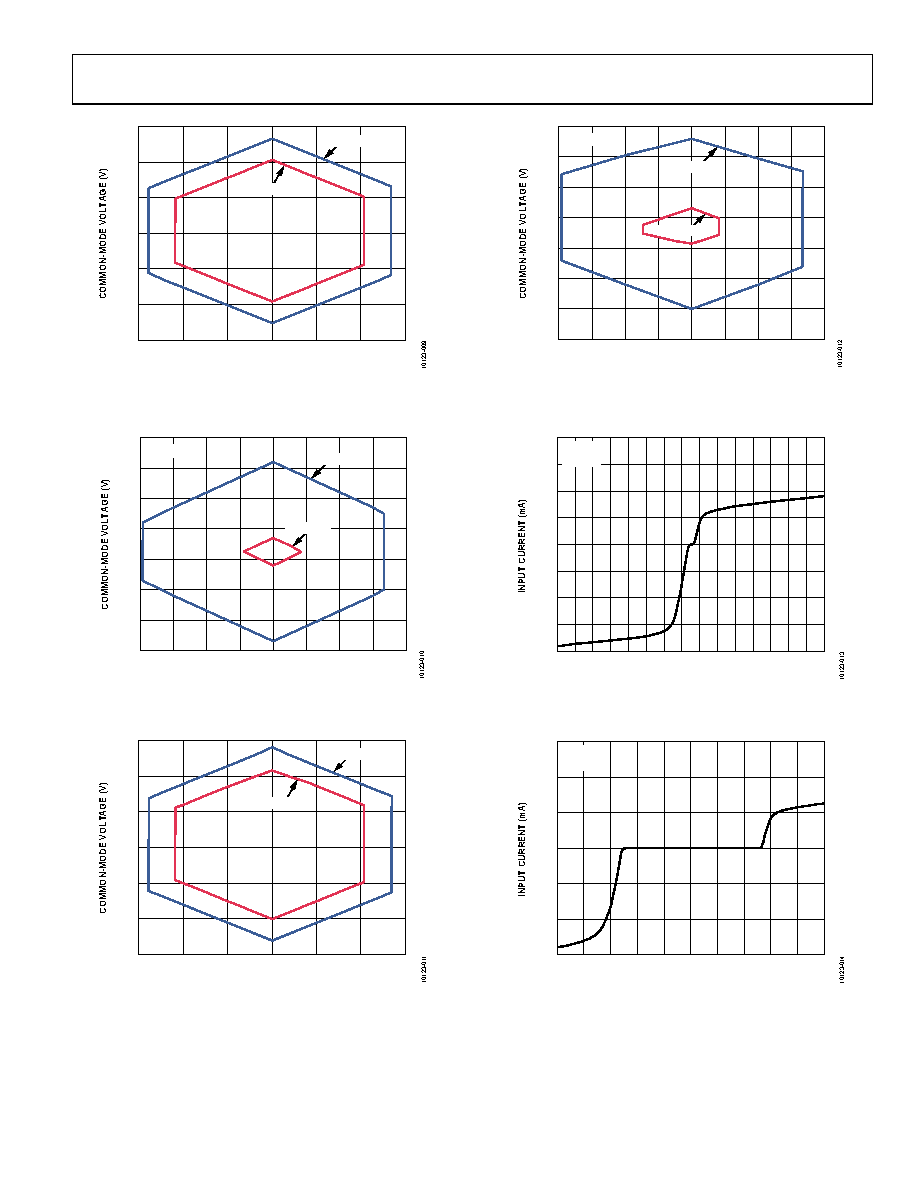

Figure 10. Input Common-Mode Voltage vs. Output Voltage;

VS = ±12 V and ±15 V (G = 1)

–3

–2

–1

–4

–3

–2

–1

OUTPUT VOLTAGE (V)

VS = ±5V

VS = ±2.5V

G = 1

Figure 11. Input Common-Mode Voltage vs. Output Voltage;

VS = ±2.5 V and ±5 V (G = 1)

–15

–10

–5

–15

–5

–10

OUTPUT VOLTAGE (V)

VS = ±15V

VS = ±12V

G = 100

Figure 12. Input Common-Mode Voltage vs. Output Voltage;

VS = ±12 V and ±15 V (G = 100)

–3

–2

–1

–4

–3

–2

–1

OUTPUT VOLTAGE (V)

VS = ±5V

VS = ±2.5V

G = 100

Figure 13. Input Common-Mode Voltage vs. Output Voltage;

VS = ±2.5 V and ±5 V (G = 100)

–40

–35

INPUT VOLTAGE (V)

–30

–20

–10

–30 –25 –20 –15 –10 –5

101520253035

VS = 5V

G = 1

Figure 14. Input Overvoltage Performance; G = 1, +VS = 5 V, −VS = 0 V

–30

–25

INPUT VOLTAGE (V)

–20

–10

–20

–15

–10

–5

VS = ±15V

G = 1

Figure 15. Input Overvoltage Performance; G = 1, VS = ±15 V
