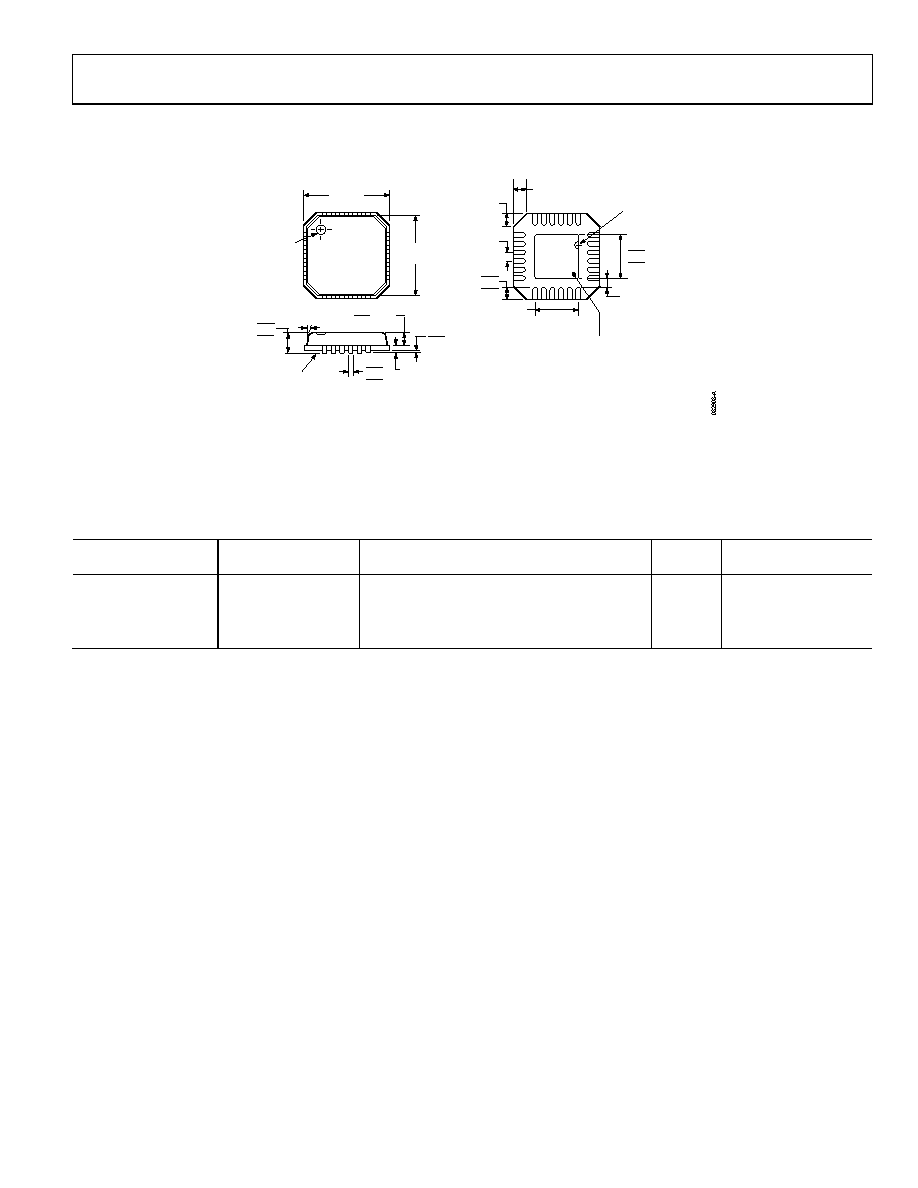

ADL5380

Rev. 0 | Page 35 of 36

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-VGGD-8

2.65

2.50 SQ

2.35

0.60 MAX

0.50

0.40

0.30

0.23

0.18

2.50 REF

0.50

BSC

12° MAX

0.80 MAX

0.65 TYP

0.05 MAX

0.02 NOM

1.00

0.85

0.80

SEATING

PLANE

PIN 1

INDICATOR

TOP

VIEW

3.75

BSC SQ

4.00

BSC SQ

PIN 1

INDICATOR

0.60 MAX

COPLANARITY

0.08

0.20 REF

0.23 MIN

EXPOSED

PAD

(BOTTOMVIEW)

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 104. 24-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

4 mm × 4 mm Body, Very Thin Quad

(CP-24-3)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package

Option

Ordering Quantity

ADL5380ACPZ-R71

–40°C to +85°C

24-Lead LFCSP_VQ

CP-24-3

1,500, 7”Tape and Reel

ADL5380ACPZ-WP1

–40°C to +85°C

24-Lead LFCSP_VQ

CP-24-3

64, Waffle Pack

ADL5380-29A-EVALZ1

Mid Band (3 GHz to 4 GHz) Evaluation Board

ADL5380-30A-EVALZ1

Low Band (400 MHz to 3 GHz) Evaluation Board

1 Z = RoHS Compliant Part.
