Section 8 Data Transfer Controller (DTC)

Rev.1.00 Jun. 07, 2006 Page 412 of 1102

REJ09B0294-0100

Clock

Address

DTC activation

request

DTC request

Clock

Address

DTC activation

request

DTC request

Clock

Address

DTC activation

request

DTC request

[Example 1: When an odd address and even address are specified in SAR and DAR, respectively, and when the data size of transfer is specified as word]

[Example 2: When an odd address and address 4n are specified in SAR and DAR, respectively, and when the data size of transfer is specified as longword]

[Example 3: When address 4n + 2 and address 4n are specified in SAR and DAR, respectively, and when the data size of transfer is specified as longword]

Vector read

Transfer information

read

Data transfer Transfer information

write

Vector read

Transfer information

read

Data transfer Transfer information

write

Vector read

Transfer information

read

Data transfer

Transfer information

write

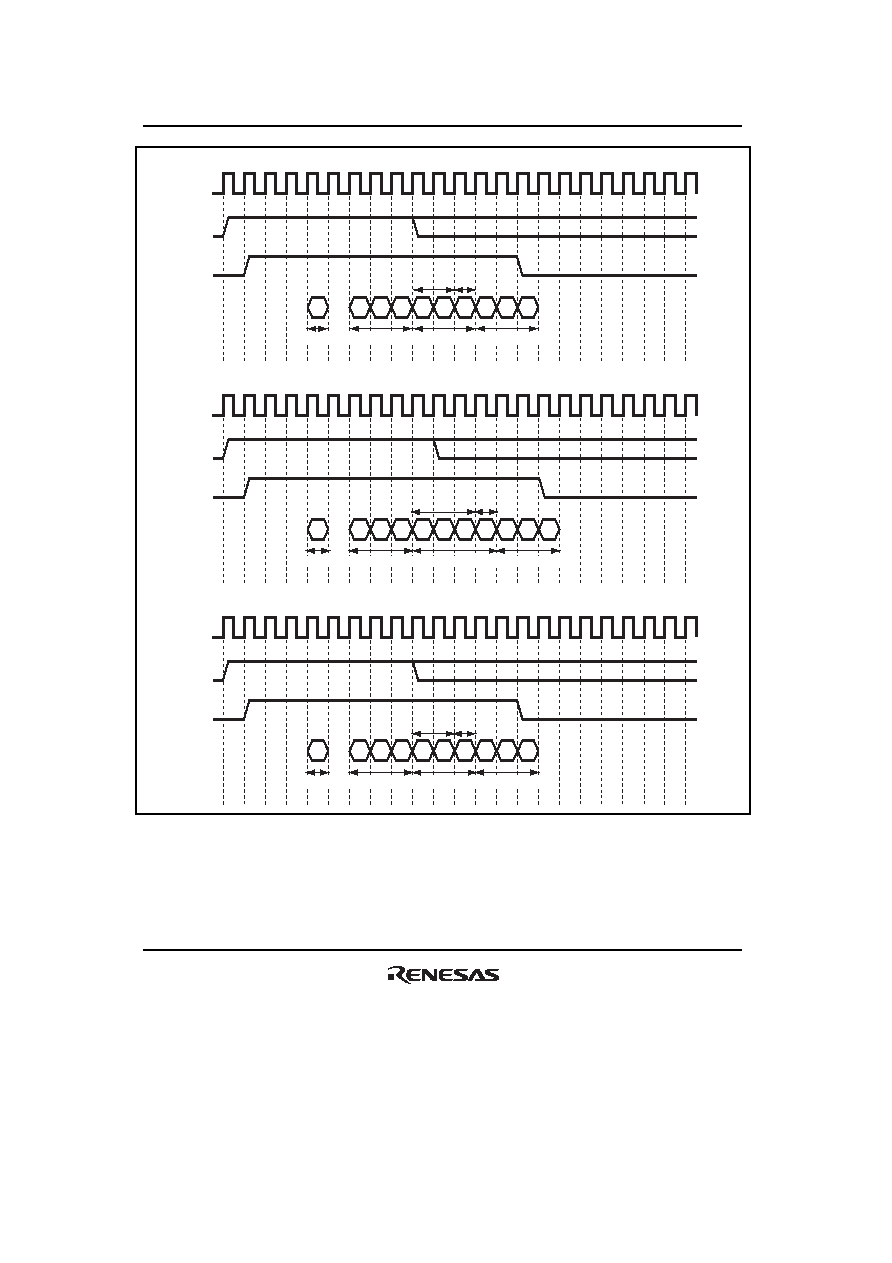

Figure 8.5 Bus Cycle Division Example
