STCF01 datasheet(1/16 Pages) STMICROELECTRONICS

tên linh kiện	STCF01

Giải thích chi tiết về linh kiện	Step-up converter for cell phone camera flash LEDs

PDF	16 Pages

Scroll/Zoom	100%

nhà sản xuất	STMICROELECTRONICS [STMicroelectronics]

Trang chủ	http://www.st.com

Logo

1 / 16 page

October 2006

Rev. 4

1/16

16

STCF01

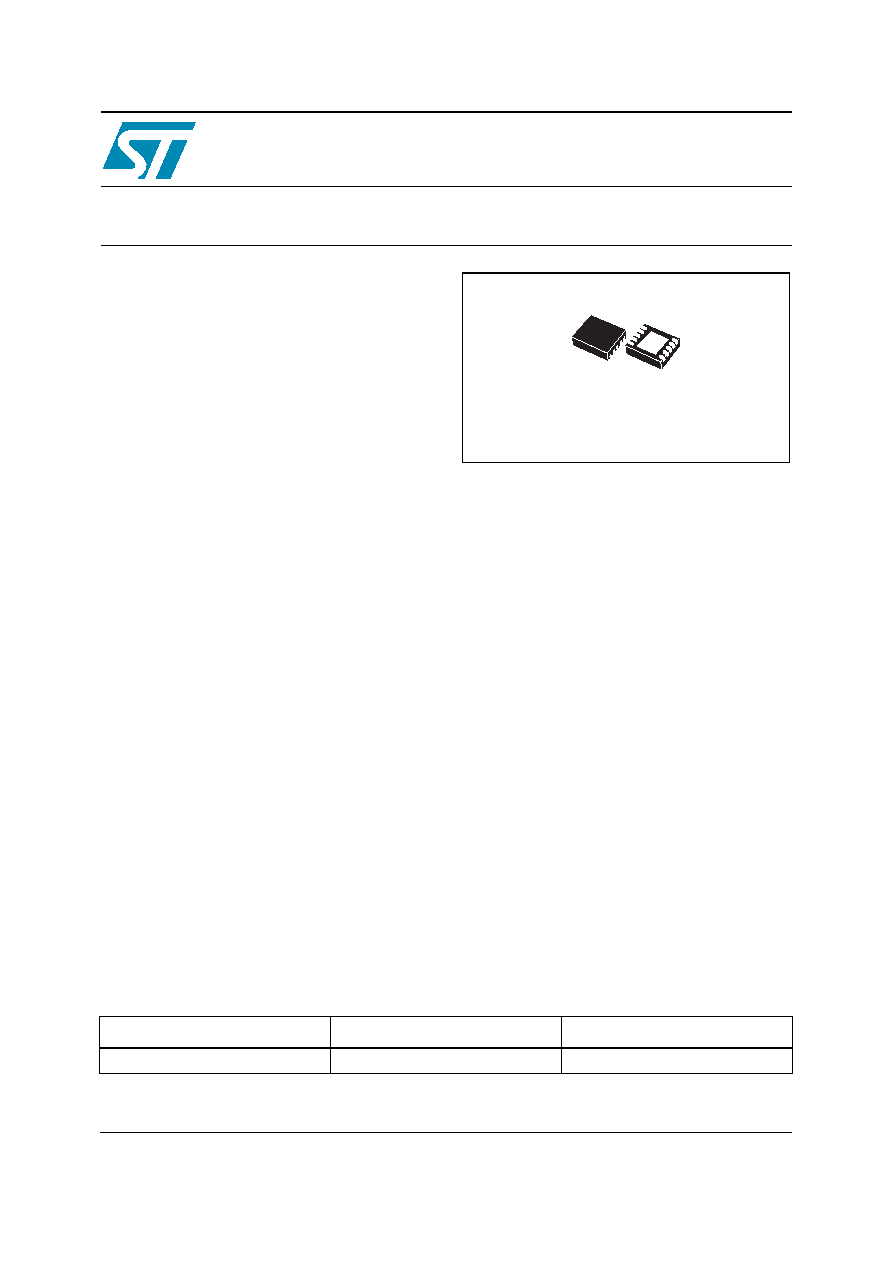

Step-up converter for cell phone camera flash LEDs

General features

■ Supply voltage range: 2.6V to 5.5V

■ 17V Maximum output voltage

■ Two current levels up to 300mA set with

external resistors

■ Dedicated pin to select the required level of

current

■ Operating frequency: 1.5MHz: PWM Controller

■ Torch mode supported

■ Shutdown pin with true load disconnection

■ Efficiency: 90% at 100mA; 80% at 300mA

■ DFN10L (3mm x 3mm) Package

Description

The STCF01 is a dedicated IC designed to drive

two, three, or four white, cell phone camera flash

LEDs with constant current. The step-up (boost)

converter input is connected directly to the battery,

and its converter output voltage is automatically

determined using current feedback-based duty

cycle control.

The STCF01 has a dedicated pin for two levels of

LED current selection. An external resistor is used

to set the required current for each level.

Compared to the linear current control technique,

this method allows designers to achieve the best

and most efficient performance possible with the

selected current, thereby avoiding linear element

losses.

The Shutdown (SHDN) pin saves power when the

camera flash is not used by consuming less than

0.1µA of current. When the SHDN pin is high

(logic '1'), the device is turned OFF and there is no

DC current path from the supply to the white LEDs

(Load Disconnect). If it is held to GND, the output

current continuously flows through the LEDs

(Torch mode). The SHDN pin, when it is set to low

(logic '0'), is also used to set the flash function

time duration.

www.st.com

DFN10L (3x3)

Order code

Part number

Package

Packaging

STCF01PMR

DFN10L (3mm x 3mm)

4500 parts per reel
