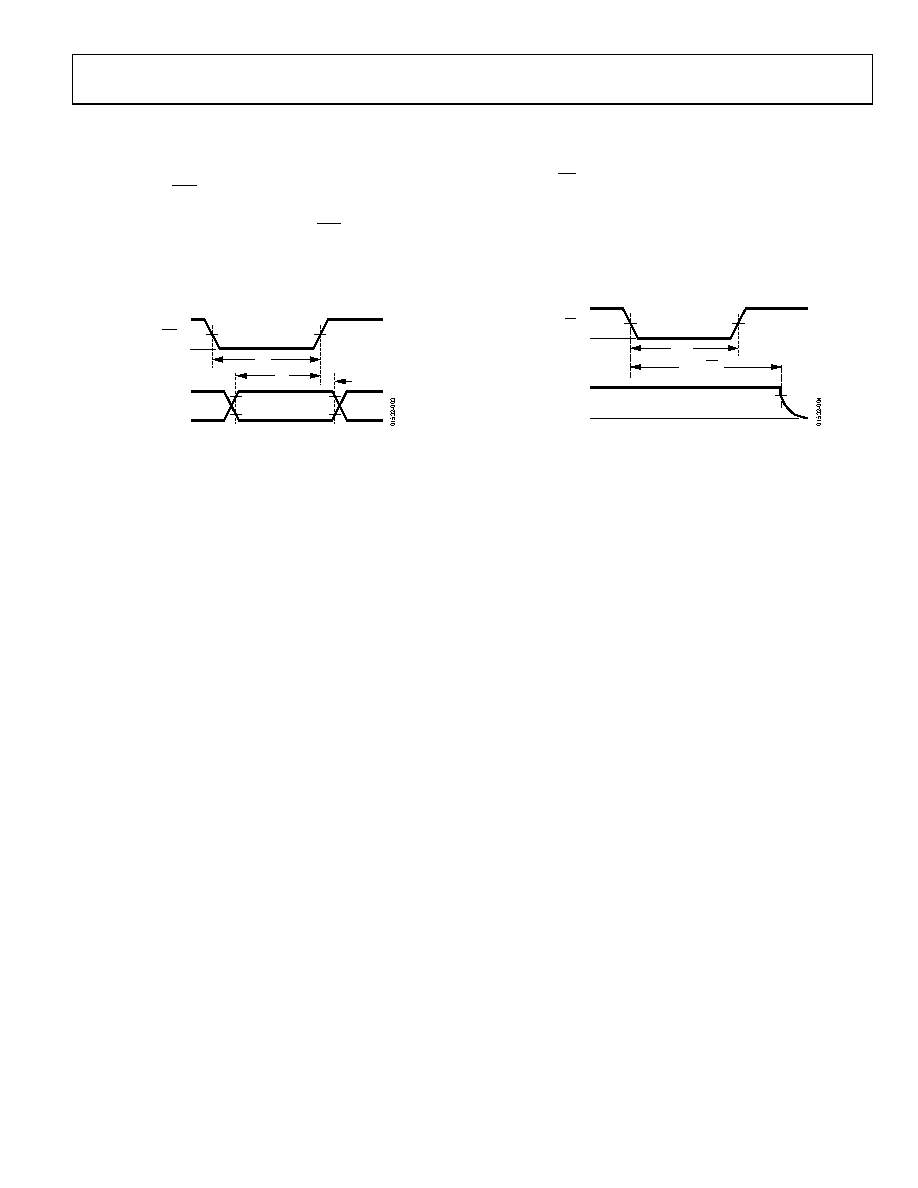

13 / 20 page ![]() ADG526A/ADG527A Rev. C | Page 13 of 20 TIMING Figure 13 shows the timing sequence for latching the switch address and enable inputs. The latches are level sensitive; therefore, while WR is held low, the latches are transparent and the switches respond to the address and enable inputs. This input data is latched on the rising edge of WR. 3V 0V 3V 0V WR EN, A0, A1, A2, (A3) 1.5V 2.0V 0.8V tW tS tH Figure 13. Timing Sequence Figure 14 shows the reset pulse width, tRS, and reset turn-off time, tOFF (RS). Note that all digital input signal rise and fall times are measured from 10% to 90% of 3 V, tR = tF = 20 ns. tRS tOFF (RS) 3V 0V VO 0V RS 0.8V 1.5V SWITCH OUTPUT Figure 14. Reset Pulse |
|
|
