IS25LE512M

IS25WE512M

Integrated Silicon Solution, Inc.- www.issi.com

Rev. A6

06/16/2025

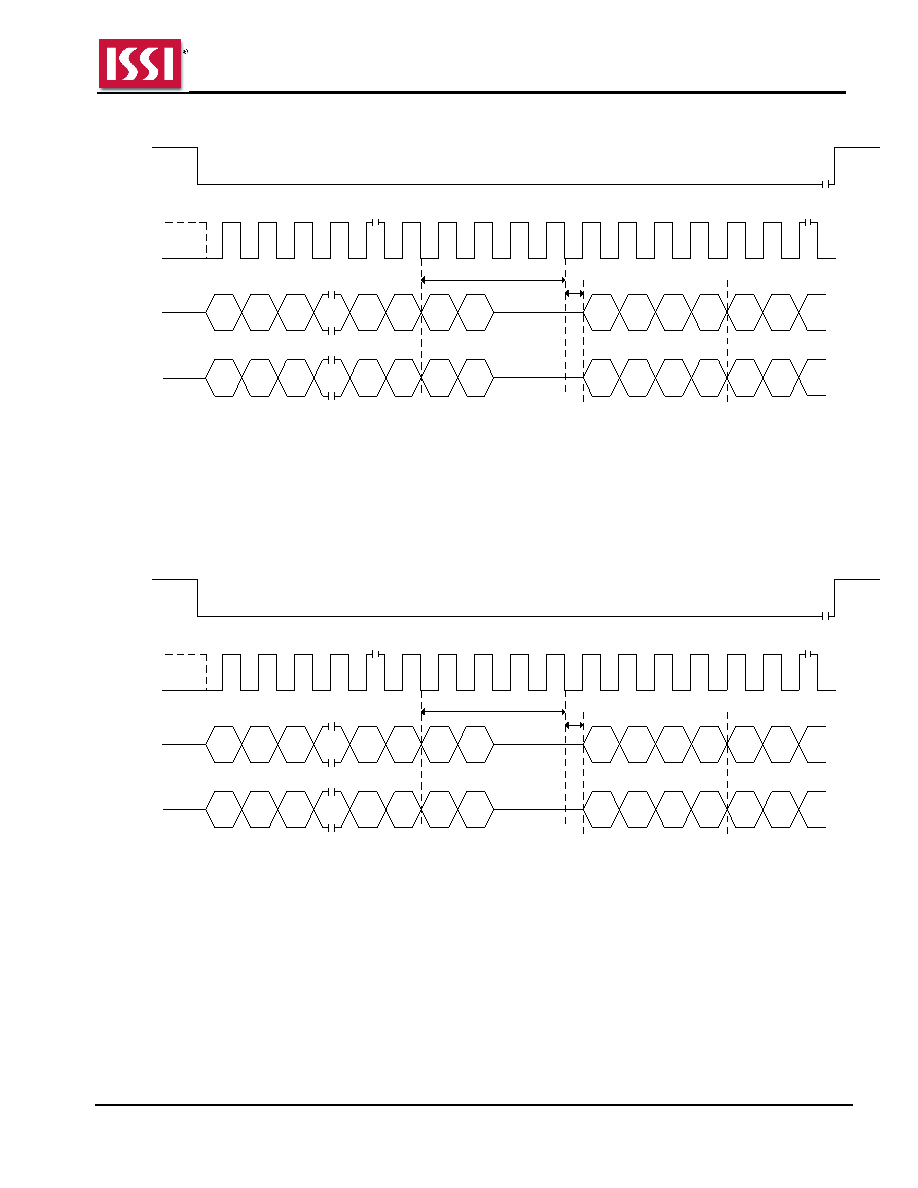

Figure 8.9 Fast Read Dual I/O AX Read Sequence (BBh [EXTADD=0], 3-byte address)

CE #

SCK

3-byte Address

...

Mode 3

Mode 0

...

IO0

IO1

4 Dummy Cycles

Data Out 1

Mode Bits

...

Data Out 2

...

Notes:

If the mode bits=AXh (where X is don’t care), it will keep executing the AX read mode (without command). When the

mode bits are different from AXh, the device exits the AX read operation.

2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles.

3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bits cycles

are same, then X should be Hi-Z.

Figure 8.10 Fast Read Dual I/O AX Read Sequence (BBh [EXTADD=1] or BCh, 4-byte address)

CE #

SCK

4-byte Address

...

Mode 3

Mode 0

...

IO0

IO1

4 Dummy Cycles

Data Out 1

Mode Bits

...

Data Out 2

...

Notes:

1. If the mode

bits=AXh (where X is don’t care), it will keep executing the AX read mode (without command). When the

mode bits are different from AXh, the device exits the AX read operation.

2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles.

3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bits cycles

are same, then X should be Hi-Z.
