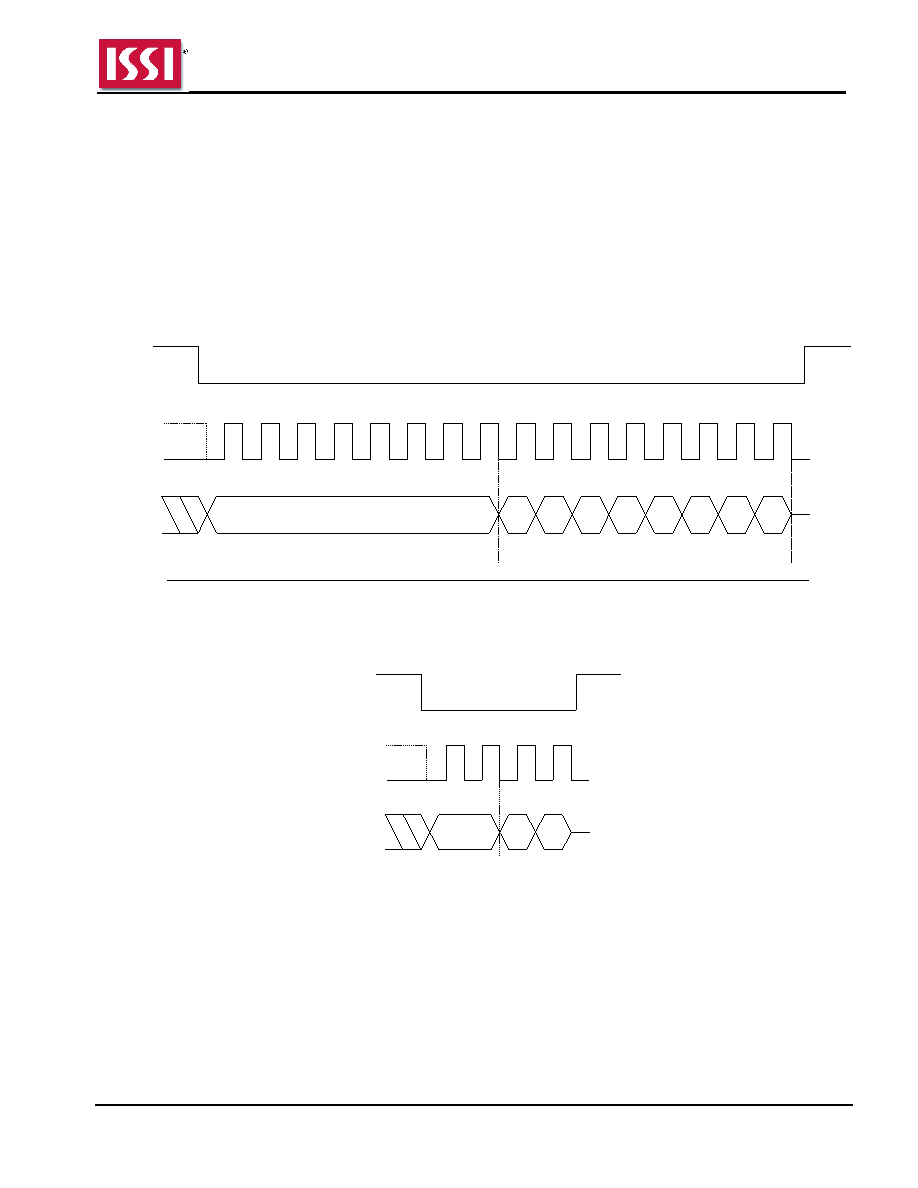

172 / 189 page ![]() IS25LE512M IS25WE512M Integrated Silicon Solution, Inc.- www.issi.com 172 Rev. A6 06/16/2025 8.69 WRITE ECC REGISTER OPERATION (WRECC, B5h) Before the Write ECC Register (WRECC) command can be accepted by the device, a Write Enable (WREN) command must be issued and decoded by the device. After the Write Enable (WREN) command has been decoded successfully, the device will set the Write Enable Latch (WEL) to enable the WRECC operation. The WRECC command (B5h) is entered by shifting the instruction and data byte on SI. CE# must be driven to the logic high state after the eighth (8th) bit of data has been latched. If not, the WRECC command is not executed. As soon as CE# is driven to the logic high state, the WRECC operation is initiated with no delays. Figure 8.150 WRECC Sequence In SPI Mode Instruction = B5h CE # SCK SI SO Data In 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Mode 3 Mode 0 7 3 2 1 0 6 5 4 High Impedence Figure 8.151 WRECC Sequence In QPI Mode B5h 0 1 Mode 3 Mode 0 2 3 7:4 3:0 CE# SCK IO[3:0] Data In |
|
