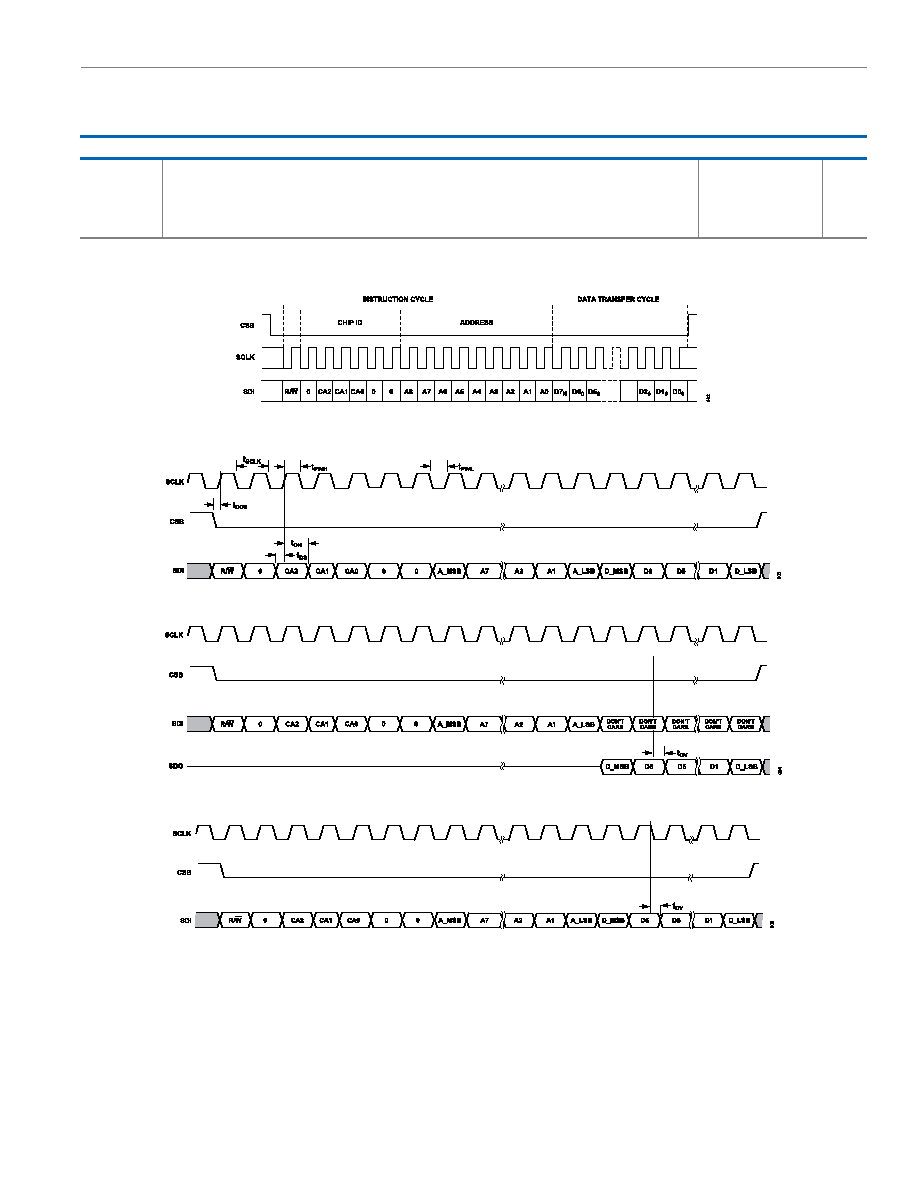

9 / 54 page ![]() Data Sheet ADL6331 SPECIFICATIONS analog.com Rev. B | 9 of 54 Table 3. SPI Timing Specifications (Continued) Parameter Description Min Typ Max Unit tDS Setup time between data and rising edge of SCLK 10 ns tDH Hold time between data and rising edge of SCLK 5 ns tDCS Setup time between falling edge of CSB and SCLK 10 ns tDV Maximum time delay between falling edge of SCLK and output data valid for a read operation 10 ns SPI Timing Diagrams Figure 2. SPI Register Timing, MSB First Figure 3. Timing Diagram for the SPI Register Write (3- and 4-Wire SPI Mode) Figure 4. Timing Diagram for SPI Register Read (4-Wire SPI Mode) Figure 5. Timing Diagram for SPI Register Read (3-Wire SPI Mode, SDIO Pin Is Bidirectional Mode, Input (Write) and Output (Read)) |
|
