Data Sheet
ADA4352-2
analog.com
Rev 0
20 of 47

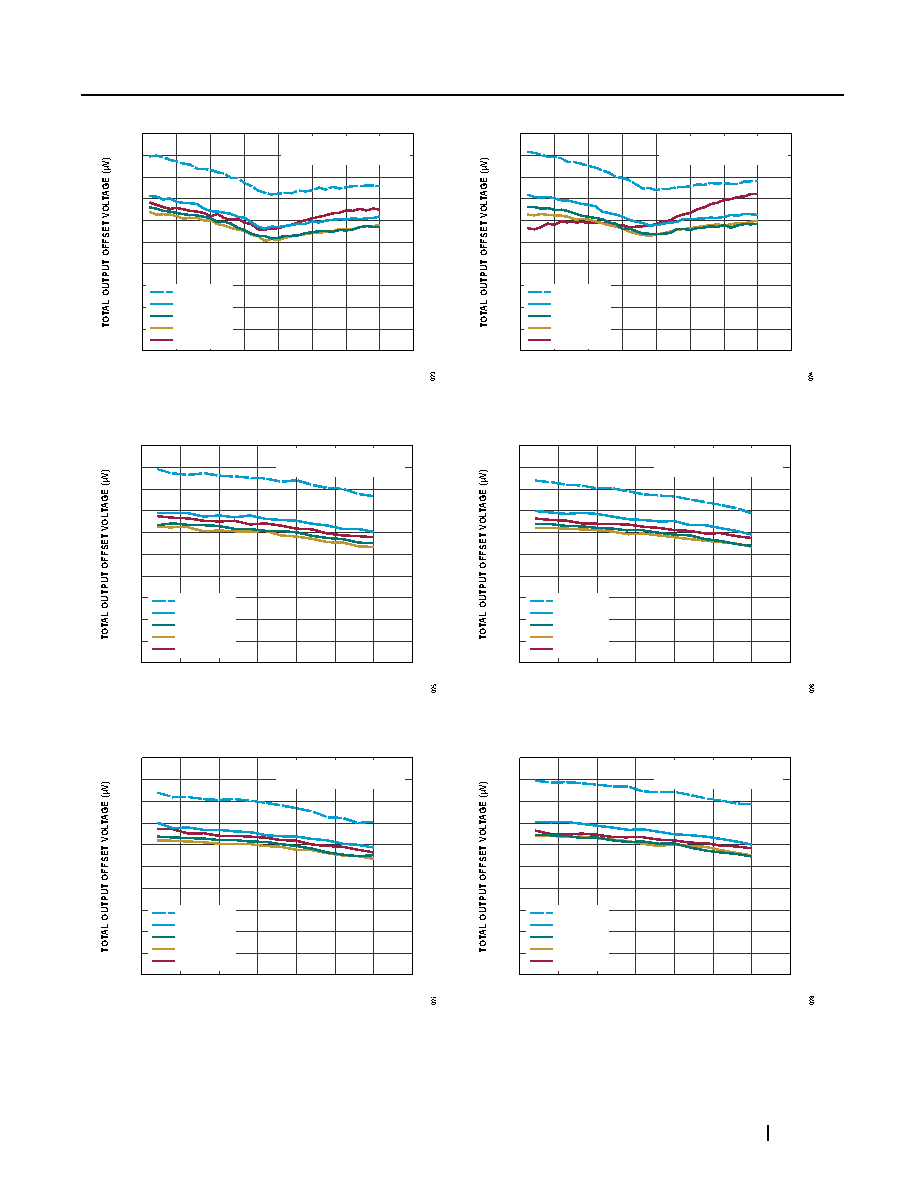

Figure 23. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF2= 40.2 kΩ,
AVDD = +2.5 V, AVSS = −2.5 V
Figure 24. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF3= 450 kΩ,
AVDD = +2.5 V, AVSS = −2.5 V
Figure 25. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF0= 350 Ω,
AVDD = +1.5 V, AVSS = −1.5 V
Figure 26. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF1= 3.5 kΩ,
AVDD = +1.5 V, AVSS = −1.5 V
Figure 27. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF2= 40.2 kΩ,
AVDD = +1.5 V, AVSS = −1.5 V
Figure 28. Total Output Offset Voltage vs. Common-Mode
Voltage at Various Temperatures, RF3= 450 kΩ,
AVDD = +1.5 V, AVSS = −1.5 V
AVDD = +2.5V, AVSS = –2.5V
RF2 = 40.2kΩ
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
–150
–120
–90
–60
–30
0
30
60
90
120
150
AVDD = +2.5V, AVSS = –2.5V
RF3 = 450kΩ
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–2.5
–2.0
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
–150
–120
–90
–60
–30
0
30
60
90
120
150
AVDD = +1.5V, AVSS = –1.5V
RF0 = 315Ω
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–1.50
–1.25
–1.00
–0.75
–0.50
–0.25
0
0.25
–150
–120
–90
–60
–30
0
30
60
90
120
150
AVDD = +1.5V, AVSS = –1.5V
RF1 = 3.5kΩ
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–1.50
–1.25
–1.00
–0.75
–0.50
–0.25
0
0.25
–150
–120
–90
–60
–30
0
30
60
90
120
150
AVDD = +1.5V, AVSS = –1.5V
RF2 = 40.2kΩ
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–1.50
–1.25
–1.00
–0.75
–0.50
–0.25
0
0.25
–150
–120
–90
–60
–30
0
30
60
90
120
150
AVDD = +1.5V, AVSS = –1.5V
RF3 = 450kΩ
TA = –40°C
TA = 0°C
TA = +25°C
TA = +85°C
TA = +125°C
COMMON-MODE VOLTAGE (V)
–1.50
–1.25
–1.00
–0.75
–0.50
–0.25
0
0.25
–150
–120
–90
–60
–30
0
30
60
90
120
150
