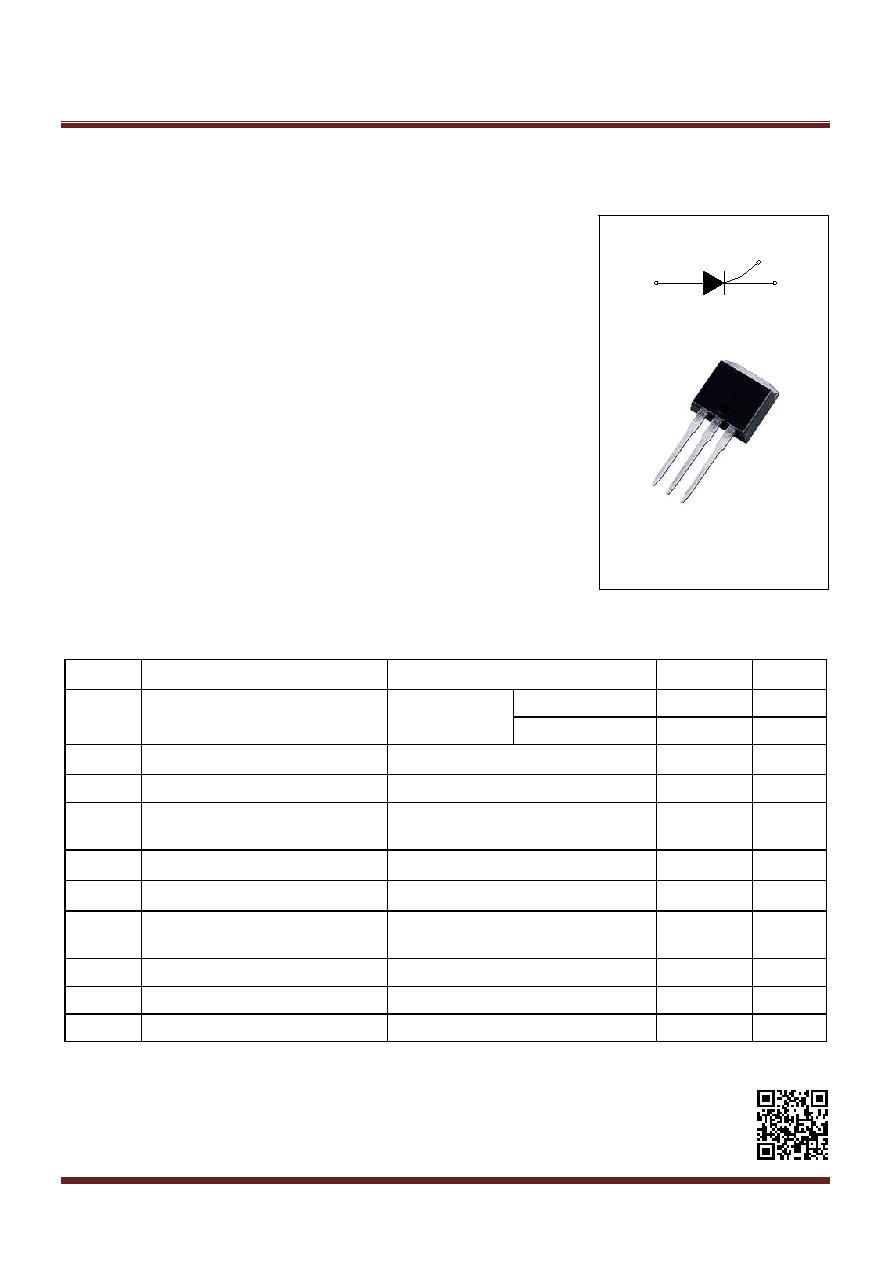

ADT12A60I/80I

1 / 6

www.advsemi.com

Feb,2015 -Rev.3.05

ADV

Symbol

Items

Conditions

Ratings

Unit

VDRM

Repetitive Peak Off-State Voltage

Tj=25°C

ADT12A60I

600

V

VRRM

Repetitive peak reverse voltage

ADT12A80I

800

V

IT(AV)

Average On-State Current

Half Sine Wave , Tc = 110°C

10

A

IT(RMS)

R.M.S On-State Current

Half Sine Wave , Tc = 110°C

12

A

ITSM

Surge On-State Current

1/2 Cycle, Sine Wave Non-Repetitive,

tp=10ms(50Hz)Tj =25°C

190

A

I

2t

I

2t for Fusing

Tj =25°C,tp =10ms

98

A

2S

PGM

Forward Peak Gate Power Dissipation

Tj =125°C, Pulse Width ≤ 20㎲

5

W

PG(AV)

Forward Average Gate Power

Dissipation

Tj =25°C, tp =10ms

1

W

IGM

Peak Gate Current

Tj =125°C, Pulse Width ≤ 20㎲

4

A

Tj

Operating Junction Temperature

- 40 ~ 125

°C

TSTG

Storage Temperature

- 40 ~ 150

°C

SCRs

General Description

Available either in sensitive or standard gate triggering levels, the 12A

SCR series is suitable to fit all modes of control found inapplications

such as overvoltage crowbar protection, motor control circuits in power

tools and kitchen aids, in-rush current limiting circuits,capacitive discharge

ignition, voltage regulation circuits...

Features

◆

Repetitive Peak Off-State Voltage : 600V and 800V

◆

R.M.S On-State Current ( IT(RMS)= 12 A )

◆

These are Pb-Free Devices

Absolute Maximum Ratings

Scan the QR code to view the latest product information

ADV

TO-262

2.A

1.K

3.G

1

3

2
