RF Coaxial Connectors

Assembly Instructions

AI-129, AI-286 & AI-696

SSMB/SSMC Right Angle Connectors, Crimp Type for Braided Cable

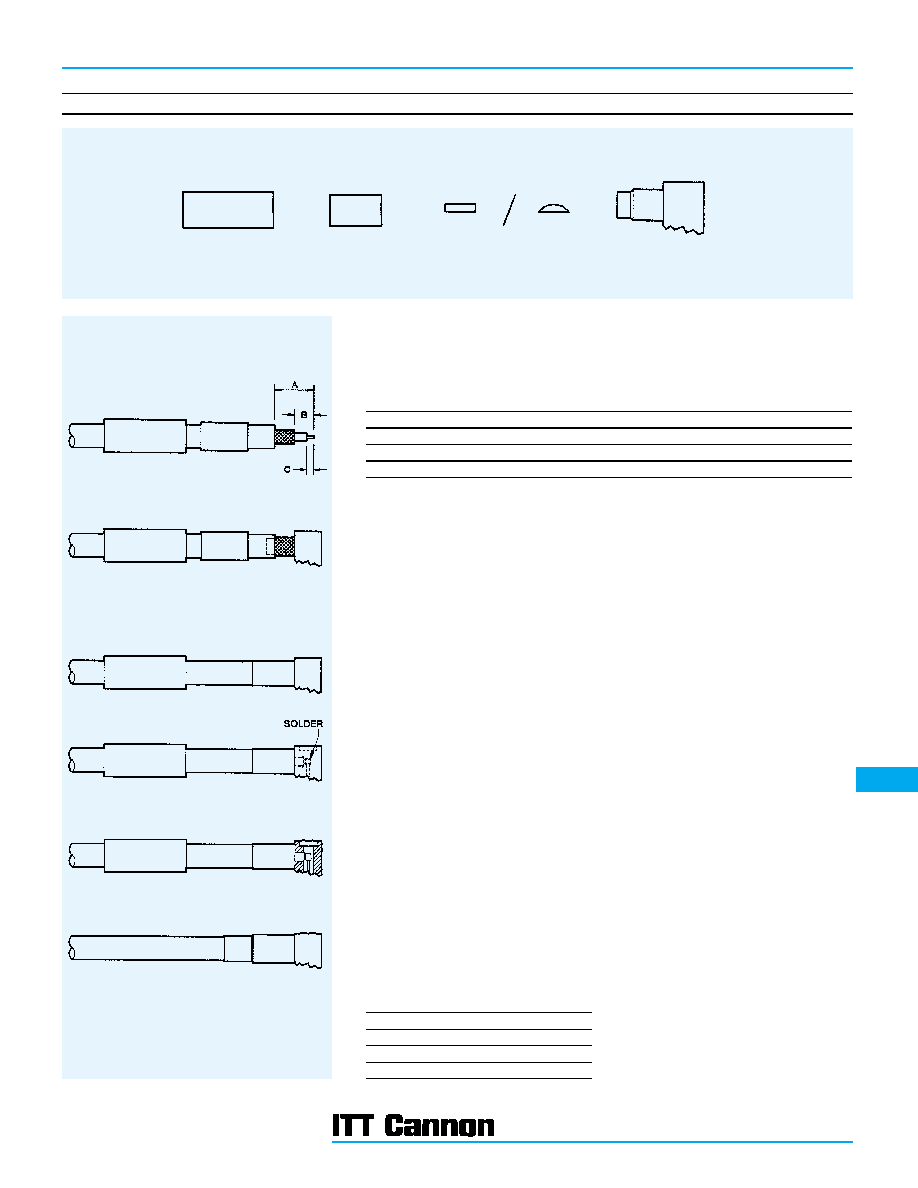

1. Slide heat shrinkable tubing and ferrule on to cable.

2. Trim cable to dimensions shown.

HEAT

SHRINKABLE

TUBING

CRIMP

FERRULE

INSERT OR CAP

REAR BODY

Assembly Instruction No.

AI-129

5,56 (.219)

2,77 (.109)

1,19 (.047)

AI-286

6,35 (.250)

2,77 (.109)

0,79 (.031)

AI-696

6,22 (.245)

2,54 (.100)

1,14 (.045)

3. Tin center conductor (DO NOT OVER TIN).

4. Slide body over cable dielectric and under the braid until braid is flush against under-side of rear

body. Ensure center conductor is located in the forked end of the contact.

NOTE. When using cables with inflexible jackets it is permissible to make two 3,00 (.118)

longitudinal slits in the outer jacket.

5. Slide ferrule flush against the body and crimp in position using ITT Cannon Crimp Tool and suitable

die set (see table).

6. Using a small soldering iron solder center conduct to contact.

NOTE: The center conductor should not protrude beyond the contact or touch the body. Solder

should not protrude beyond the slotted section of the contact.

7. Press insert into place or locate the cap in rear of body and dimple or lightly punch to ensure it is

locked in position (recommended tool, flat pin

X3,07 ± 0,05 (.121 ± .002).

8. Slide heat shrinkable tubing over ferrule flush against body and heat until tubing shrinks down.

Only common cable retention features are shown in detail. Various body configurations can apply.

Cable Type

Cable Code

Die Size

RG196/U

3196

2,67 (.105)

RG316/U

3188

3,25 (.128)

RD316

3875

3,84 (.151)
