Data Sheet

ADL5507

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 14 of 34

VPOS = 3.3 V, ENBL = 3.3 V for positive slope mode, ENBL = VPOS/2 for negative slope mode, TA = +25°C (black), +85°C (red), +105°C

(gold), and −40°C (blue) where applicable. CFLT = open, unless otherwise noted. Input RF signal is a sine wave (CW), unless otherwise

indicated. Power referenced to 50 Ω source and with a 51 Ω shunt matching resistor on the board. Measured with 6 dB attenuator pad between

RF signal source output and test board input. Distribution plots based upon more than 30 devices.

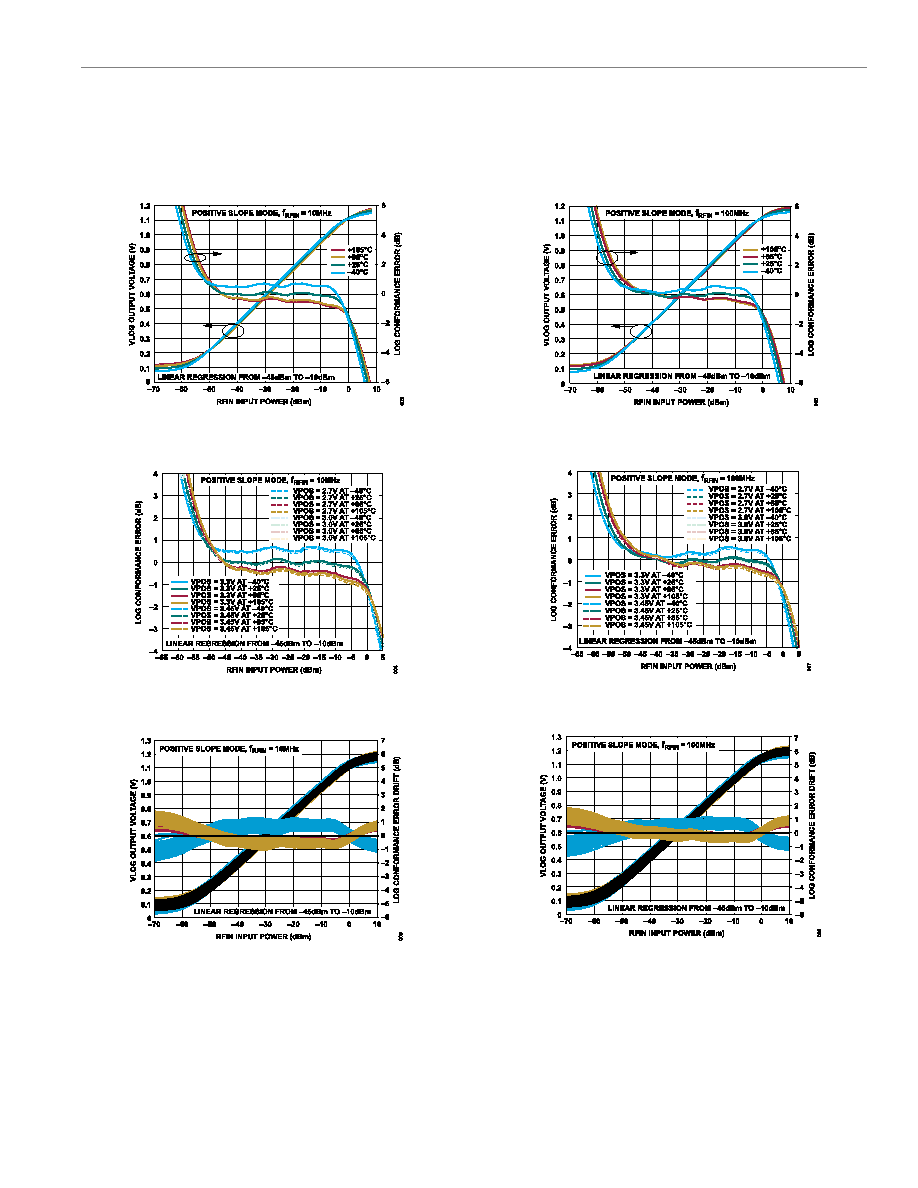

Figure 3. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at 10

MHz, Positive Slope Mode

Figure 4. Log Conformance Error vs. PRFIN Over Temperature and VPOS at 10

MHz, Positive Slope Mode

Figure 5. Distribution of VVLOG and Log Conformance Error Drift with

Respect to 25°C vs. PRFIN at 10 MHz, Positive Slope Mode

Figure 6. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at

100 MHz, Positive Slope Mode

Figure 7. Log Conformance Error vs. PRFIN Over Temperature and VPOS at

100 MHz, Positive Slope Mode

Figure 8. Distribution of VVLOG and Log Conformance Error Drift with

Respect to 25°C vs. PRFIN at 100 MHz, Positive Slope Mode
