AT25LSD datasheet(42/60 Pages) KNOWLES

42 / 60 page

www.knowlescapacitors.com

.12

.16 DIA

1” MIN

.020 ± .005

.125 ± .005 DIA

ADJUSTMENT CAVITY

.31 DIA

C DIA

#2-72

TH’D

#24 AWG

#20 AWG

.281

.234

#64 (.036 DIA)

4 HOLES

.31 DIA

.234

#64 (.036 DIA)

4 HOLES

.31 DIA

Fig. 1

Fig. 2

.25 DIA

Fig. 3

Fig. 4

Notes:

1. All Fig. 2 thru Fig. 4 parts have same end view as Fig. 1.

Fig’s 2 and 3 have mounting dimensions of Fig. 1

2. C diameter of Fig. 1 parts .27 for embedded band and

.25 on all other parts.

Detailed General Specifications on Page 34.

.44

.045

.020

.155 DIA

Add “EI” to End of Type Number

(eg. TP9CEI)

.040

.60

.020 ± .005

.12 DIA

Add “E” to End of Type Number

(eg. TP9EI)

.020

.31 DIA

.69

.14

.036

.17

#64

(.036 DIA)

Add “L” to End of Type Number

(eg. TP28L)

.08 DIA

Optional configurations

EXTENDED METAL SHAFT

PRINTED CIRCUIT LUG

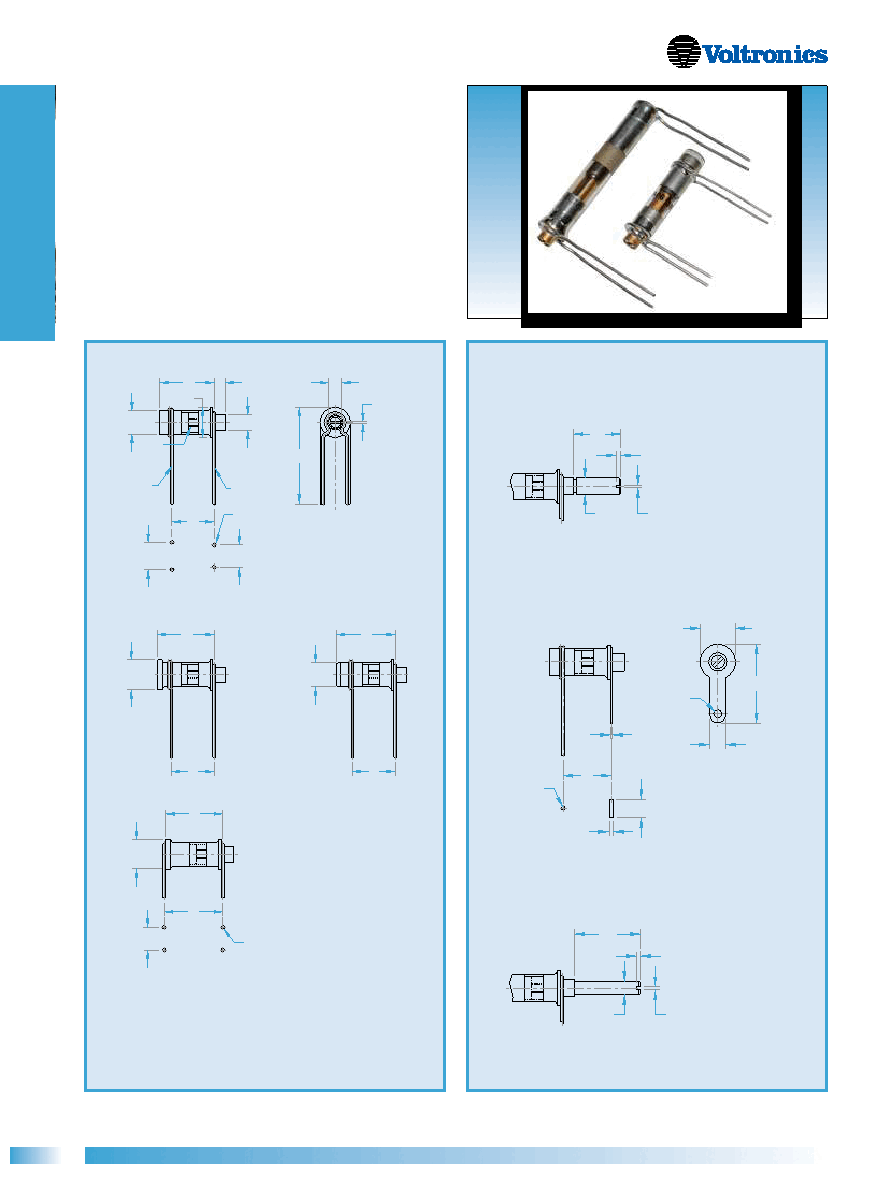

Horizontal Mount Trimmers - TP & QP Series

EXTENDED PLASTIC SHAFT

a Knowles Precision Devices brand

These ranges are horizontal mount versions of Voltronics glass and

quartz dielectric trimmers. Available sealed or unsealed in Annular

Band Glass, Embedded Band Glass and Quartz, the capacitance

values are significant, up to 180pF max with 178pF of tunable

range. All three dielectric options are also available in MIL Std

versions featuring PC42, PC43 and PC52 designations.
