www.knowlescapacitors.com

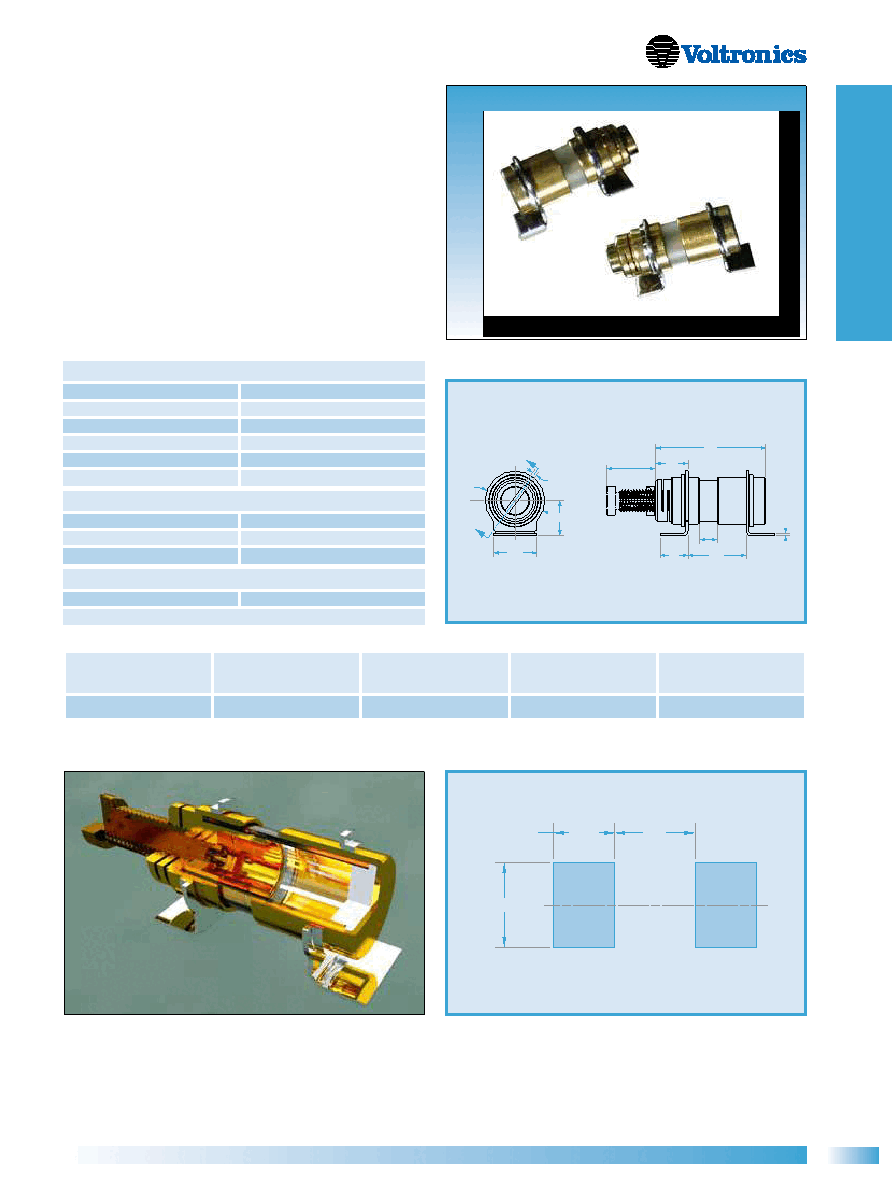

The V9000 trimmer capacitor is a unique design: truly sub

miniature at just 0.64” (16.3mm) in length but offers the highest

working voltage rating of 2kV and capacitance value, up to 12pF,

available in its size.

Using a Sapphire dielectric, for its ideal dielectric constant, it

is extremely stable, is chemically inert, moisture resistant and

mechanically strong. Recently launched, additional features are

still under development, contact Voltronics for our usual custom

modifications and adaptations.

Non-Magnetic Sapphire Trimmer - V9000

.14

±.03

.21 at

min. cap

2x .010

.12

.47

.020

Ø .25

.188

.15

.25

.08

General specifications

Capacitance Range

1.0pF to 12.0pF Typical

DC Working Voltage @ 12.0pF

2000V

DC Withstanding Voltage @ 12.0pF

3000V

Q Factor @ 100 MHz & 12.0 pF

3000 Min

Insulation Resistance

105 MΩ @ 25°C

Temperature Coefficient

500 ± 200 ppm/°C

Mechanical specifications

Tuning Torque

0.5 in oz to 3.0 in oz

Rotational Life

600 Turns Min

Construction

Non-Magnetic

Environmental

Operating Temperature

-55°C to +125°C

RoHS Compliant

Dimensions

Part No.

DC Working Voltage

DC Withstanding

Voltage

Capacitance (pF) <

Capacitance (pF) >

V9000

2000V

3000V

Solder pad layout

2X .220

2X .160

.210

V9000 cutaway

a Knowles Precision Devices brand
