PXAE261908NF

Main

Peak

P G - H B S O F - 6 - 1_ P D _ 8- 29- 20 20 _b n

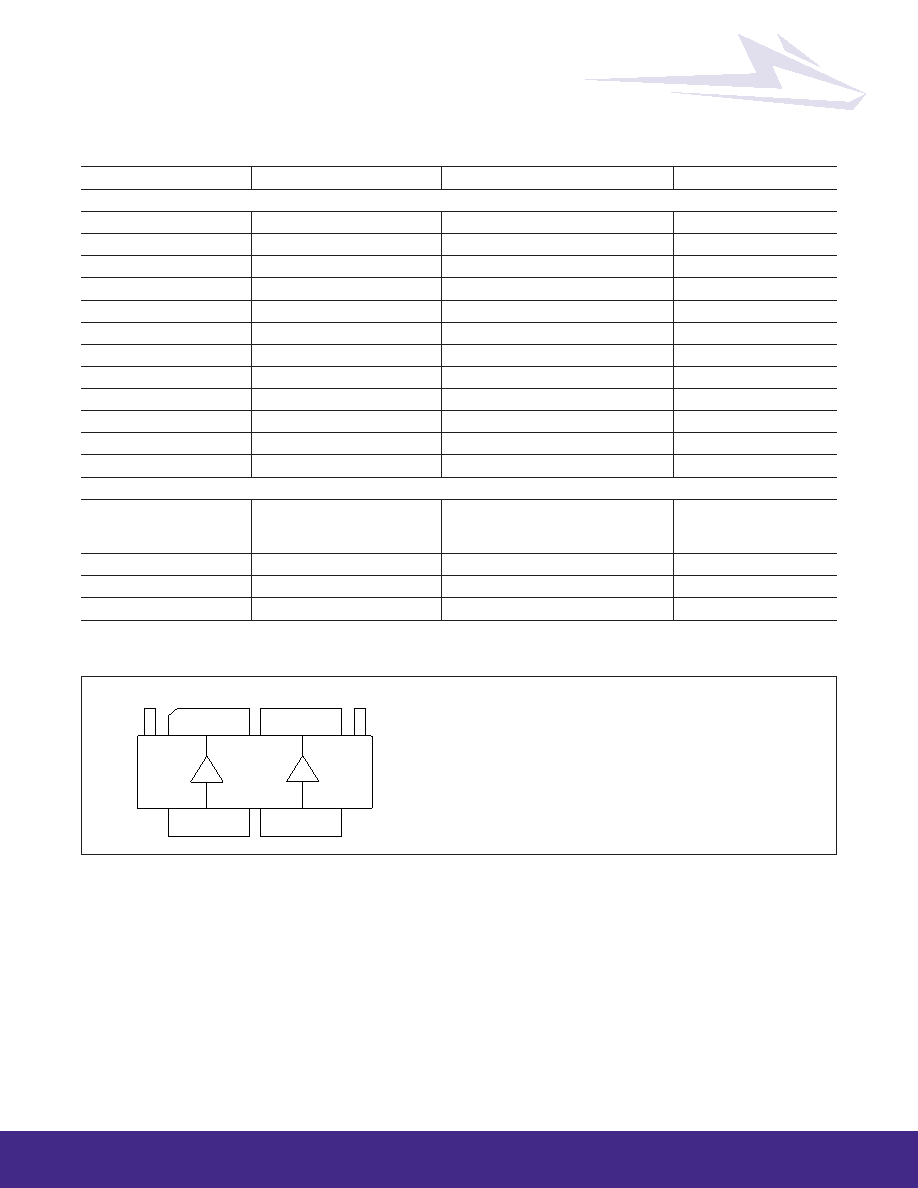

Pinout Diagram (top view)

Description

Drain Device 1 (Main)

Drain Device 2 (Peak)

Gate Device 1(Main)

Gate Device 2 (Peak)

Source (flange)

V1, V2

Drain video decoupling, no DC Bias

Components Table

Component

Description

Manufacturer

P/N

Input

C101, C103, C105, C106

Capacitor, 20 pF

ATC

ATC800A200JT250T

C102, C107

Capacitor, 10 µF, 50 V

Taiyo Yuden

UMK325C7106MM-T

C104

Capacitor, 0.6 pF

ATC

ATC800A0R6CT250T

R101, R102

Resistor, 2.49 ohms

Vishay Dale

CRCW12062R49FKEA

R103

Resistor, 50 ohms

RICHARDSON

C8A50Z4A

Hybrid coupler

ANAREN

X3C35P1-02S

C801,C802, C803

Capacitor, 1,000 pF

Murata Electronics

GRM188R72A102KA01D

R801

Chip resistor, 1.2K ohms

Panasonic Electronic Components

ERJ-3GEYJ122V

R802

Chip resistor, 1.3K ohms

Panasonic Electronic Components

ERJ-3GEYJ132V

S1, S2

Variable resistor, 2K ohms

Bourns Inc.

3224W-1-202E

Voltage regulator

Texas Instruments

LM78L05ACM

Transistor

Diodes Incorporated

BCP5616TA

Output

C201, C204, C205, C206,

C207, C211, C212, C213,

C214, C215

Capacitor, 10 µF, 50 V

Taiyo Yuden

UMK325C7106MM-T

C202

Capacitor, 3.9 pF

ATC

ATC800A3R9CT250T

C203, C208, C210

Capacitor, 20 pF

ATC

ATC800A200JT250T

C209

Capacitor, 1.0 pF

ATC

ATC100B1R0CW500XB

Evaluation Circuit (cont.)

4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com

Rev. 04, 2023-07-24
