P9222-R/RN Datasheet
© 2019-2022 Renesas Electronics Corporation
20
May 5, 2022

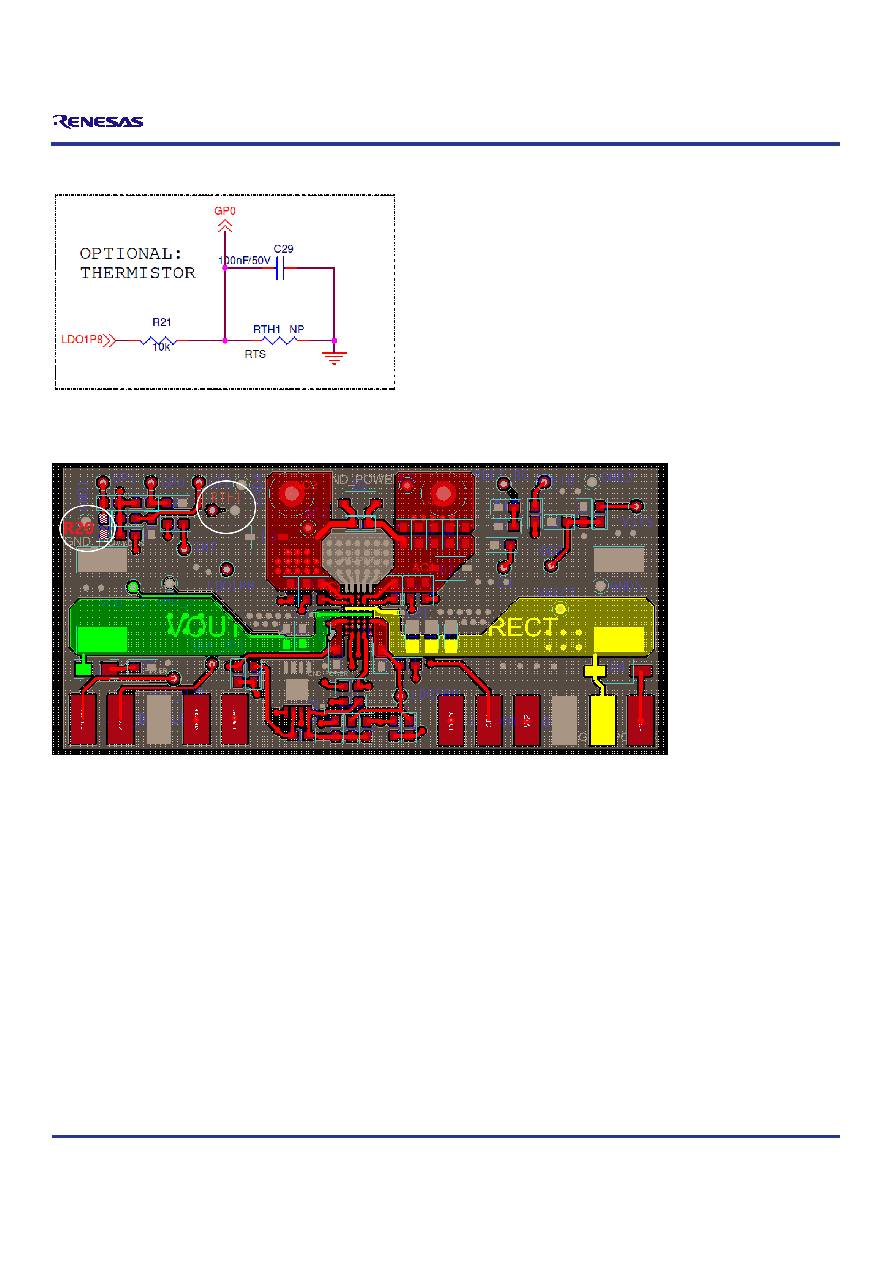

Figure 15. RTH1 and R21 Schematic Location
Figure 16. RTH1 and R21 PCB Location
5.9 Rectifier and VRECT Level
Once VRECT powers up to greater than UVLO, the full-bridge rectifier switches to half synchronous or full synchronous mode (depending on
the loading conditions) to efficiently transfer energy from the transmitter to the load applied to VOUT. The VRECT pin must not be directly
loaded. The rectified voltage will automatically self-adjust based on the programmed output setting to regulate throughout for all phases of
charging to maintain adequate headroom that is balanced with optimal efficiency.
5.10 Interrupt Output
In Wireless Power RX mode, the /INT pin can be programmed to go LOW to indicate that an over-current, over-voltage, or over-temperature
event has occurred. This feature is programmable and can be implemented using the /INT.
