(508) 946-5100

1

info@mccdaq.com

mccdaq.com

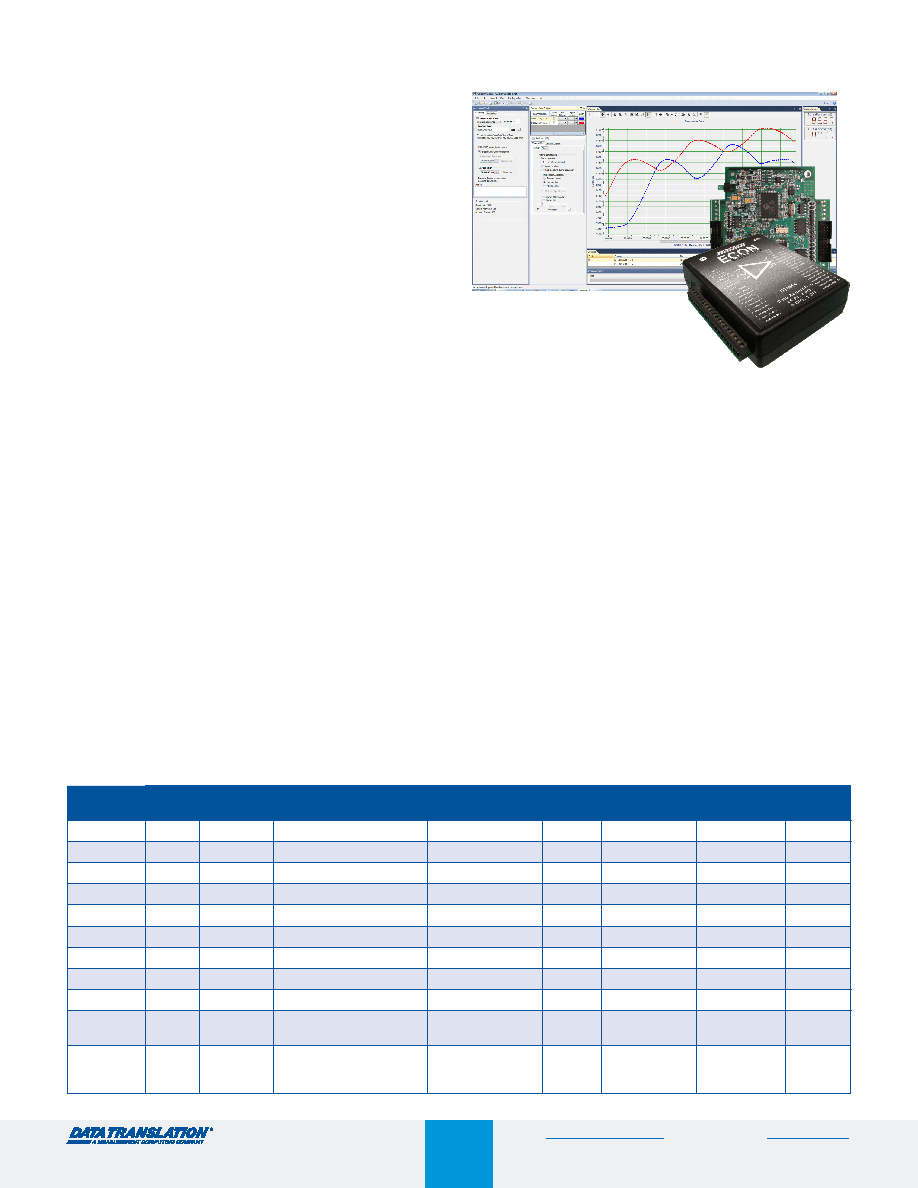

Low Cost USB Data Acquisition

Modules

ECONseries

Overview

The ECONseries is a flexible yet economical series of

multifunction DAQ modules. You choose the number of

analog I/O and digital I/O channels, the resolution you

need, and the signal range of your application.

Key Features

• Ultimate flexibility with up to 24 analog inputs,

2 analog outputs, 28 digital I/O, and one 32-bit

counter timer

• 10-, 12-, or 16-bit resolution

• Independent subsystem operation at sample rates

up to 750 kS/s per channel

• Simultaneous analog inputs on the DT9816 modules

• Signal range of ±10 V on both the analog input and

analog output

• Generate sine, rectangle, triangle, or DC waveforms

with the analog outputs

• Three versions of digital I/O modules: isolated, non-

isolated, and high current drive

• Monitor and control up to 28 digital I/O lines

• Perform event counting, frequency measurement,

edge-to-edge measurement, and rate generation

• Shielded, rugged enclosure for noise immunity, with

built-in screw terminals

• Easy signal connections on the DT9812-10V-OEM

with two 20-pin connectors for all I/O signals

• All modules run off USB power supply, no external

power supply needed

• Includes free QuickDAQ software to get up and

running quickly (does not support DIO)

Module

Analog

Inputs

Resolution

I/O Range

Analog Input

Sample Rate

Analog

Outputs

Analog Output

Update Rate

Digital I/O

Counter/

Timer

DT9810

8 SE

10-bit

0 V to 2.44 V

25 kS/s aggregate

—

20 I/O

1

DT9812-10V

8 SE

12-bit

±10 V, ±5 V, ±2.5 V, ±1.25 V

50 kS/s aggregate

2

50 kS/s

8 in/8 out

1

DT9812A

8 SE

12-bit

±10 V, ±5 V, ±2.5 V, ±1.25 V 100 kS/s aggregate

2

75 kS/s

8 in/8 out

1

DT9813-10V

16 SE

12-bit

±10 V, ±5 V, ±2.5 V, ±1.25 V

50 kS/s aggregate

2

50 kS/s

4 in/4 out

1

DT9813A

16 SE

12-bit

±10 V, ±5 V, ±2.5 V, ±1.25 V 100 kS/s aggregate

2

75 kS/s

4 in/4 out

1

DT9814-10V

24 SE

12-bit

±10 V, ±5 V, ±2.5 V, ±1.25 V

50 kS/s aggregate

2

50 kS/s

—

1

DT9816

6 SE

16-bit

±10 V or ±5 V

50 kS/s per ch

—

8 in/8 out

1

DT9816-A

6 SE

16-bit

±10 V or ±5 V

150 kS/s per ch

—

8 in/8 out

1

DT9816-S

6 SE

16-bit

±10 V or ±5 V

750 kS/s per ch

—

8 in/8 out

1

DT9817-H

—

28 I/O

high drive

1

DT9817-R

—

8 in/8 out

Isolated

high drive

1

Supported Operating Systems

• Windows® 10/8/7/Vista®/XP 32/64-bit

Analog Inputs

The DT9810 provides 10-bit resolution, while the DT9812,

DT9813, and DT9814 modules provide 12-bit resolution.

For maximum resolution, the DT9816 modules provide

16-bit resolution.

The DT9810 and DT9812 modules provide eight single-

ended (SE) analog input channels. The DT9813 modules

provide 16 single-ended analog inputs. The DT9814

modules provide 24 single-ended analog input channels.

The modules can acquire data from a single analog input

channel or from a group of analog input channels.

The ECONseries provides

economical, multifunction data

acquisition instruments for the USB

bus. Simply install the software,

connect your module to any USB port,

and measure.
