The DT9817-R can switch up to 30 V at 400 mA. It

features 8 dedicated digital input lines and 8 dedicated

digital output lines. This module includes channel-to-

channel isolation of up to 500 V (250 V between digital

input channels that are paired in an opto-isolator).

The DT9817-H and DT9817-R are ideal for solid state or

mechanical relays.

Multifunction Counter/Timers

The DT9816 modules support one 16-bit counter/timer

channel. All other modules feature one 32-bit counter/

timer (16 bits in rate generation mode). The counter

accepts a counter/timer clock input signal (pulse input

signal) and gate input signal, and outputs a pulse signal

(clock output signal). You can perform event counting,

frequency measurement, edge-to-edge measurement

(not supported by DT9816 modules), and rate generation

(continuous pulse output) operations using this counter/

timer.

Synchronizing Multiple Modules

You can synchronize the analog input operations of

multiple DT9812, DT9813, DT9814, and DT9816 Series

modules by connecting the output of the counter/timer

from one module to the clock input of the next module

as shown in the diagram on the right.

Easy Signal Connections

Built-in screw terminals on the module allow easy and

direct signal connections. No extra accessories are

required. Simply wire your signals to the module and

you’re all set. For OEM users, the board-only versions of

the DT9812-10V-OEM provides two, 20-pin connectors to

accommodate all I/O signals.

Cross-Series Compatibility

Virtually all Data Translation data acquisition modules

are compatible with the DT-Open Layers® software

standard. This means any application developed with

one of Data Translation’s software products can easily be

upgrade to a new Data Translation module with little to

no reprogramming needed.

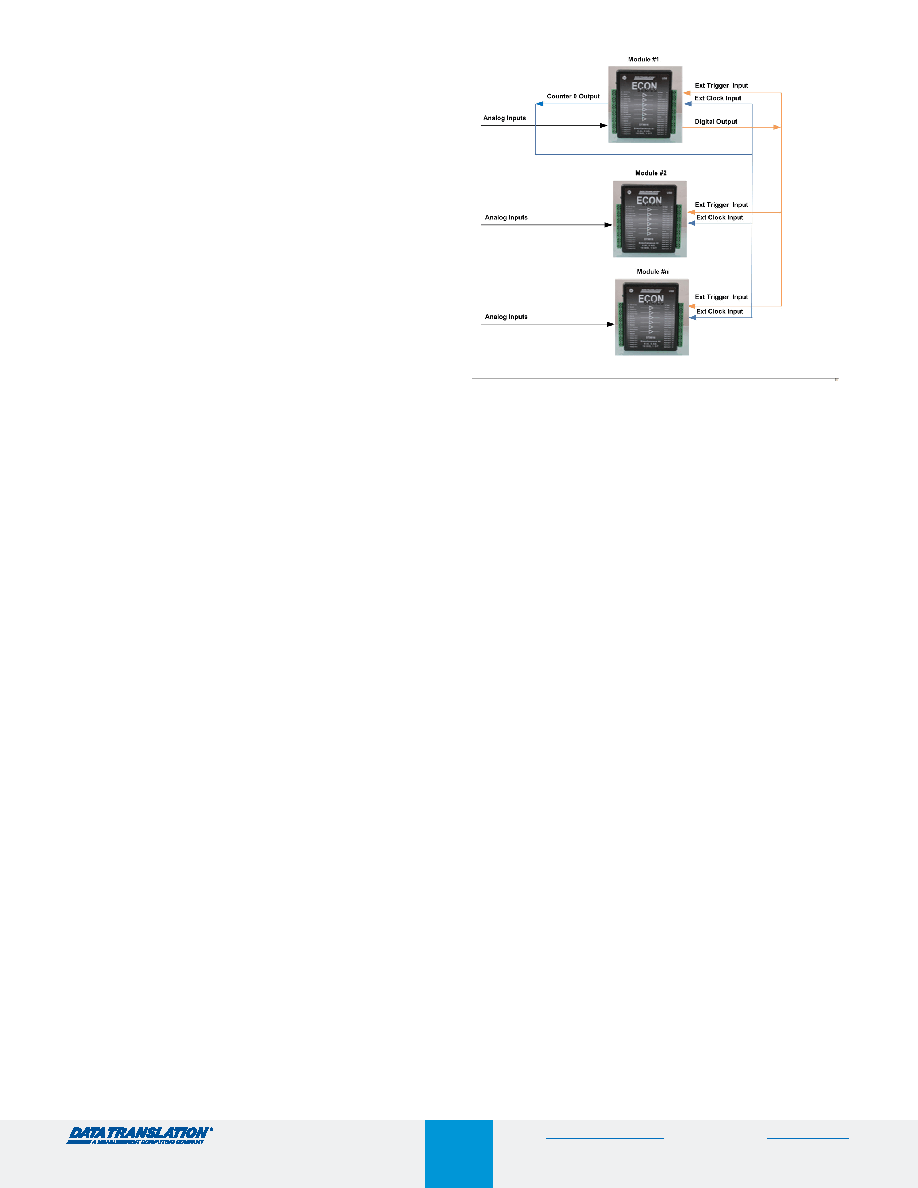

You can synchronize the analog I/O operations of multiple

modules by connecting them together.
