ADL8142ACPZN-R7-CSL bảng dữ liệu(PDF) 6 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADL8142ACPZN-R7-CSL bảng dữ liệu(HTML) 6 Page - Analog Devices |
|

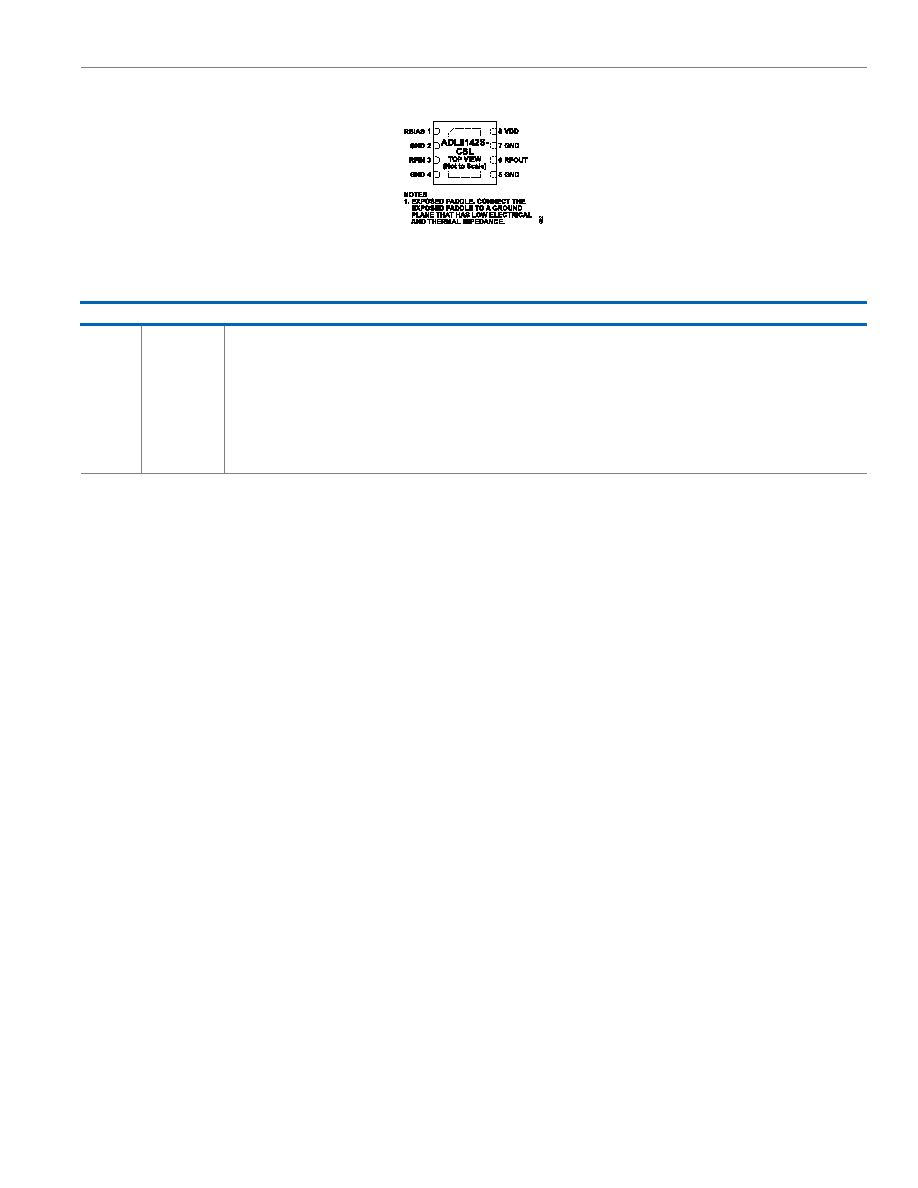

6 / 8 page ![]() Data Sheet ADL8142S PIN CONFIGURATION AND FUNCTION DESCRIPTIONS analog.com Rev. 0 | 6 of 8 Figure 2. Pin Configuration Table 9. Pin Function Descriptions Pin No. Mnemonic Description 1 RBIAS Bias Setting Resistor. Connect a resistor between RBIAS and VDD to set the IDQ. See the typical application circuit and the recommended bias resistor values for VDD = 2 V table in the ADL8142 data sheet for more details. 2, 4, 5, 7 GND Ground. Connect the GND pins to a ground plane that has low electrical and thermal impedance. 3 RFIN RF Input. The RFIN pin is ac-coupled and matched to 50 Ω. 6 RFOUT RF Output. The RFOUT pin is ac-coupled and matched to 50 Ω. 8 VDD Drain Bias. Connect the VDD pin to the supply voltage. EXPOSED PADDLE Exposed Paddle. Connect the exposed paddle to a ground plane that has low electrical and thermal impedance. |
|
|
