HMC6475LC4B

v06.0519

WIDEBAND MMIC VCO WITH BUFFER AMPLIFIER

3.90 - 7.50 GHz

For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

General Description

Features

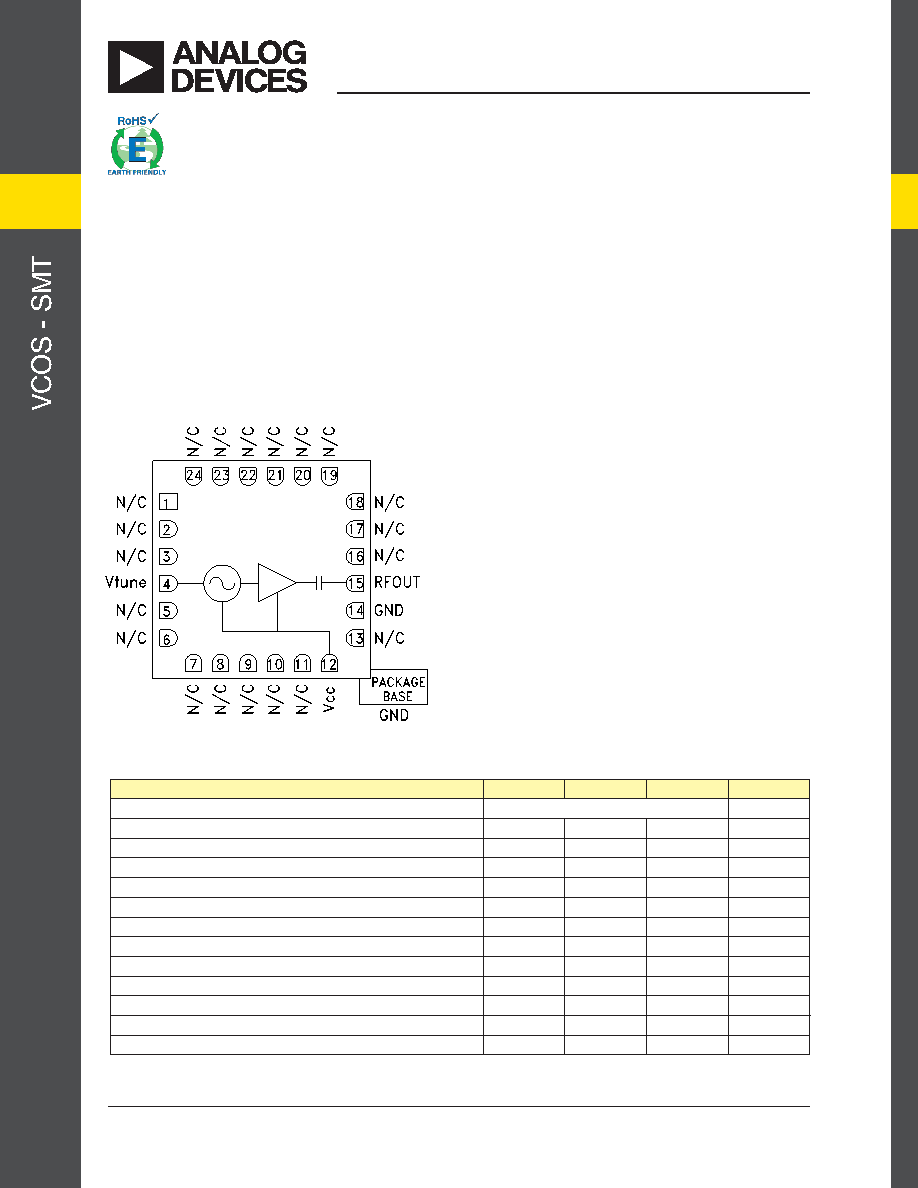

Functional Diagram

The HMC6475LC4B is a wideband MMIC Voltage

Controlled Oscillator which incorporates the resonator,

negative resistance device, and varactor diode. Output

power and phase noise performance are excellent

over temperature due to the oscillator’s monolithic

construction. The Vtune port accepts an analog tuning

voltage from 0 to +23V. The HMC6475LC4B VCO

operates from a single +5V supply, consumes only

53 mA of current, and is housed in a RoHS compliant

SMT package. This wideband VCO uniquely combines

the attributes of ultra small size, low phase noise, low

power consumption, and wide tuning range.

Wide Tuning Bandwidth

Pout: +5 dBm

Low SSB Phase Noise: -106 dBc/Hz @100 kHz

No External Resonator Needed

Single Positive Supply: +5V @ 53 mA

Ceramic Leadless SMT Package: 16 mm²

Typical Applications

Low Noise wideband MMIC VCO is ideal for:

• Industrial/Medical Equipment

• Test & Measurement Equipment

• Satcom

• Military Radar, EW, & ECM

Parameter

Min.

Typ.

Max.

Units

Frequency Range

3.90 - 7.50

GHz

Power Output

-1

5

dBm

SSB Phase Noise @ 100 kHz Offset

-106

dBc/Hz

SSB Phase Noise @ 1 MHz Offset

-130

dBc/Hz

Supply Current (Icc) (Vcc = +5V)

53

70

mA

Tune Voltage (Vtune)

0

23

V

Tune Port Leakage Current (Vtune = +23V)

100

µA

Output Return Loss

7

dB

2nd Harmonic

-11

dBc

3rd Harmonic

-22

dBc

Pulling (into a 2.0:1 VSWR)

7

MHz pp

Pushing

10

MHz/V

Frequency Drift Rate

0.45

MHz/°C
