4

HMC6475LC4B

v06.0519

WIDEBAND MMIC VCO WITH BUFFER AMPLIFIER

3.90 - 7.50 GHz

For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

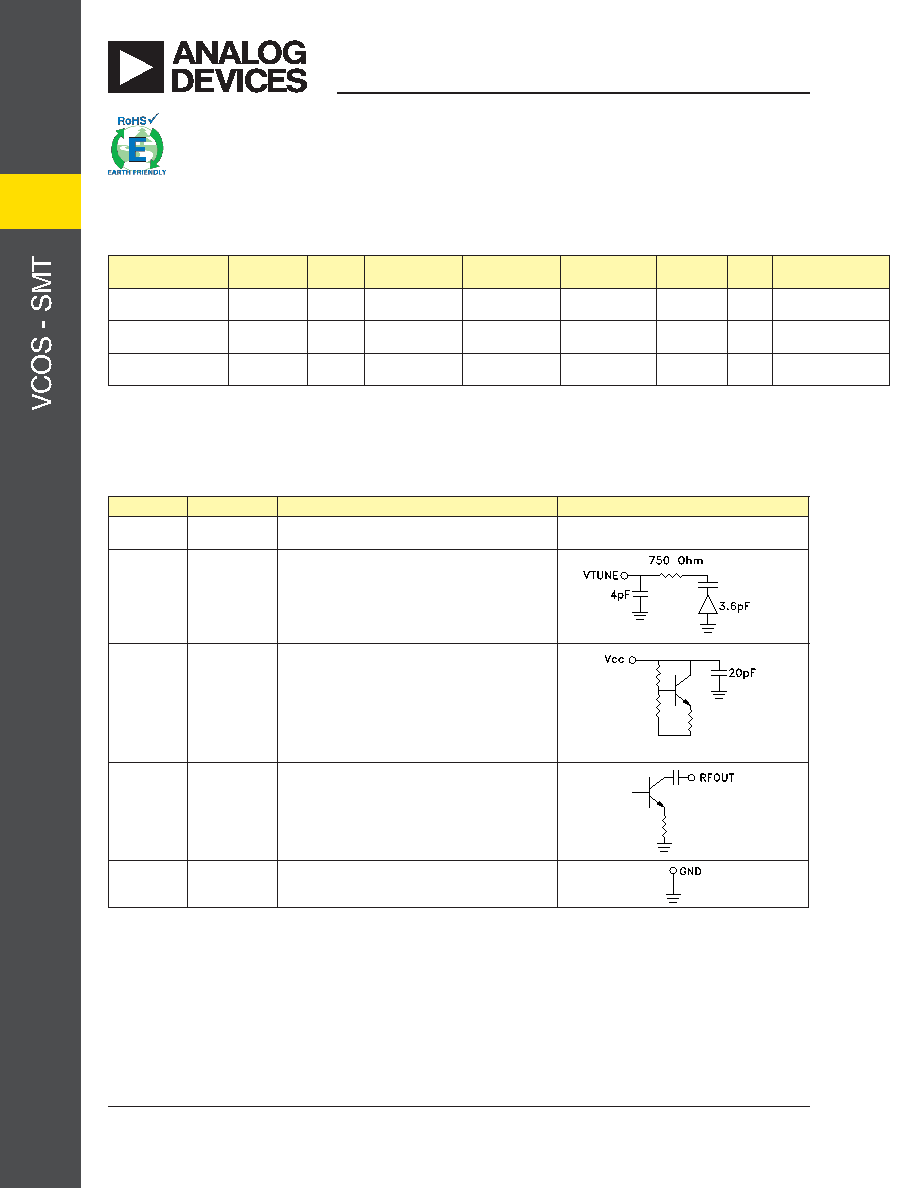

Pin Number

Function

Description

Interface Schematic

1 - 3, 5 - 11,

13, 16 - 24

N/C

No Connection. These pins may be connected to RF/DC

ground. Performance will not be affected.

4

Vtune

Control Voltage and Modulation Input. Modulation band-

width dependent on drive source impedance. .

12

Vcc

Supply Voltage, Vcc= +5V

15

RFOUT

RF output (AC coupled)

14, 16

Paddle

GND

Package bottom has an exposed metal paddle that

must be connected to RF & DC ground.

Pin Descriptions

Ordering Guide

Model

Temperature

Range

MSL

Package Body

Material

Lead Finish

Package

Description

Package

Option

Qty.

HMC6475LC4B

-40C to +85C

MSL3

Alumina, White

Gold over Nickel

24-LCC-4X4_MM

E-24-2

H6475

XXXX

HMC6475LC4BTR

-40C to +85C

MSL3

Alumina, White

Gold over Nickel

24-LCC-4X4_MM

E-24-2

100

H6475

XXXX

HMC6475LC4BTR-R5

-40C to +85C

MSL3

Alumina, White

Gold over Nickel

24-LCC-4X4_MM

E-24-2

500

H6475

XXXX

[1] Max peak reflow temperature of 260 °C

[2] 4-Digit lot number XXXX
