Transient Protection (continued)

Some applications may require additional Transient Voltage Suppressor (TVS) to prevent transients from

exceeding the Absolute Maximum Ratings of the device. These transients can occur during positive and negative

surge tests on the supply lines. In such applications it is recommended to place at least 1 µF of input capacitor.

The circuit implementation with optional protection components (a ceramic capacitor, TVS and schottky diode) is

shown in Figure 38

* Optional components needed for suppression of transients

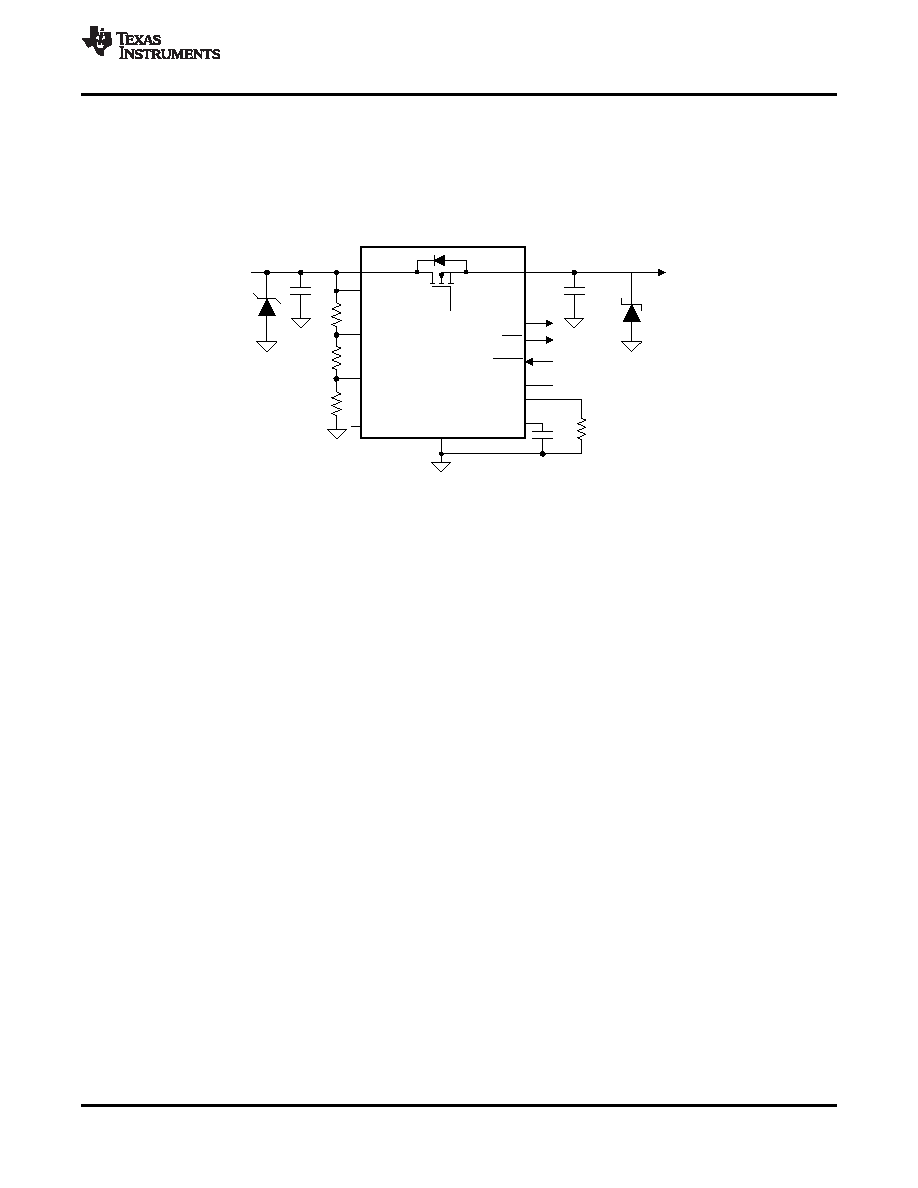

Figure 38. Circuit Implementation with Optional Protection Components for TPS1663x
