UNISONIC TECHNOLOGIES CO., LTD

US210AD

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 5

Copyright © 2017 Unisonic Technologies Co., Ltd

PRECISION ADJUSTABLE

CURRENT-LIMITED

POWER-DISTRIBUTION

SWITCHES



DESCRIPTION

The UTC US210AD is a cost-effective, low voltage, single

P-MOSFET load switch. It is intended for applications where

precision current limiting is required or heavy capacitive loads and

short-circuits are likely to be encountered. This device offers a

programmable current-limit threshold by an external resistor from

SET to ground.

The UTC US210AD device limits the output current to a safe

level by switching into a constant-current mode when the output

load exceeds the current-limit threshold. It also provides for a

reverse-voltage protection which can disable the power-switch in

the event that the output voltage is driven higher than the input to

protect devices on the input side of the switch.



FEATURES

* Operating range: 2.7V~5.5V

* High-side MOSFET: 160mΩ (TYP.)

* Quiescent supply current: 25μA(TYP.)

* Standby supply current: 1µA (Max.)

* 1A Continuous Output Current* Programmable current limit,

1A(TYP.)

* Reverse input-output voltage protection

* Built-in soft-start

* Under-voltage Lockout



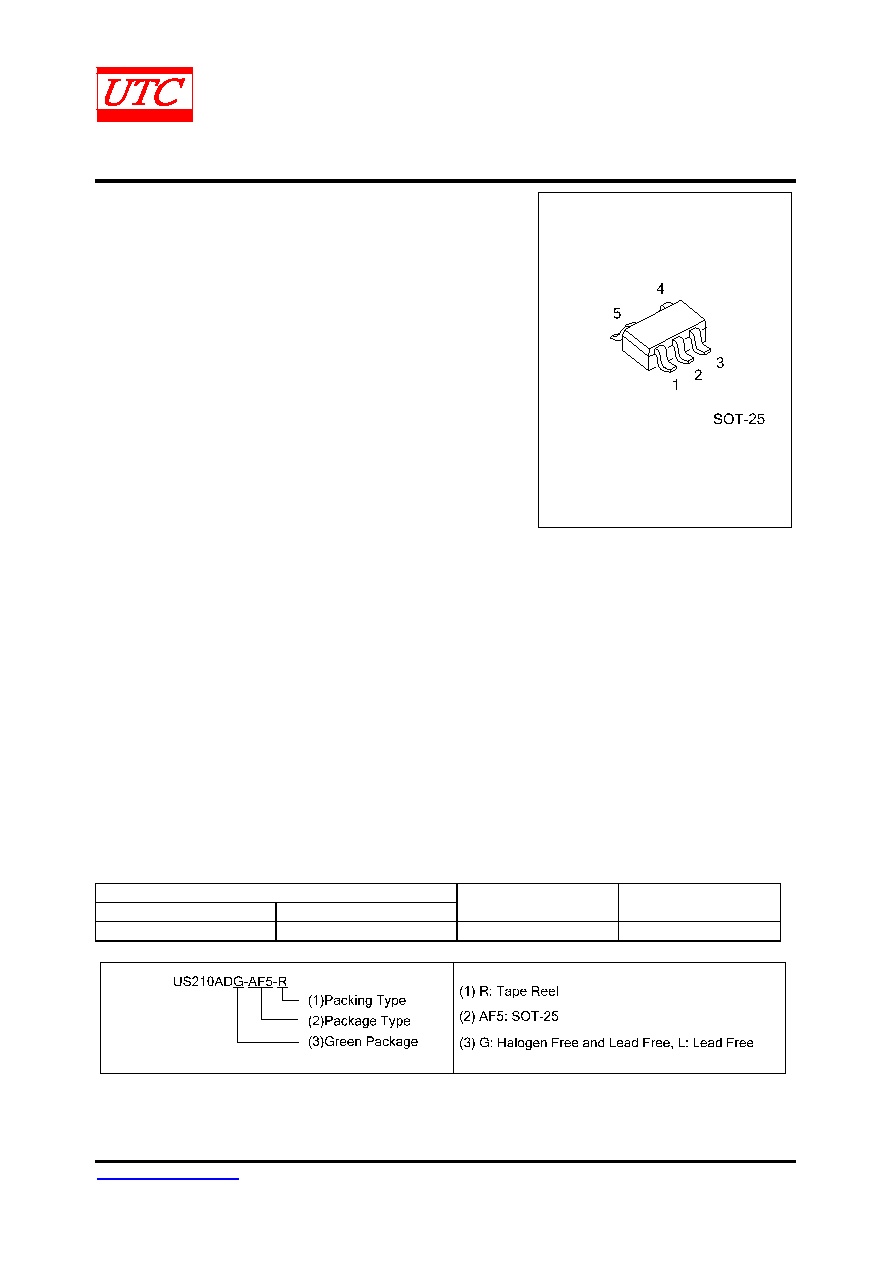

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

US210ADG-AF5-R

US210ADG-AF5-R

SOT-25

Tape Reel
