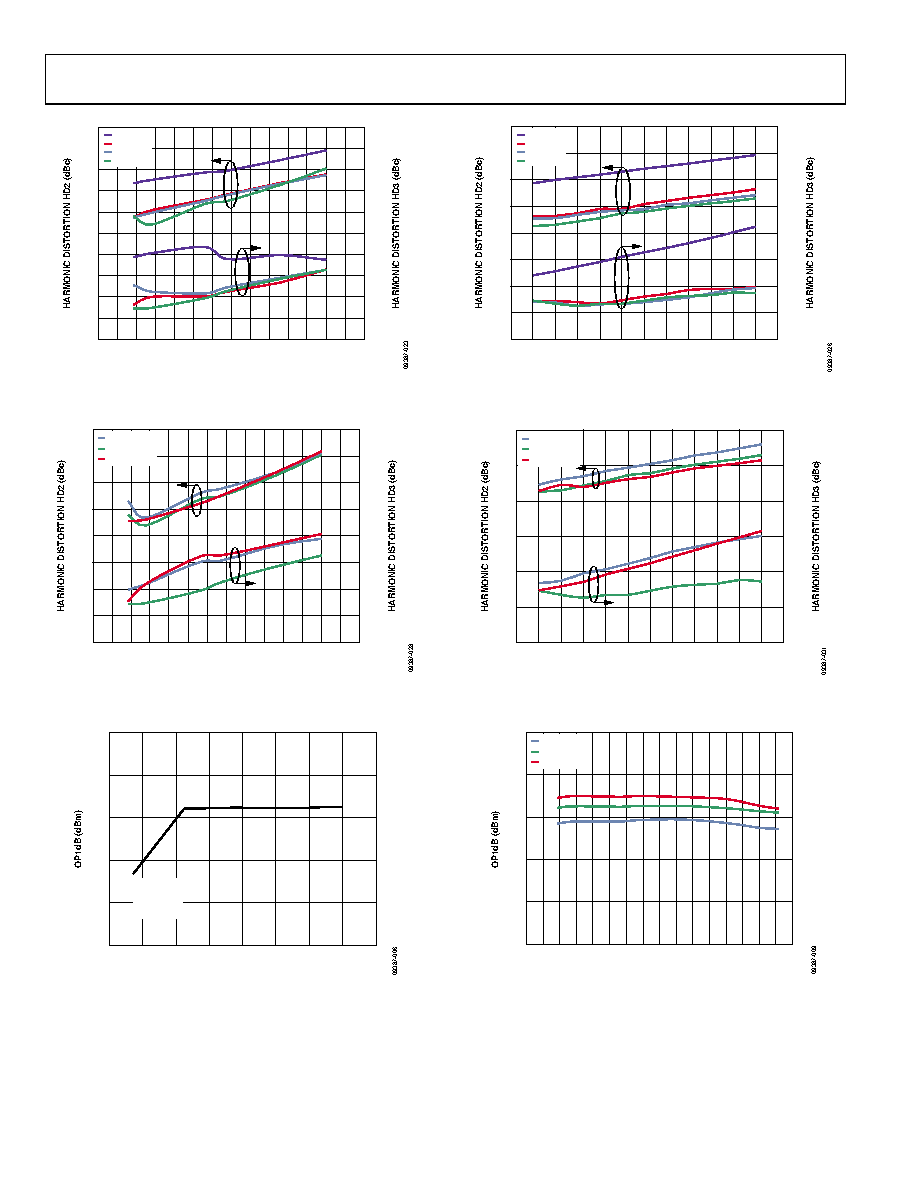

10 / 29 page  ADL5202 Data Sheet Rev. D | Page 10 of 29 –120 –110 –100 –90 –80 –70 –60 –50 –40 –30 –20 –150 –140 –130 –120 –110 –100 –90 –80 –70 –60 –50 0 50 100 150 200 250 300 350 FREQUENCY (MHz) –11.5dB 0dB 10dB 20dB Figure 18. Harmonic Distortion vs. Frequency at Four Gain Codes –120 –110 –100 –90 –80 –70 –60 –50 –40 –140 –130 –120 –110 –100 –90 –80 –70 –60 0 50 100 150 200 250 300 350 FREQUENCY (MHz) TA = –40°C TA = +25°C TA = +85°C Figure 19. Harmonic Distortion vs. Frequency, Three Temperatures 0 5 10 15 20 25 –15 –10 –5 0 5 10 15 20 25 PROGRAMMED GAIN (dB) INPUT MAX RATINGS BOUNDARY Figure 20. OP1dB vs. Programmed Gain at 140 MHz, Low Power Mode –120 –110 –100 –90 –80 –70 –60 –50 –40 –140 –130 –120 –110 –100 –90 –80 –70 –60 –6 –5 –4 –3 –2 –1 0 1 2 3 4 5 6 POUT (dBm) –11.5dB 0dB 10dB 20dB Figure 21. Harmonic Distortion vs. Power at Four Gains, Frequency = 140 MHz –120 –110 –100 –90 –80 –70 –60 –140 –130 –120 –110 –100 –90 –80 –6 –5 –4 –3 –2 –1 0 1 2 3 4 5 6 POUT (dBm) TA = –40°C TA = +25°C TA = +85°C Figure 22. Harmonic Distortion vs. Power, Frequency = 140 MHz, Three Temperatures FREQUENCY (MHz) 0 5 10 15 20 25 0 50 100 150 200 250 300 350 400 TA = –40°C TA = +25°C TA = +85°C Figure 23. OP1dB vs. Frequency at Maximum Gain, Three Temperatures, Low Power Mode |
|
