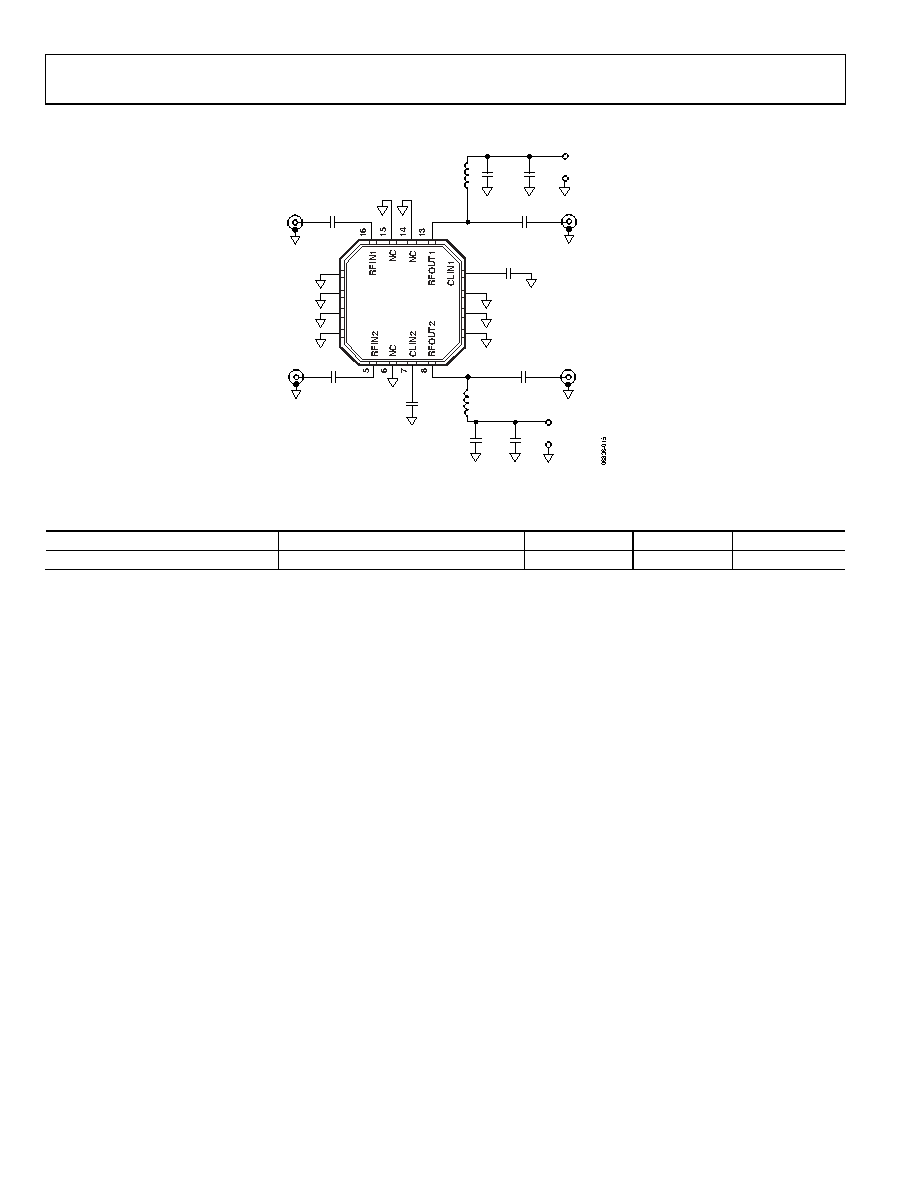

10 / 16 page ![]() ADL5534 Data Sheet Rev. B | Page 10 of 16 BASIC CONNECTIONS RFOUT1 L1 470nH L2 470nH C7 10nF RFIN1 C1 10nF RFIN2 C3 10nF C5 1nF C9 1µF C2 10nF VPOS GND RFOUT2 C8 10nF C4 10nF C10 1µF VPOS1 GND1 NC NC NC NC NC NC Z1 ADL5534 NC 9 12 4 10 2 11 3 1 C6 1nF Figure 16. Basic Connections Table 5. Recommended Components for Basic Connections Frequency C1, C2, C3, C4, C7, C8 L1, L2 C5, C6 C9, C10 20 MHz to 500 MHz 10 nF 470 nH 1 nF 1 μF The basic connections for operating the ADL5534 are shown in Figure 16. Recommended components are listed in Table 5. The inputs and outputs should be ac-coupled with appropriately sized capacitors (device characterization was performed with 10 nF capacitors). DC bias is provided to the amplifier via the L1 and L2 inductors connected to the RFOUT1 and RFOUT2 pins. The recommended inductors for L1 and L2 are Coilcraft, 1008CS-471XJLC or equivalent. The bias voltage should be decoupled using 10 nF and 1 μF capacitors. A bias voltage of 5 V is required. |
|
|
