PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

9 NC

12 CLIN1

NC 4

10 NC

NC 2

11 NC

NC 3

ADL5534

NC 1

PIN 1

INDICATOR

TOP VIEW

(Not to Scale)

NOTES

1. NC = NO CONNECT.

2. THE EXPOSED PADDLE IS INTERNALLY

CONNECTED TO GND. SOLDER TO A LOW

IMPEDANCE GROUND PLANE.

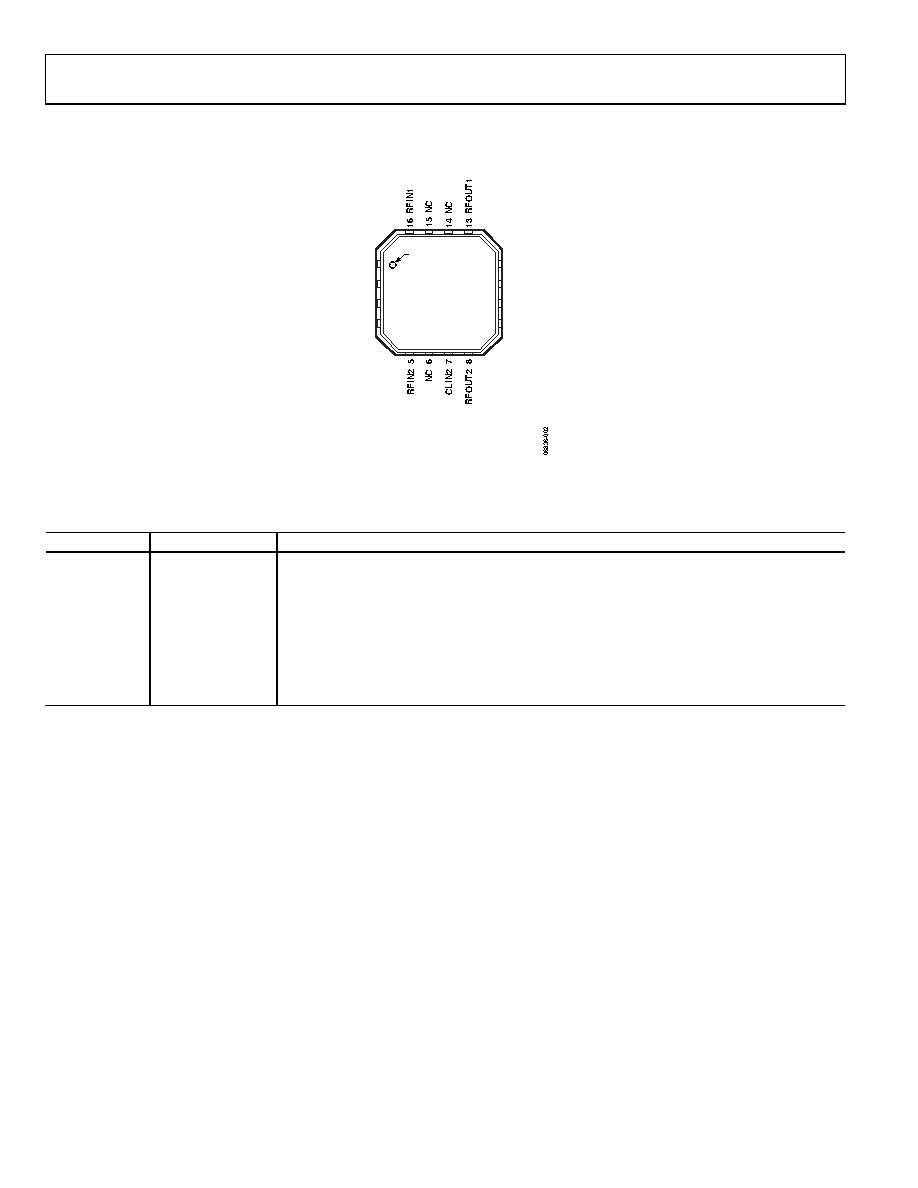

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 2, 3, 4, 6, 9,

10, 11, 14, 15

NC

No Connect.

5, 16

RFIN2, RFIN1

RF Input. Requires a dc blocking capacitor. Use a 10 nF capacitor for normal operation.

7, 12

CLIN2, CLIN1

A 1 nF capacitor connected from Pin 7 to ground and Pin12 to ground provides decoupling

for the on-board linearizer.

8, 13

RFOUT2, RFOUT1

RF Output and Bias. DC bias is provided to this pin through an inductor. A 470 nH inductor is

recommended for normal operation. The RF path requires a dc blocking capacitor. Use a 10 nF

capacitor for normal operation.

Exposed Paddle

GND. Solder this paddle to a low impedance ground plane.
