29/42

M41ST87Y, M41ST87W

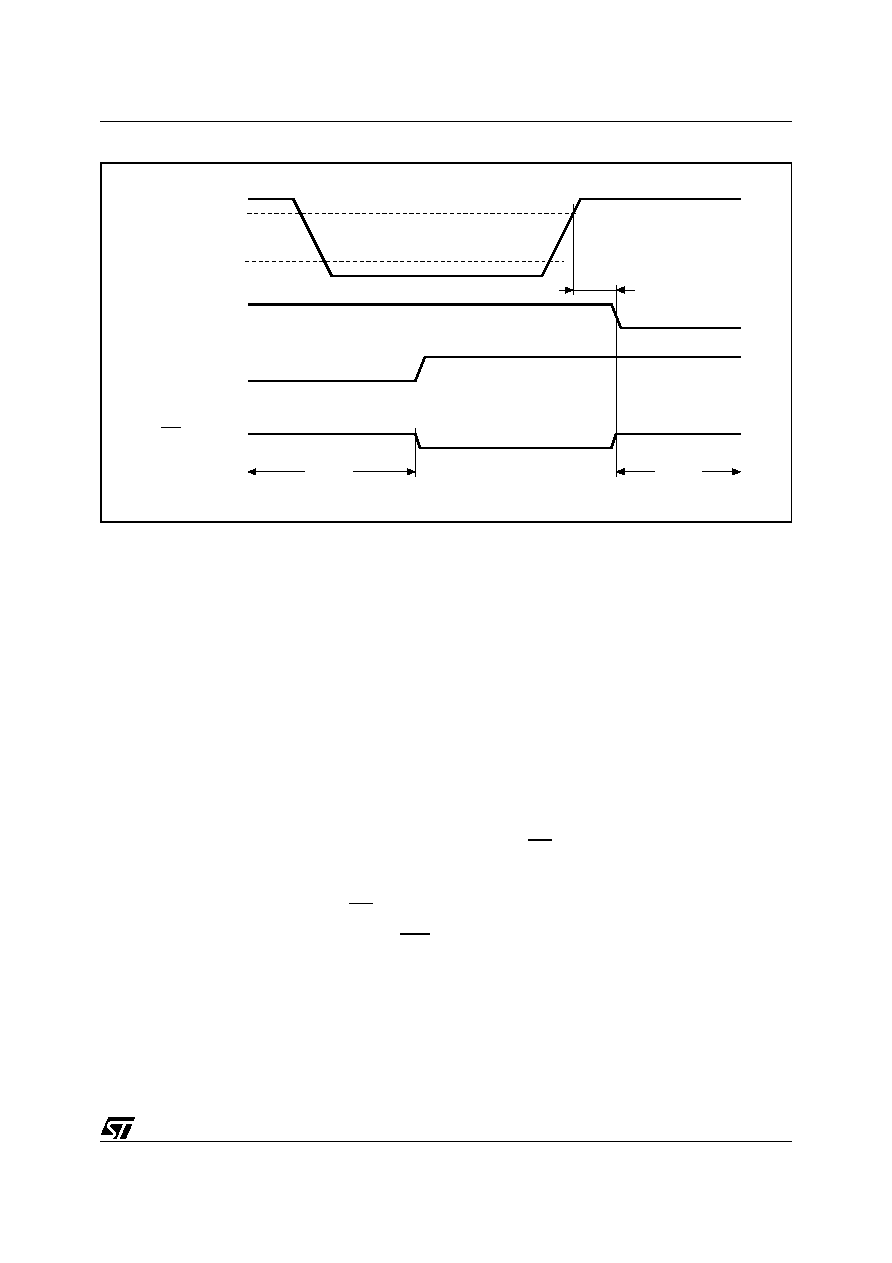

Figure 25. Back-Up Mode Alarm Waveform

Watchdog Timer

The watchdog timer can be used to detect an out-

of-control microprocessor. The user programs the

watchdog timer by setting the desired amount of

time-out into the Watchdog Register, address 09h.

Bits BMB4-BMB0 store a binary multiplier and the

two lower order bits RB1-RB0 select the resolu-

tion, where 00=1/16 second, 01=1/4 second, 10=1

second, and 11=4 seconds. The amount of time-

out is then determined to be the multiplication of

the five-bit multiplier value with the resolution. (For

example: writing 00001110 in the Watchdog Reg-

ister = 3*1 or 3 seconds).

Note: The accuracy of the timer is within ± the se-

lected resolution.

If the processor does not reset the timer within the

specified period, the M41ST87Y/W sets the WDF

(Watchdog Flag) and generates a watchdog inter-

rupt or a microprocessor reset.

The most significant bit of the Watchdog Register

is the Watchdog Steering Bit (WDS). When set to

a '0,' the watchdog will activate the IRQ/OUT pin

when timed-out. When WDS is set to a '1,' the

watchdog will output a negative pulse on the RST

pin for trec. The Watchdog register, FT, AFE, ABE

and SQWE Bits will reset to a '0' at the end of a

Watchdog time-out when the WDS Bit is set to a

'1.'

The watchdog timer can be reset by two methods:

1) a transition (high-to-low or low-to-high) can be

applied to the Watchdog Input pin (WDI) or 2) the

microprocessor can perform a WRITE of the

Watchdog Register. The time-out period then

starts over.

Note: The WDI pin should be tied to VSS if not

used.

In order to perform a software reset of the watch-

dog timer, the original time-out period can be writ-

ten

into

the

Watchdog

effectively

restarting the count-down cycle.

Should the watchdog timer time-out, and the WDS

Bit is programmed to output an interrupt, either a

transition of the WDI pin, or a value of 00h needs

to be written to the Watchdog Register in order to

clear the IRQ/OUT pin. This will also disable the

watchdog function until it is again programmed

correctly. A READ of the Flags Register will reset

the Watchdog Flag (Bit D7; Register 0Fh).

The watchdog function is automatically disabled

upon power-up and the Watchdog Register is

cleared.

AI07087

VCC

IRQ/OUT

VPFD

ABE, AFE Bits in Interrupt Register

AF bit in Flags Register

HIGH-Z

VSO

HIGH-Z

trec
