Unit：mm

http://www.ddknet.co.jp

27CP Series

4

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice.

　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

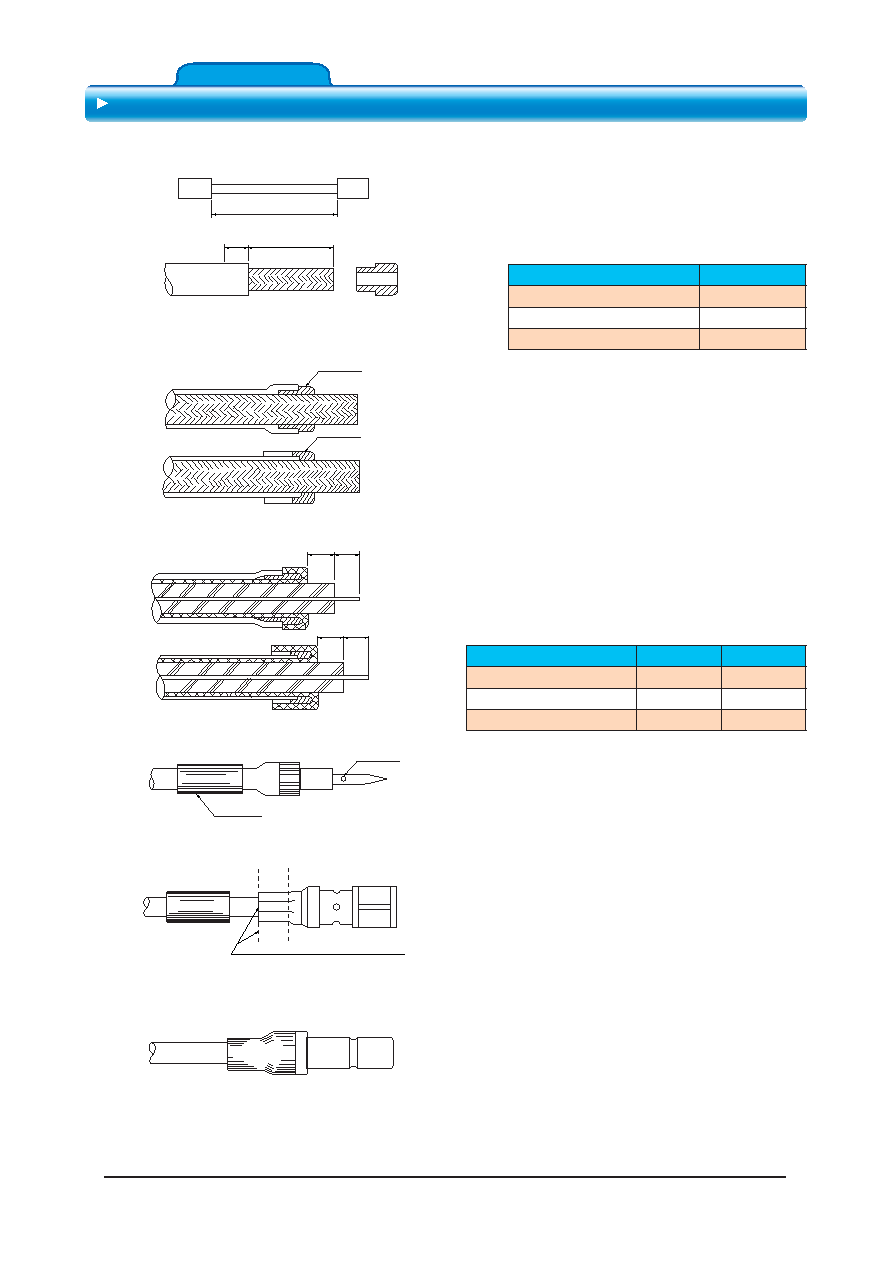

○Assembly Instruction（1）

L1

A

3

Ferule

Ferule

B

C

B

C

Heat-shrinkable tube

Soldering

Same level

Finish

2.5C-2V

1.5C-2V

The cable length require for the cable assembly

L=L1+A+3

Part Number

A

27CP-P-1.5-CF

6.4mm

27CP-P-2.5-CF

6.4mm

27CP-BJ-1.5W-CF

8.0mm

② Insert the ferule between outer conductor and

sheath when the cable is 2.5C-2V.

Insert the ferule until ferule contacts with the

sheath when the cable is 1.5C-2V.

①

②

③

④

⑤

⑥

③ Pick the outer conductor and turn down to the

ferule. Cut the extra outer conductor along the

ferule. Cut the center conductor as fig.3.

Please be careful to not damage the center

conductor. Pre-solder the center conductor.

Part Number

B

C

27CP-P-1.5-CF

2.0mm

1.6mm

27CP-P-2.5-CF

2.0mm

1.6mm

27CP-BJ-1.5W-CF

2.0mm

3.0mm

④ Insert the contact and solder from side hole.

Please be careful to not make gap between

contact and center conductor of the cable and

not damage the insulator by heat. When the

solder is stick out, please shave the extra solder

along the contact. Insert the heat-shrinkable

tube.

crimp the root of the body as fig.5.

body and heat up.
