CS30

High side current sense high voltage op amp

Datasheet

- production data

Features

• Independent supply and input common-mode

voltages

• Wide common-mode operating range: 2.8 to

30 V

• Wide common-mode surviving range: - 0.3 to

60 V (load-dump)

• Wide supply voltage range: 4 to 24 V

• Low current consumption: ICC max = 300 µA

• Internally fixed gain: 20 V/V, 50 V/V or 100 V/V

• Buffered output

Applications

• Wireless battery chargers

• Chargers for portable equipment

• Precision current sources

• Wearable

Description

The CS30 measures a small differential voltage

on a high-side shunt resistor and translates it into

a ground referenced output voltage. The gain is

internally fixed.

Wide input common-mode voltage range, low

quiescent current, and tiny SOT23 packaging

enable use in a wide variety of applications.

The input common-mode and power supply

voltages are independent. The common-mode

voltage can range from 2.8 to 30 V in operating

conditions and up to 60 V in absolute maximum

rating conditions.

The current consumption below 300 µA and the

wide supply voltage range enable the power

supply to be connected to either side of the

current measurement shunt with minimal error.

2

1

3

Vp

Out

Gnd

4

5

Vm

Vcc

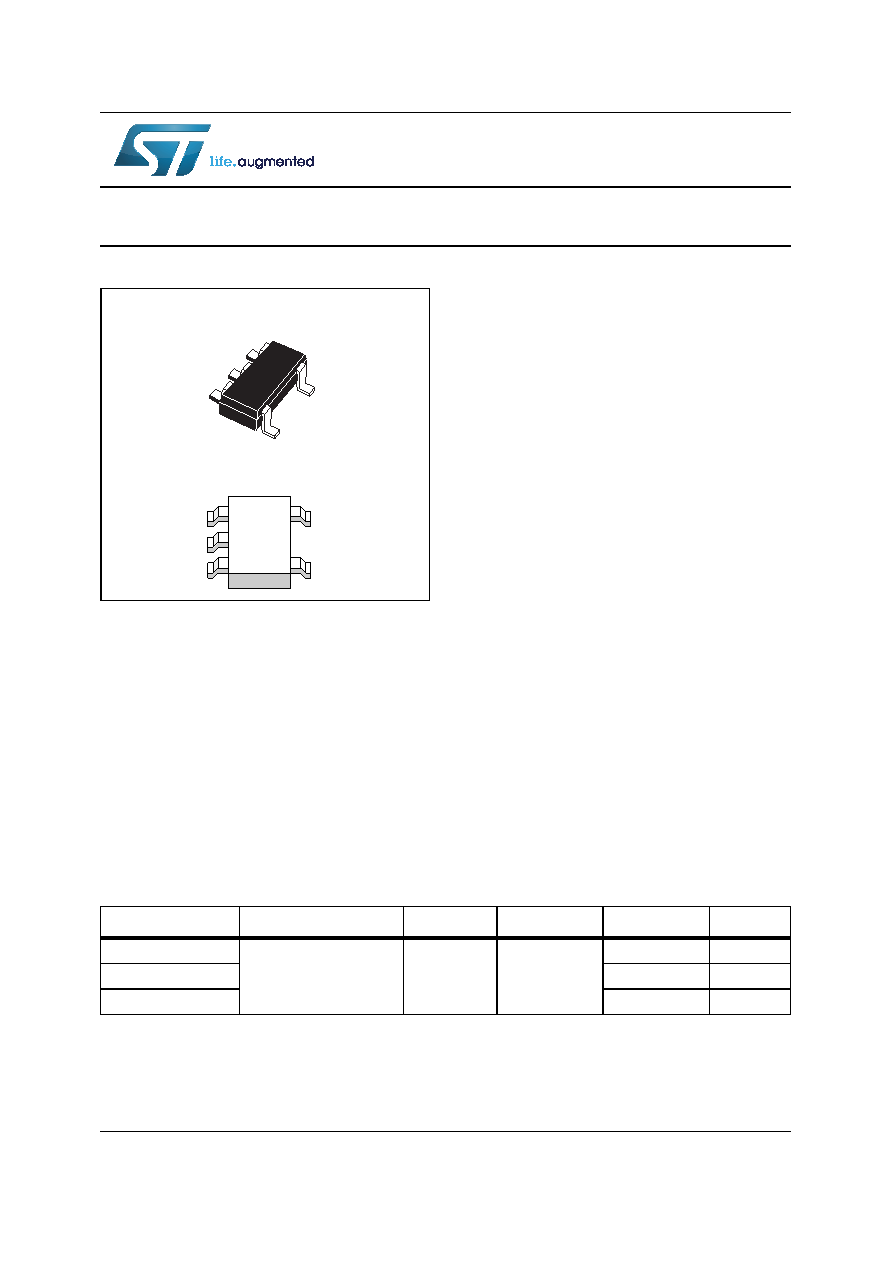

SOT23-5L

(Plastic package)

Pin connection

(Top view)

Table 1. Device summary

Part number

Temperature range

Package

Packaging

Marking

Gain

CS30AL

-40°C to +125°C

SOT23-5L

Tape & reel

O104

20

CS30BL

O105

50

CS30CL

O106

100

www.st.com
