AMS00x • Embedded Bluetooth Low Energy Solution

Pinout and Signal Descriptions, Section 5

ADS-MS00x-107R • Preliminary Data Sheet

Page | 8

September 14, 2015

5 Pinout and Signal Descriptions

5.1 Pinout

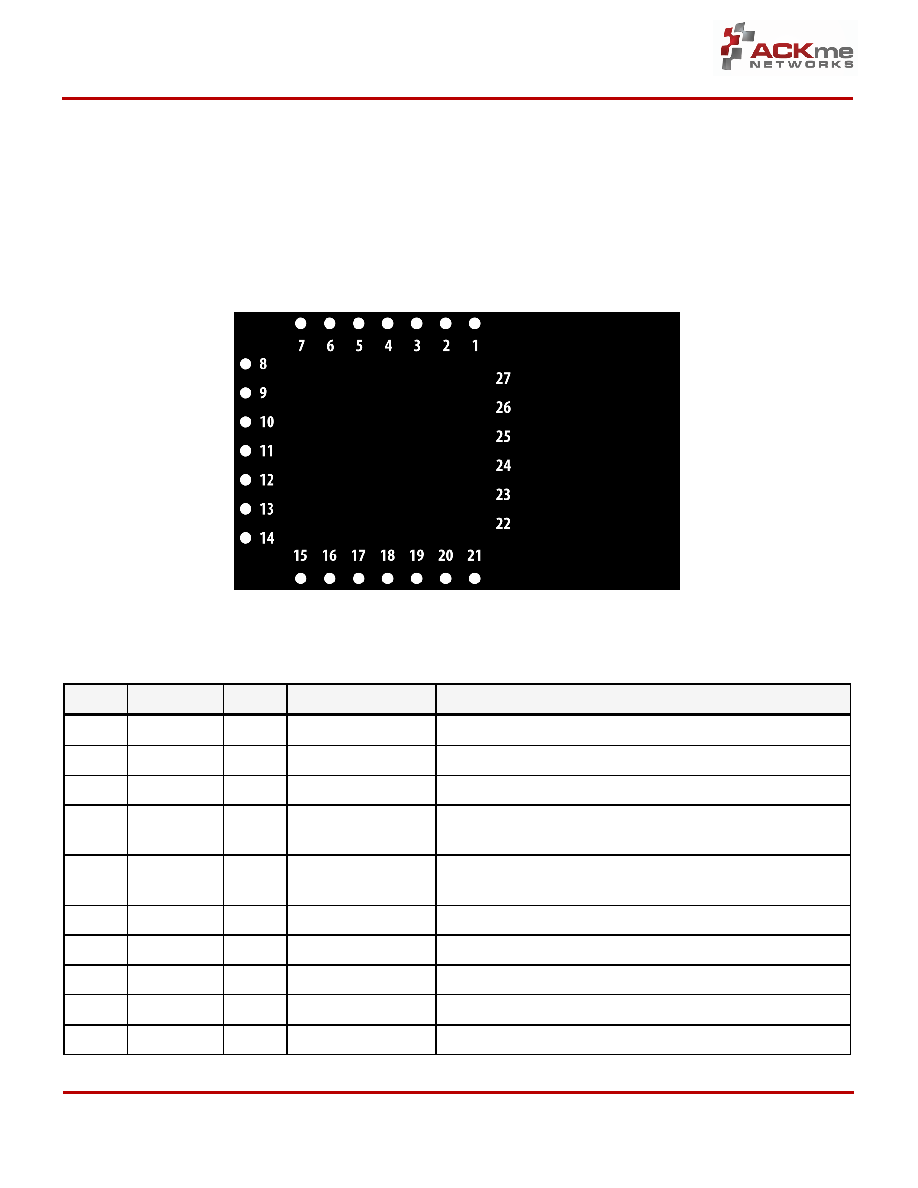

A top view of the AMS00x pinout is depicted in Figure 2.

All dimensions are in thousands of an inch. A recom-

mended PCB footprint is provided in Section 6.1.

Figure 2. AMS00x Pinout (TOP View – Pins NOT visible from top!)

5.2 Pin Description

Table 11. AMS00x Pin Definitions

Name

Type1

Primary Function

Alternate & Other Function(s)

GND

Ground

PROG_RX

PROG RX

PROG_TX

PROG TX

GPIO_0

I/O

Reserved4

Not available as digital I/O. Reserved for future use as

SPI_MOSI, I2C_SDA

GPIO_1

I/O

Reserved4

Not available as digital I/O. Reserved for future use as

SPI_CLK, I2C_SCL

GPIO_2

I/O

USER TX

SPI_MOSI (Slave), ADC, GPIO

GPIO_3

I/O

USER_RTS

SPI_MISO (Slave), ADC. , GPIO

RESET_N

System Reset

GPIO_4

I/O

USER_CTS

SPI_CLK (Slave), GPIO

GPIO_5

I/O

USER_RX

SPI_CS (Slave), GPIO
