TYPICAL PERFORMANCE CHARACTERISTICS

TA = 25°C, VPOS = 5 V, CFLT4 = 100 nF, 75 Ω shunt termination resistor to ground on (ac-coupled) RFIN, TA = +25°C (black), −40°C (blue),

+85°C (red), three-point calibration on VENV and VRMS at +5 dBm, −15 dBm, and −26 dBm, unless otherwise noted.

0.001

0.01

0.1

–30

–25

–20

–15

–10

–5

INPUT (dBm)

100MHz

900MHz

1900MHz

2140MHz

2600MHz

3500MHz

6000MHz

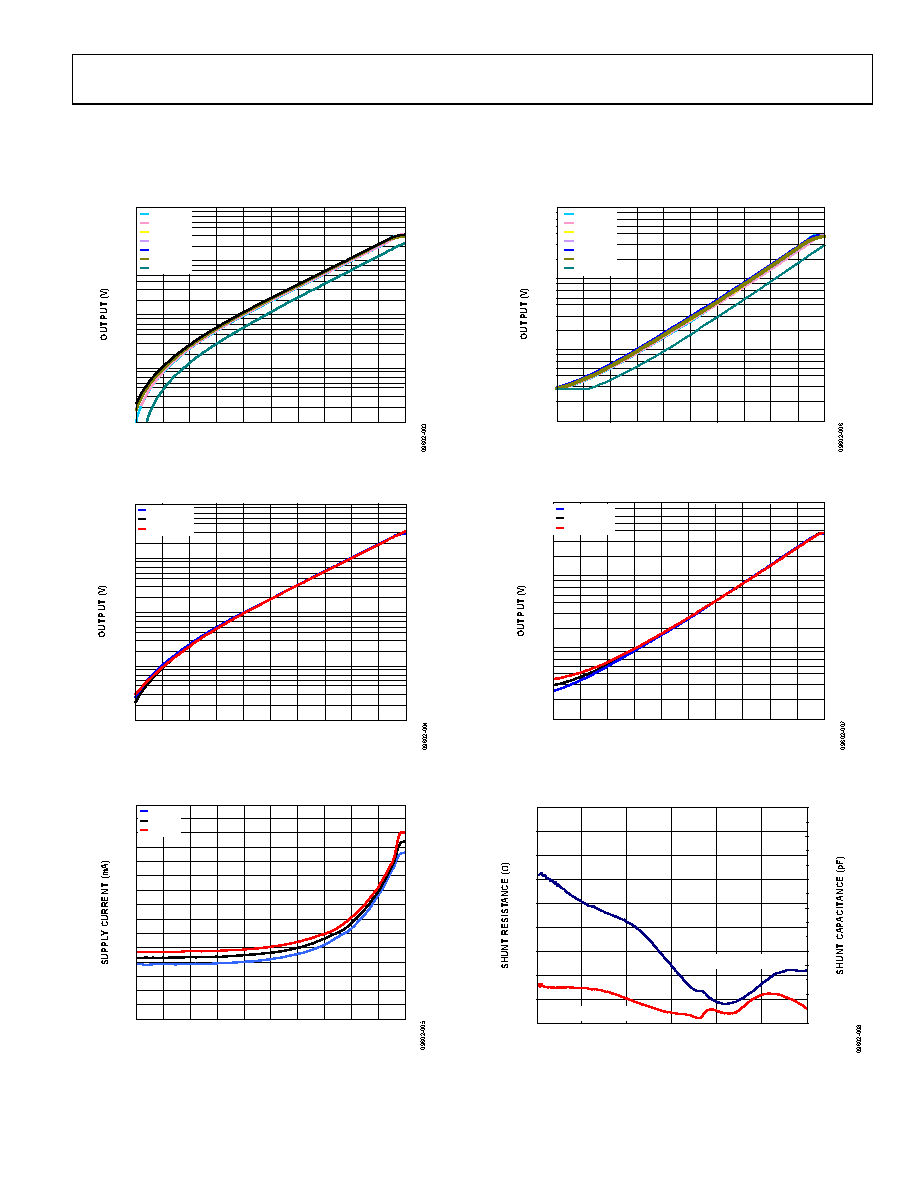

Figure 4. VENV Output vs. Input Level, at Various Frequencies at 25°C,

Supply 5 V

0.001

0.01

0.1

–30

–25

–20

–15

–10

–5

INPUT (dBm)

5V, –40°C

5V, +25°C

5V, +85°C

Figure 5. VENV Output vs. Input Level and Temperature at 1900 MHz,

Supply 5 V

–30

–25

–20

–15

–10

–5

INPUT (dBm)

–40°C

+25°C

+85°C

Figure 6. Supply Current vs. Input Level and Temperature

0.01

0.1

–30

–25

–20

–15

–10

–5

INPUT (dBm)

100MHz

900MHz

1900MHz

2140MHz

2600MHz

3500MHz

6000MHz

Figure 7. VRMS Output vs. Input Level, at Various Frequencies at 25°C,

Supply 5 V

–30

–25

–20

–15

–10

–5

0.01

0.1

INPUT (dBm)

5V, –40°C

5V, +25°C

5V, +85°C

Figure 8. VRMS Output vs. Input Level and Temperature at 1900 MHz,

Supply 5 V

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

2.4

2.6

2.8

3.0

100

150

200

250

300

350

400

450

0123

456

FREQUENCY (GHz)

SHUNT CAPACITANCE

SHUNT RESISTANCE

Figure 9. Input Impedance vs. Frequency
