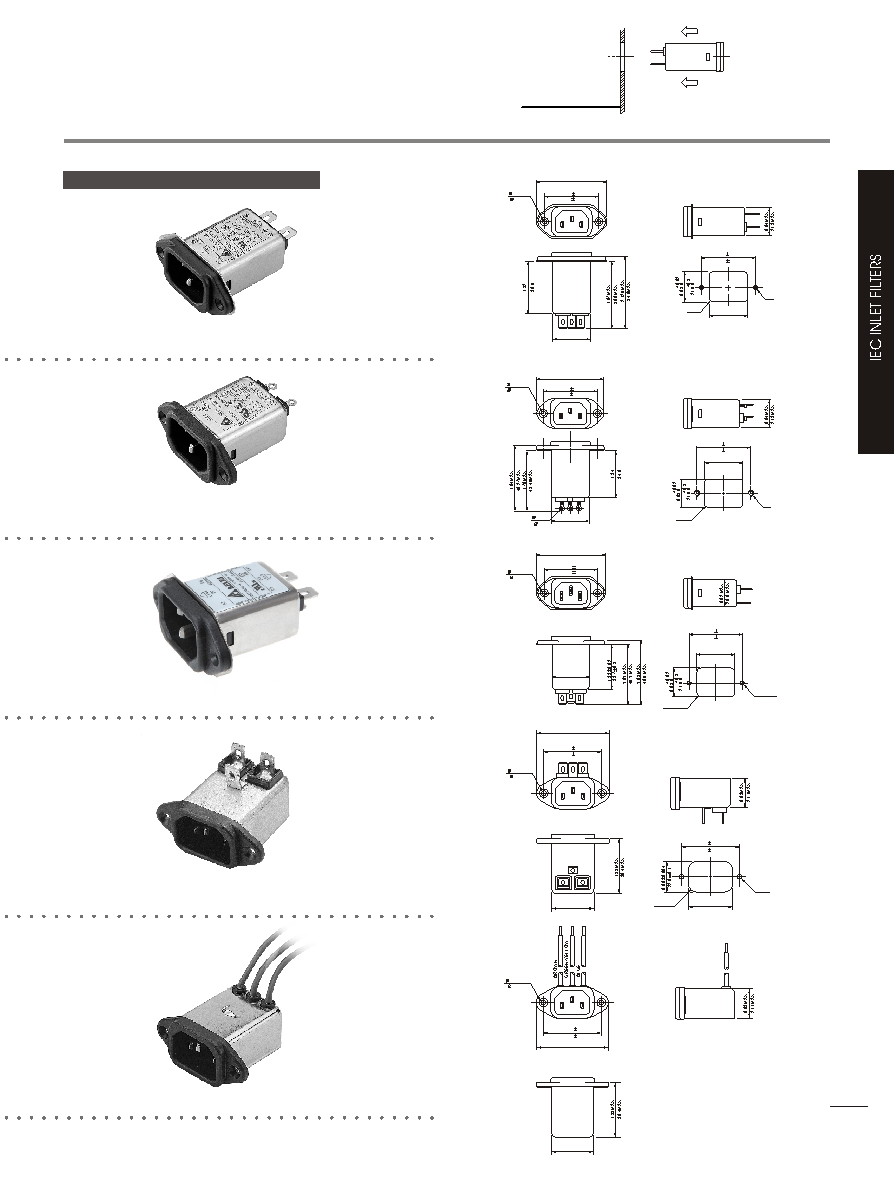

MECHANICAL CONSTRUCTION

2-5

EG3V

EW3V

EG3E, EG3Q (Optional soldering lug or wire type)

EG3S

EG3U (With Compact Size)

PCB

PANEL

ASSEMBLY FROM FRONT

30.0MAX.

1.18MAX.

1.99MAX.

50.5MAX.

1.575 0.02

40.0 0.5

40.0 0.13

0.14

3.5

R0.236

R6.0

1.575 0.005

1.20-0

+0.02

30.5-0

+0.5

SUGGESTED MOUNTING CUTOUT

(MOUNTING FROM BEHIND)

INCH

UNIT:

WIRE LENGTH : 4.0" MIN.

SUGGESTED MOUNTING CUTOUT

(SAME AS ABOVE)

1.18MAX.

30.0MAX.

1.99MAX.

50.5MAX.

40.0 0.5

1.575 0.02

3.3 (2X)

0.13 (2X)

2.07 MAX.

52.5 MAX.

M3 (2X)

1.12-0

+0.02

28.45-0

+0.5

40.0 0.5

1.575 0.02

28.5 MAX.

1.12 MAX.

R3.0 (4X)

R0.12 (4X)

1.575 0.005

40.0 0.13

3.3 (2X)

0.13 (2X)

3.3 (2X)

0.13 (2X)

R3.0

R0.12

1.575 0.005

0.079

2.0

1.12MAX.

28.4MAX.

1.99MAX.

50.5MAX.

40.0 0.5

1.575 0.02

40.0 0.13

0.13(2X)

3.3(2X)

SUGGESTED MOUNTING CUTOUT

(MOUNTING FROM FRONT)

28.4Max.

1.12Max.

40.0 0.5

1.575 0.02

2.07MAX.

52.5MAX.

1.12-0

R0.12

R3.0

+0.02

40.0 0.13

1.575 0.005

28.45-0

+0.5

3.3(2X)

0.13(2X)
