TPLE Series

www.gztoppower.com

TEL:020-82019000

EMAIL:sales@gztoppower.com

page 2 of 3

ABSOLUTE MAXIMUM RATINGS

Short-circuit protection

1 second

Lead temperature 1.5mm from case for 10 seconds

300°C

Input voltage Vin, TPLE03

5.5V

Input voltage Vin, TPLE05

7V

Input voltage Vin, TPLE12

15V

Input voltage Vin, TPLE24

28V

ISOLATION CHARACTERISTICS

Parameter

Conditions

Min.

Typ.

Max.

Units

Isolation test voltage

Tested for 1 second

1500

VDC

Resistance

Viso= 1000VDC

1

GΩ

GENERAL CHARACTERISTICS

Parameter

Conditions

Min.

Typ.

Max.

Units

Switching frequency

All input types

110

kHz

TEMPER ATURE CHARACTERISTICS

Parameter

Conditions

Min.

Typ.

Max.

Units

Specification

Derating if the temperature ≥85°C

-40

105

℃

Storage

-55

130

℃

Cooling

Free air convection

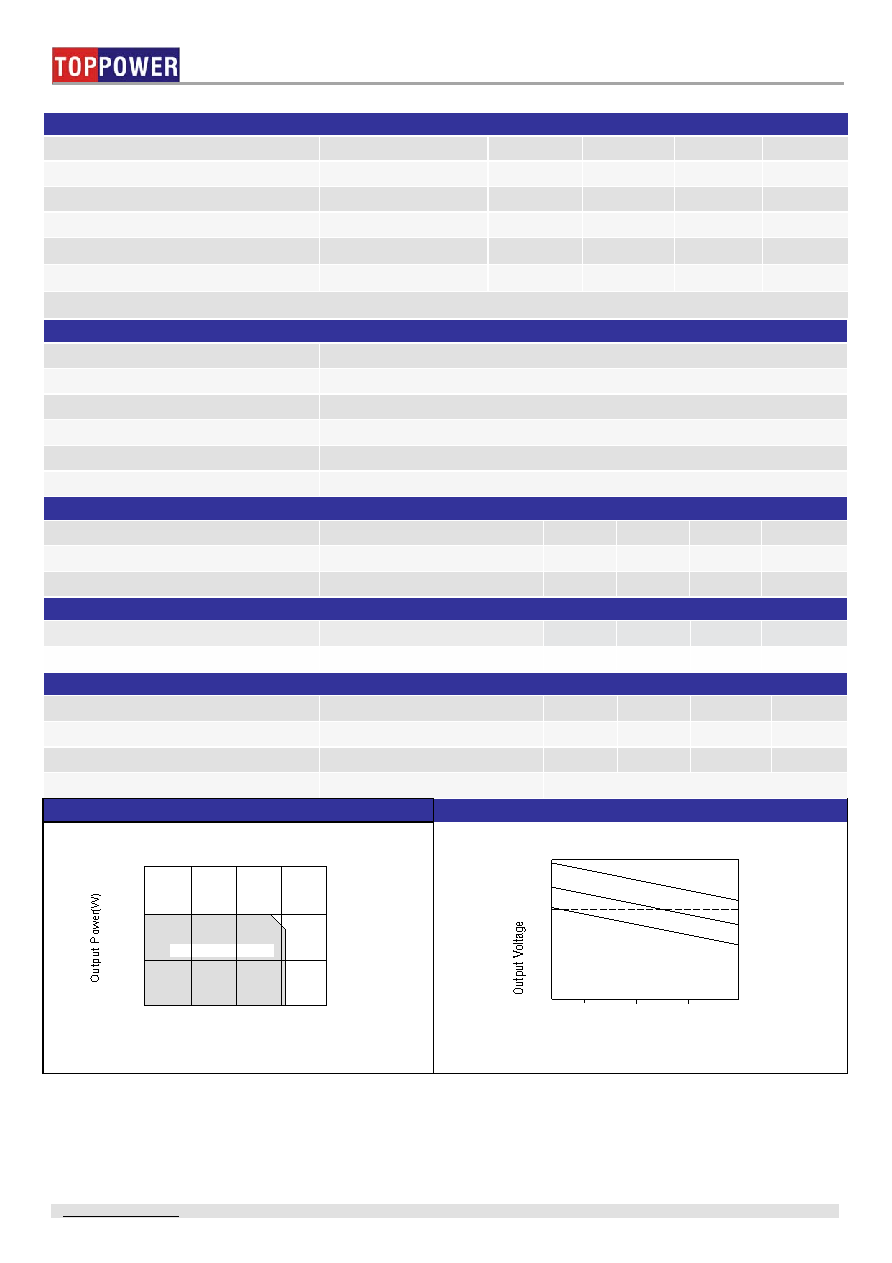

TEMPERATURE DERATING GRAPHS

TOLERANCE ENVELOPES

OUTPUT CHARACTERISTICS

Parameter

Conditions

Min.

Typ.

Max.

Units

Rated Power

TA=-40°C to 85°C

0.25

W

Voltage Set Point Accuracy

See tolerance envelope

Line regulation

High Vin to low Vin

1

1.2

%/%

Load Regulation(10% load to rated load)

5V output types

16

%

Load Regulation(10% load to rated load)

all other types

11

%

All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.

Output Load Current(%)

+10%

+5%

V

NOM

-2.5%

+2.5%

-7.5%

100

75

50

25

10

Typical Load Line

0.375

0.250

0.125

0

-40

0

50 100

150

Ambient Temperature(°C)

85°C

Safe Operating Area

105

TOPPOWER
