Data Sheet

AD8392A

Rev. A | Page 5 of 12

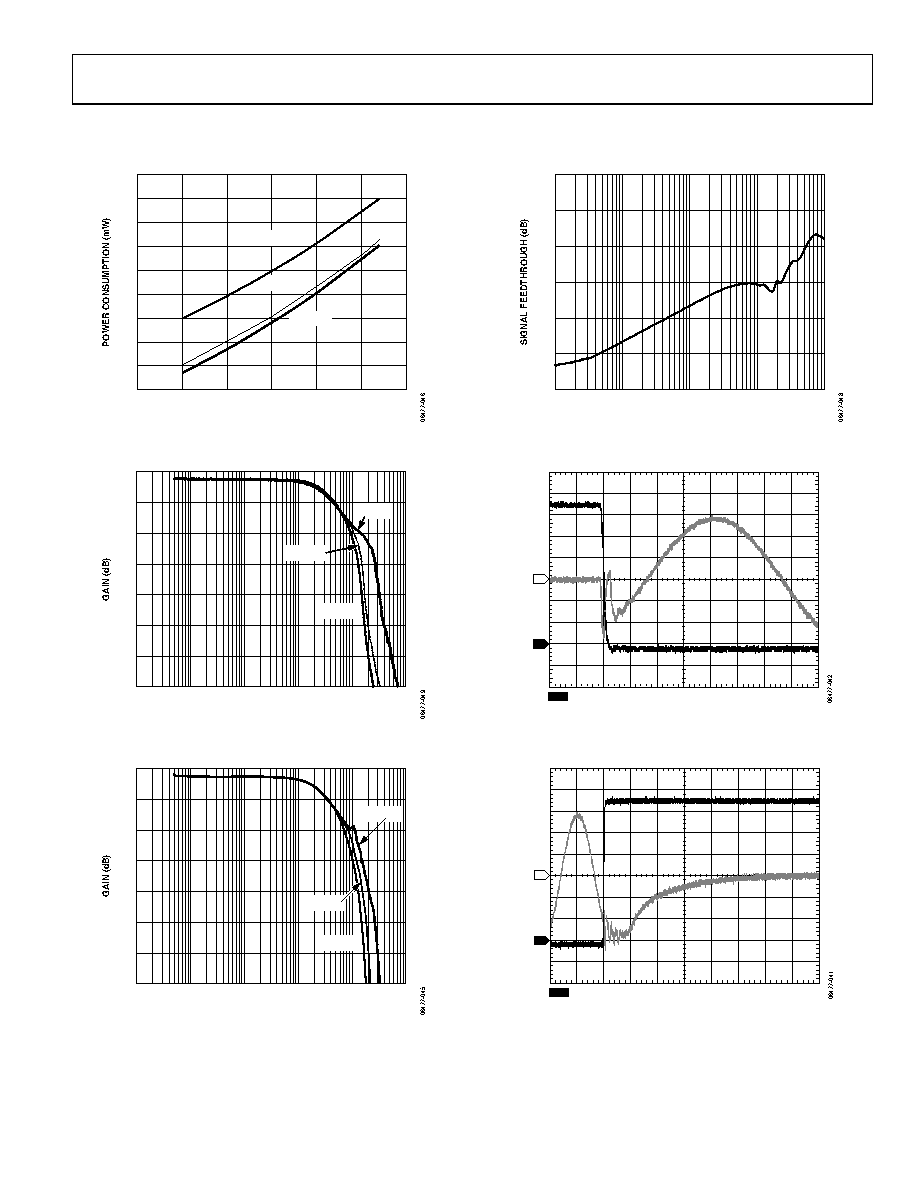

TYPICAL PERFORMANCE CHARACTERISTICS

900

450

OUTPUT POWER (dBm)

850

800

750

700

650

600

550

500

PD (1, 0)

PD (0, 0)

PD (0, 1)

Figure 4. Power Consumption vs. Output Power (138 kHz to 2.2 MHz),

ADSL/ADSL2+ Circuit (Figure 15), VS = ±12 V, RLOAD = 100 Ω, CF = 5.5

–20

10k

FREQUENCY (Hz)

100k

10M

100M

–5

–10

–15

PD (0, 1)

PD (0, 0)

PD (1, 0)

Figure 5. Small Signal Frequency Response

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 100 mV p-p, RF = 2 kΩ

–20

10k

FREQUENCY (Hz)

100k

10M

100M

–5

–10

–15

PD (0, 0)

PD (0, 1)

PD (1, 0)

Figure 6. Large Signal Frequency Response

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 4 V p-p, RF = 2 kΩ

–120

100k

FREQUENCY (Hz)

10M

100M

–20

–40

–60

–80

–100

Figure 7. Signal Feedthrough vs. Frequency

VS = ±12 V, G = +5, VIN = 800 mV p-p, PD (1, 1), RF = 2 kΩ

CH1 500mV CH2 500mV

100ns

Figure 8. Power-Up Time: PD (1, 1) to PD (0, 0)

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 1 V p-p, RF = 2 kΩ

CH1 500mV CH2 500mV

400ns

Figure 9. Power-Down Time: PD (0, 0) to PD (1, 1)

VS = ±12 V, RLOAD = 100 Ω, G = +5, VOUT = 1 V p-p, RF = 2 kΩ
