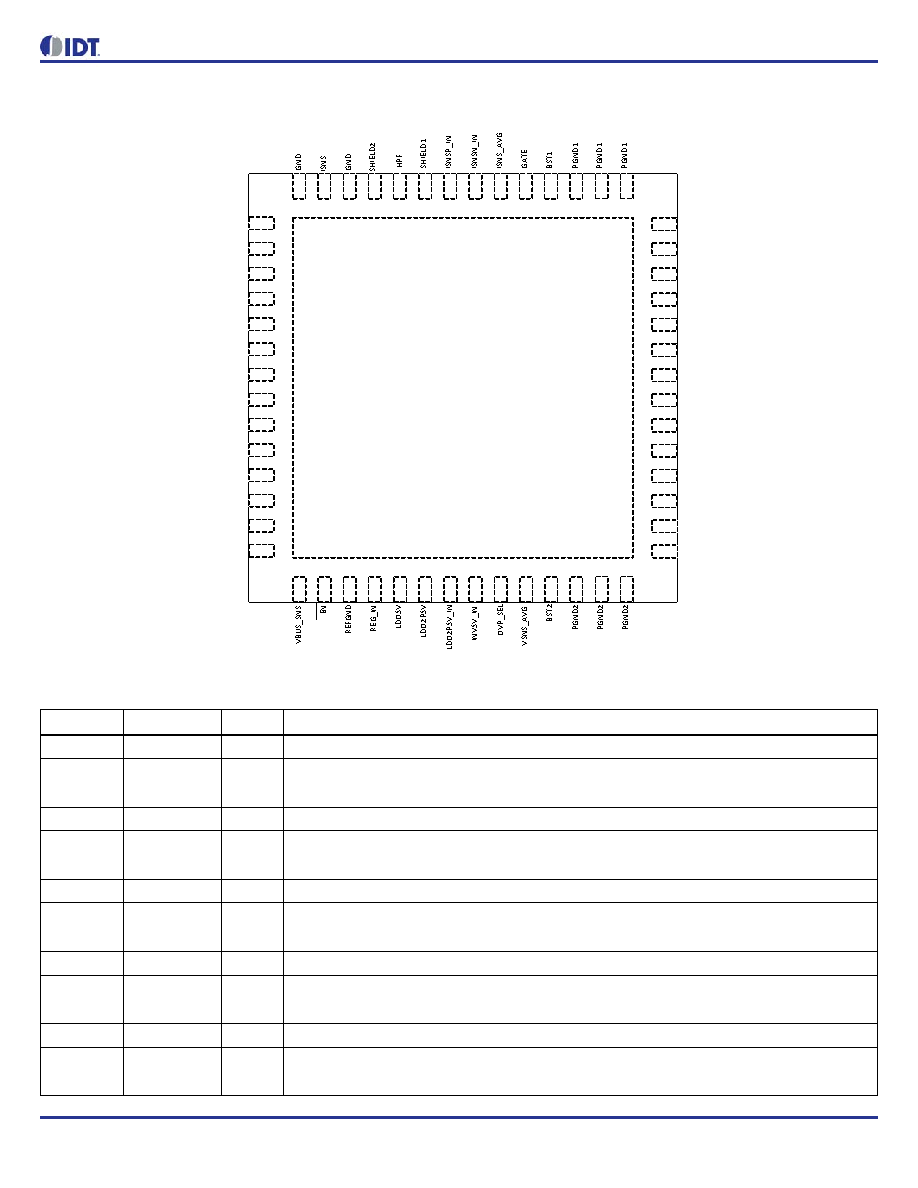

Pin Configuration

Pin Descriptions

Pin #

Name

Type

Function

1

GND

I

Signal Ground Connection.

2

NC

–

Do not connect. Internally connected.

3

GPIO6

I/O

General Purpose Input/Output.

4

GPIO5

I/O

General Purpose Input/Output.

5

GPIO4

I/O

General Purpose Input/Output.

6

GPIO3

I/O

General Purpose Input/Output.

7

GPIO2

I/O

General Purpose Input/Output.

8

GPIO1

I/O

General Purpose Input/Output.

9

GPIO0

I/O

General Purpose Input/Output.

10

SCL

I

11

SDA

I/O

12

DP

I/O

USB Data Positive Input. If not used, the pin can be floating.

13

DM

I/O

USB Data Negative Input. If not used, the pin can be floating.

14

RESET

I

Active-high Reset Pin. Connect a 47KΩ to GND or tie directly to GND if not used.

15

VBUS_SNS

I

VBUS OVP sense point & provides bias for OVP circuitry.
