Data Sheet

ADA4528-1/ADA4528-2

Rev. D | Page 25 of 28

2.44

2.34

2.24

TOP VIEW

0.30

0.25

0.20

BOTTOM VIEW

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.70

1.60

1.50

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

PIN 1

INDICATOR

(R 0.15)

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-WEED

0.20 MIN

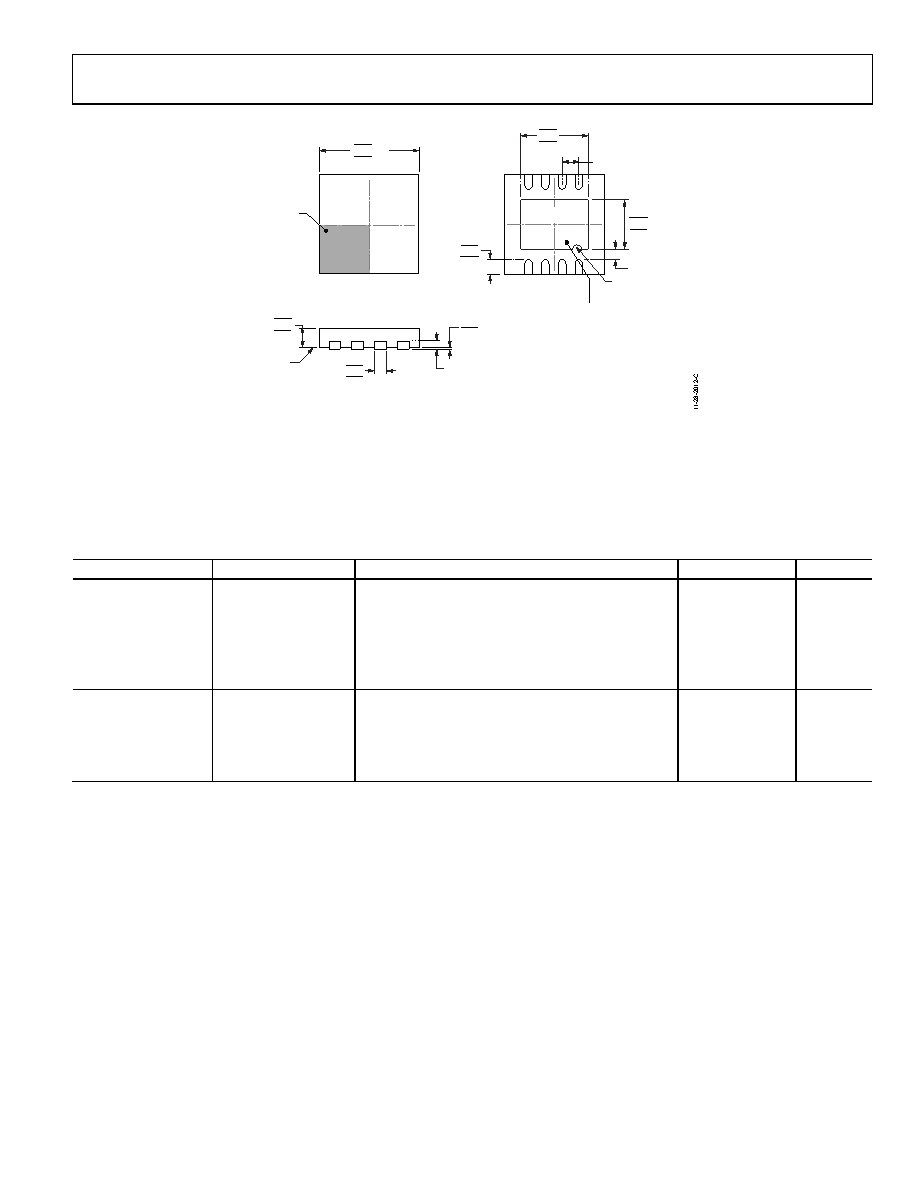

Figure 76. 8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

3 mm × 3 mm Body, Very Very Thin, Dual Lead

(CP-8-11)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

Branding

ADA4528-1ARMZ

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A2R

ADA4528-1ARMZ-R7

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A2R

ADA4528-1ARMZ-RL

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A2R

ADA4528-1ACPZ-R2

−40°C to +125°C

8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

CP-8-12

A2R

ADA4528-1ACPZ-R7

−40°C to +125°C

8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

CP-8-12

A2R

ADA4528-1ACPZ-RL

−40°C to +125°C

8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

CP-8-12

A2R

ADA4528-2ARMZ

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A32

ADA4528-2ARMZ-R7

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A32

ADA4528-2ARMZ-RL

−40°C to +125°C

8-Lead Mini Small Outline Package [MSOP]

RM-8

A32

ADA4528-2ACPZ-R7

−40°C to +125°C

8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

CP-8-11

A32

ADA4528-2ACPZ-RL

−40°C to +125°C

8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

CP-8-11

A32

Z = RoHS Compliant Part.
