HMC557A
Data Sheet
Rev. C | Page 22 of 23
APPLICATIONS INFORMATION

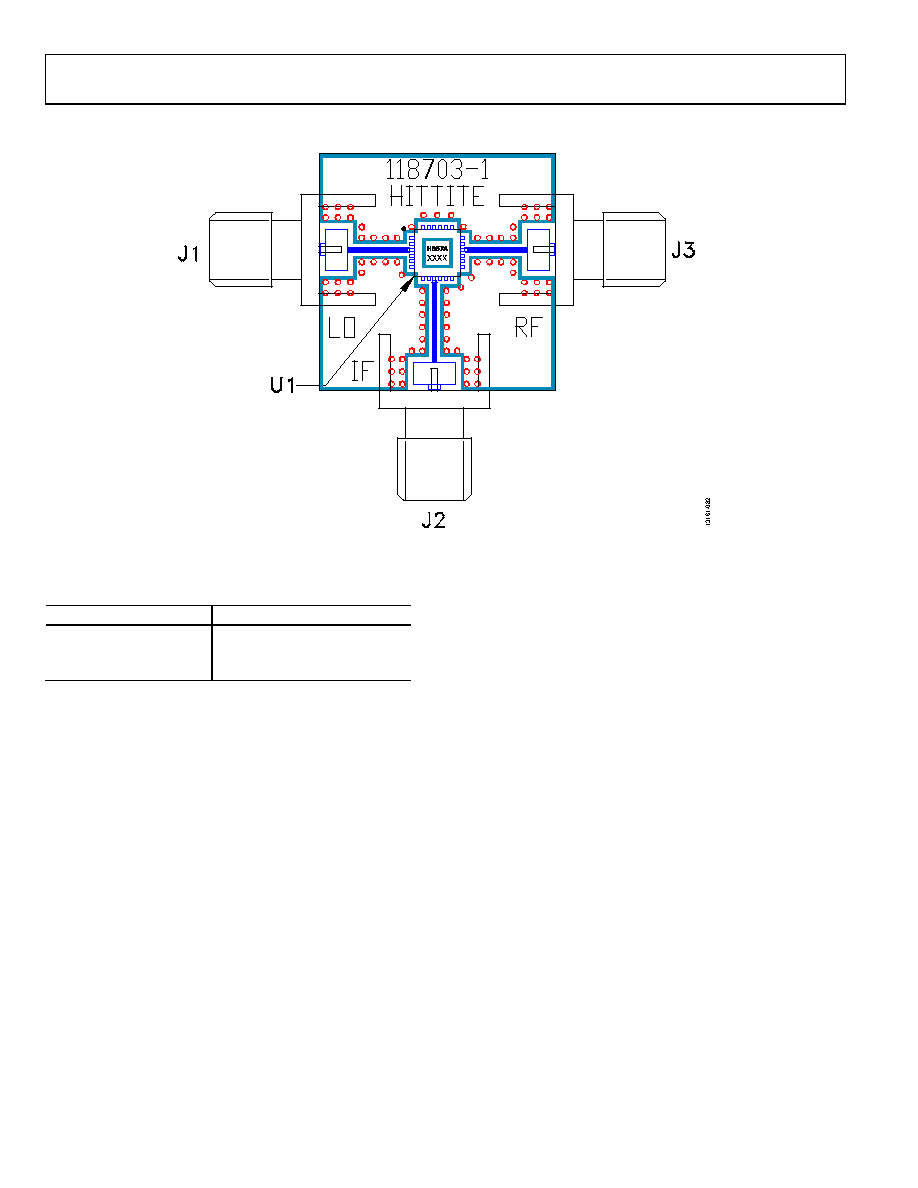

Figure 83. Evaluation Printed Circuit Board (PCB)
Table 5. List of Materials for Evaluation PCB
EV1HMC557ALC41
Item
Description
J1, J2, J3
Johnson SMA connector
U1
HMC557ALC4 mixer
PCB2
118703 evaluation PCB3
1
Reference this number when ordering the complete evaluation PCB.
2
The circuit board material is Rogers 4350.
3
This is the bare PCB of the evaluation PCB kit (see Figure 83).
It is recommended that the application circuit board use RF circuit
design techniques. Use signal lines with a 50 Ω impedance, and
connect the package ground leads and exposed pad directly to
the ground plane. Use a sufficient number of via holes to connect
the top and bottom ground planes. The evaluation circuit board
shown in Figure 83 is available from Analog Devices, Inc., upon
request.
