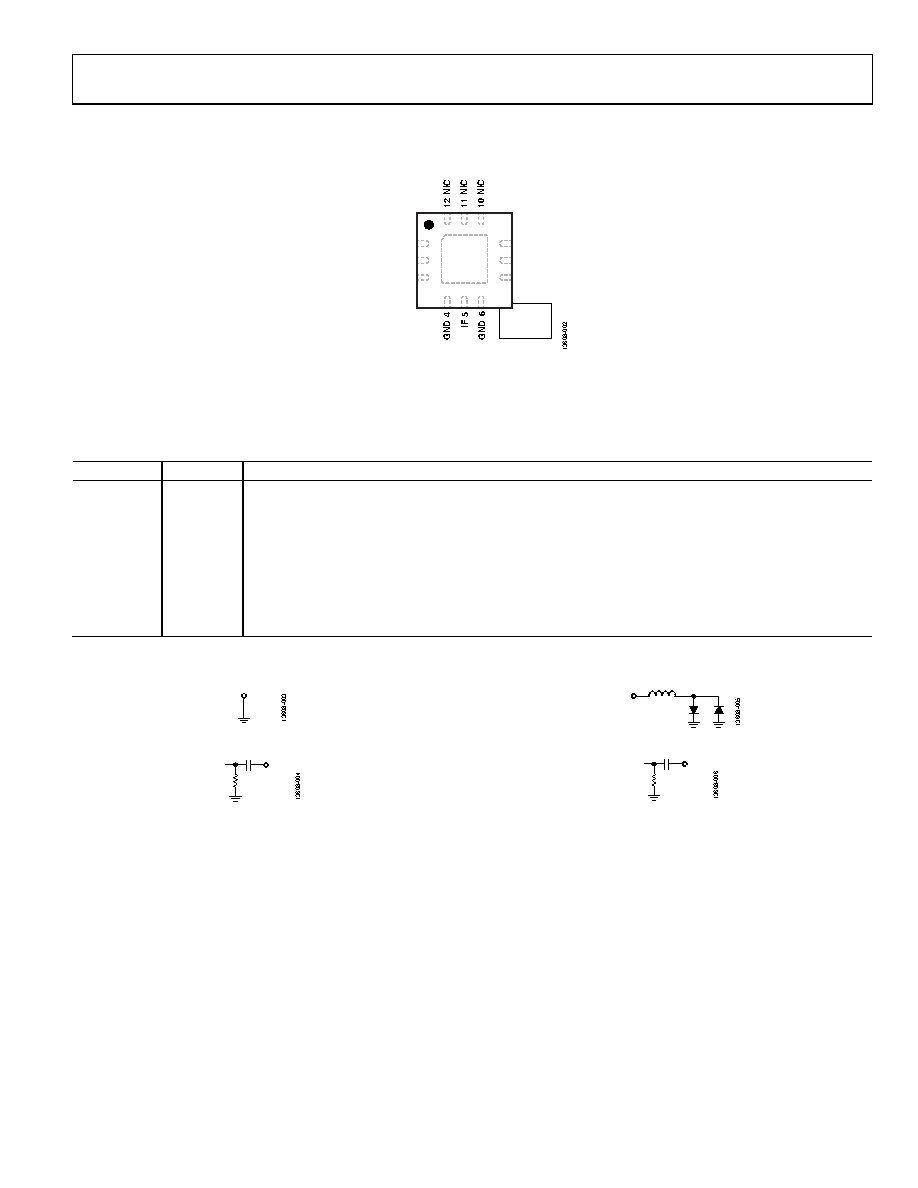

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

9

8

1

37

2

GND

LO

GND

GND

RF

GND

GND

PACKAGE

BASE

HMC787A

TOP VIEW

(Not to Scale)

NOTES

1. NIC = NOT INTERNALLY CONNECTED.

2. EXPOSED PAD. EXPOSED PAD MUST

BE CONNECTED TO RF/DC GROUND.

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 3, 4, 6, 7, 9

GND

Ground. Connect the package bottom to RF/dc ground. See Figure 3 for the GND interface schematic.

2

LO

Local Oscillator. This pin is dc-coupled and matched to 50 Ω. See Figure 4 for the LO interface schematic.

5

IF

Intermediate Frequency. This pin is dc-coupled. For applications not requiring operation to dc, externally

block this pin using a series capacitor whose value is chosen to pass the necessary IF frequency range. For

operation to dc, this pin must not source or sink more than 12 mA of current or device nonfunction and

possible device failure results. See for Figure 5 the IF interface schematic.

8

RF

Radio Frequency. This pin is dc-coupled and matched to 50 Ω. See Figure 6 for the RF interface schematic.

10 to 12

NIC

Not Internally Connected.

EPAD

Exposed Pad. Exposed pad must be connected to RF/dc ground.

INTERFACE SCHEMATICS

GND

Figure 3. GND Interface Schematic

LO

Figure 4. LO Interface Schematic

IF

Figure 5. IF Interface Schematic

RF

Figure 6. RF Interface Schematic
