Data Sheet
ADL5205
Rev. 0 | Page 11 of 31
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, 26dB
5V, 14dB
5V, 6dB
3.3V, 26dB
3.3V, 14dB
3.3V, 6dB

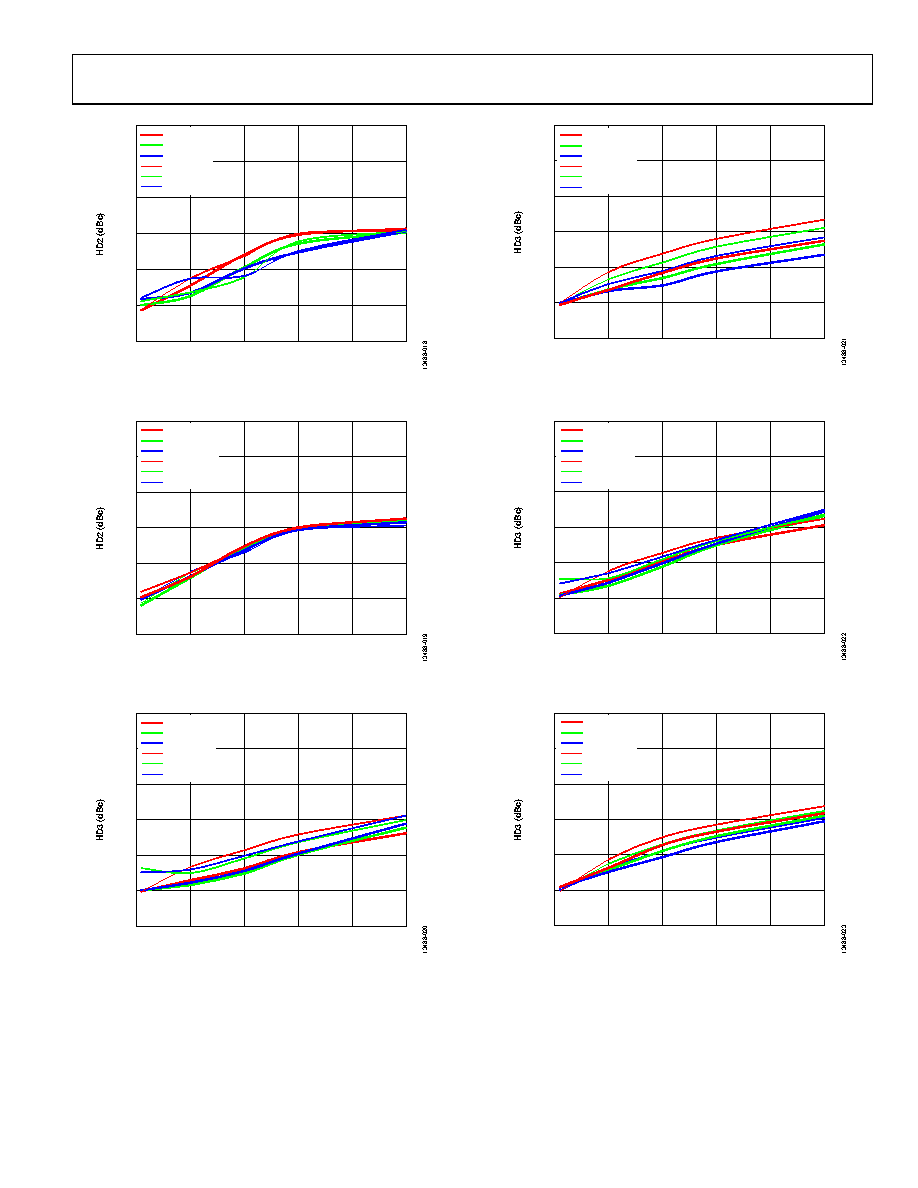

Figure 18. Second Harmonic Distortion (HD2) vs. Frequency over VPOS for Three
Gain Codes at 2 V p-p Composite, Low Power Mode
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, +85°C
5V, +25°C
5V, –40°C
3.3V, +85°C
3.3V, +25°C
3.3V, –40°C
Figure 19. Second Harmonic Distortion (HD2) vs. Frequency over VPOS for Three
Temperatures at Maximum Gain, 2 V p-p Composite, Low Power Mode
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, 26dB
5V, 14dB
5V, 6dB
3.3V, 26dB
3.3V, 14dB
3.3V, 6dB
Figure 20. Third Harmonic Distortion (HD3) vs. Frequency over VPOS for Three Gain
Codes at 2 V p-p Composite, High Performance Mode
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, +85°C
5V, +25°C
5V, –40°C
3.3V, +85°C
3.3V, +25°C
3.3V, –40°C
Figure 21. Third Harmonic Distortion (HD3) vs. Frequency vs. VPOS for Three
Temperatures at Maximum Gain, 2 V p-p Composite, High Performance Mode
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, 26dB
5V, 14dB
5V, 6dB
3.3V, 26dB
3.3V, 14dB
3.3V, 6dB
Figure 22. Third Harmonic Distortion (HD3) vs. Frequency over VPOS for Three Gain
Codes at 2 V p-p Composite, Low Power Mode
0
–120
–100
–80
–60
–40
–20
0
100
200
300
400
500
FREQUENCY (MHz)
5V, +85°C
5V, +25°C
5V, –40°C
3.3V, +85°C
3.3V, +25°C
3.3V, –40°C
Figure 23. Third Harmonic Distortion (HD3) vs. Frequency over VPOS for Three
Temperatures at Maximum Gain, 2 V p-p Composite, Low Power Mode
