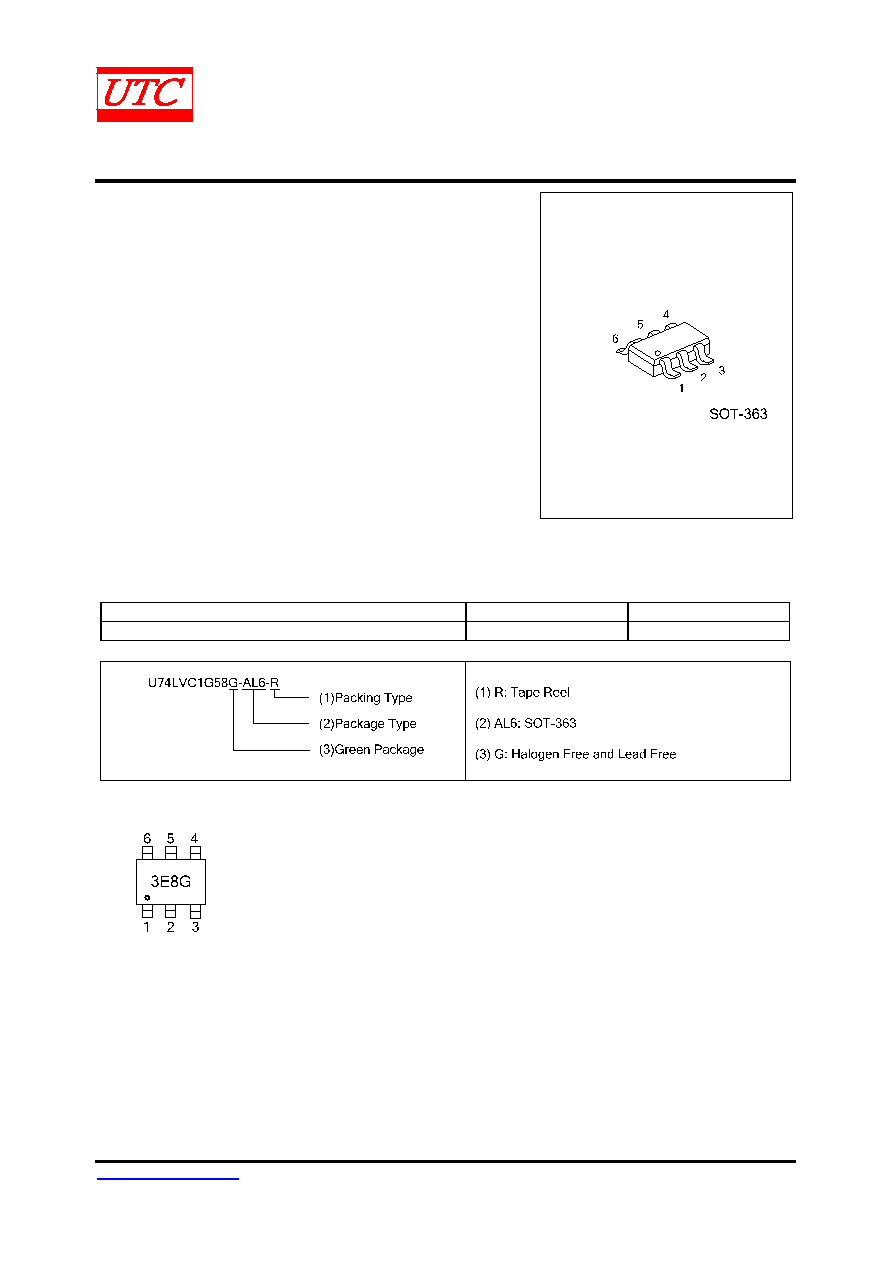

UNISONIC TECHNOLOGIES CO., LTD

U74LVC1G58

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R126-032.A

MULTIPLE-FUNCTION GATE



DESCRIPTION

The U74LVC1G58 features configurable multiple functions. The

output state is determined by eight patterns of 3-bit input. The user

can choose the logic functions AND, OR, NAND, NOR, XOR,

inverter,and noninverter,All inputs can be connected to VCC or GND.

This device functions as an independent gate, but because of

Schmitt action, it may have different input threshold levels for

positive-going (VT+) and negative-going(VT-) signals.



FEATURES

* Wide supply voltage range from 1.65V to 5.5V

* Inputs accept voltages up to 5.5V

* IOFF supports partial-power-down mode

* Low static power consumption; ICC=10μA (Max.)



ORDERING INFORMATION

Ordering Number

Package

Packing

U74LVC1G58G-AL6-R

SOT-363

Tape Reel



MARKING
