UNISONIC TECHNOLOGIES CO., LTD

TL431TV

Preliminary

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 5

Copyright © 2016 Unisonic Technologies Co., Ltd

QW-R103-112 .A

PROGRAMMABLE PRECISION

REFERENCE



DESCRIPTION

The UTC TL431TV is a three-terminal adjustable regulator with a

guaranteed thermal stability over applicable temperature ranges.

(approximately 2.5V) and 36V with two external resistors. It provides

very wide applications, including shunt regulator, series regulator,

switching regulator, voltage reference and others.



FEATURES

* Programmable output Voltage to 36V.

* Low dynamic output impedance 0.2Ω.

* Sink current capability of 1.0 to 100mA.

* Equivalent full-range temperature coefficient of 50ppm/°C

typical for operation over full rated operating temperature range.



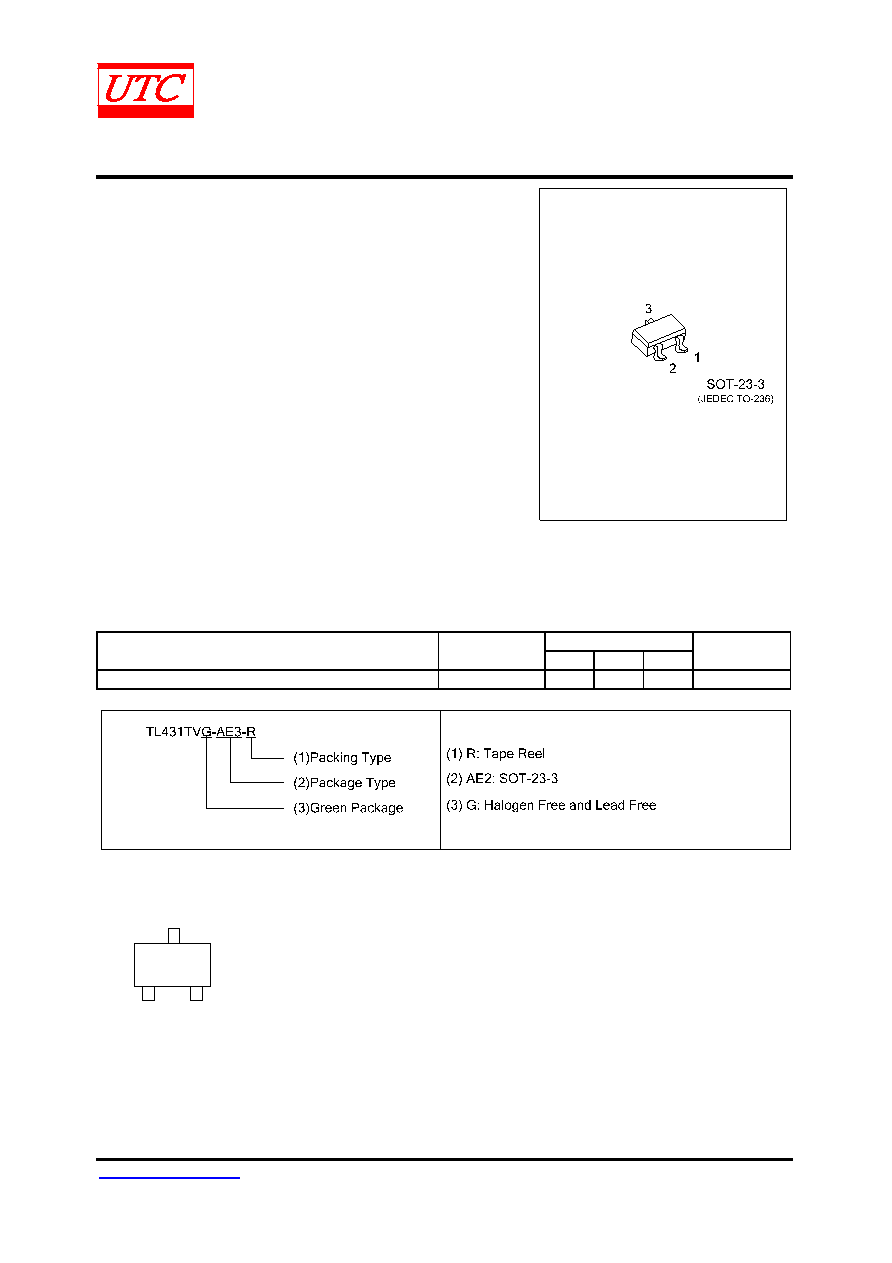

ORDERING INFORMATION

Pin Assignment

Ordering Number

Package

1

2

3

Packing

TL431TVG-AE2-R

SOT-23-3

K

R

A

Tape Reel

Note: Pin Code: K: Cathode

A: Anode

R: Reference



MARKING

3

431TV

1

2
