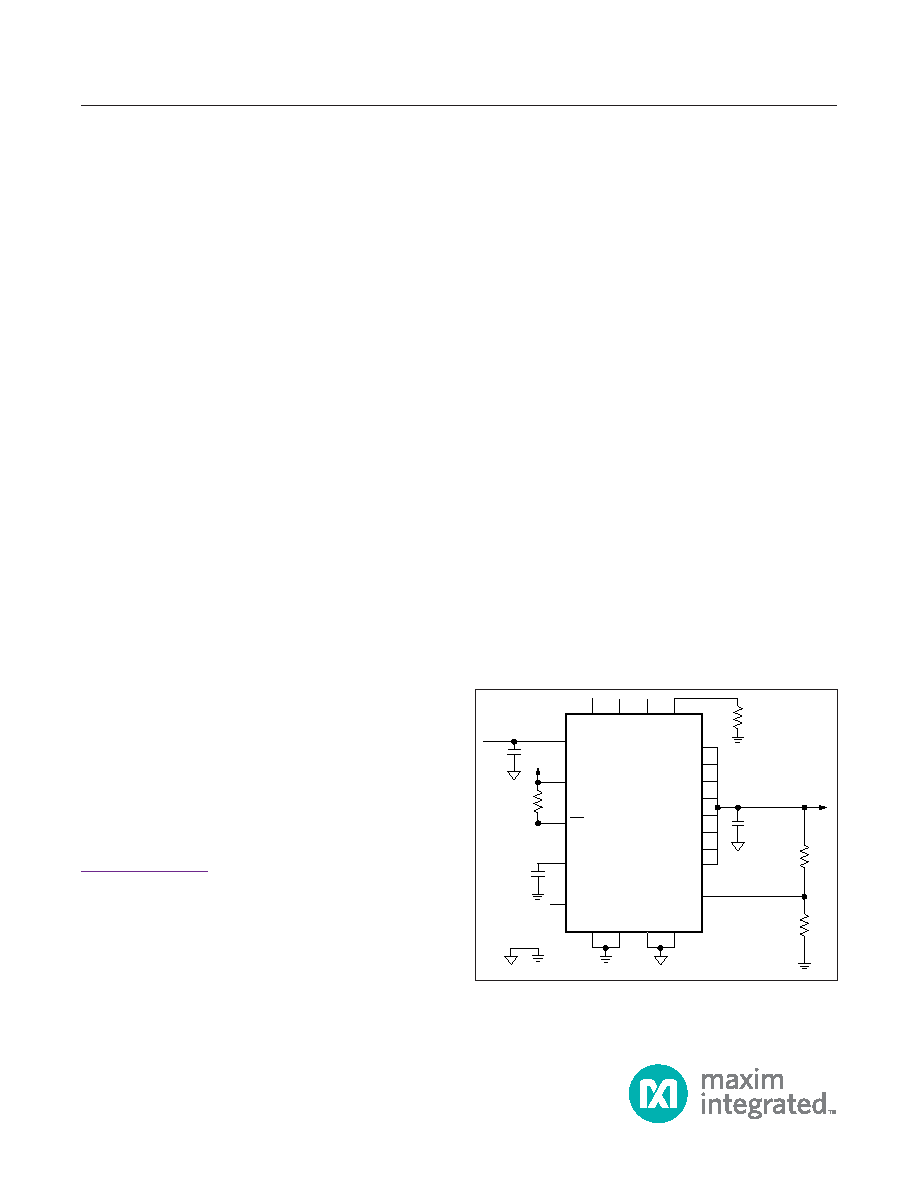

1 / 18 page  General Description The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17543 is an easy-to-use, step-down power module that combines a switching power supply controller, dual n-channel MOSFET power switches, fully shielded inductor, and the compensation components in a low-profile, thermally-efficient, system-in-package (SiP). The device operates over a wide input voltage range of 4.5V to 42V and delivers up to 2.5A continuous output current with excellent line and load regulation over an output voltage range of 0.9V to 12V. The device only requires five external components to complete the total power solution. The high level of integration significantly reduces design complexity, manufacturing risks, and offers a true plug-and-play power supply solution, reducing time-to- market. The device can be operated in the pulse-width modulation (PWM), pulse-frequency modulation (PFM), or discontinu- ous conduction mode (DCM) control schemes. The MAXM17543 is available in a low-profile, highly thermal-emissive, compact, 29-pin 9mm x 15mm x 2.8mm SiP package that reduces power dissipation in the package and enhances efficiency. The package is easily soldered onto a printed circuit board and suitable for automated circuit board assembly. The device can operate over the industrial temperature range from -40°C to +125°C. Applications ● Industrial Power Supplies ● Distributed Supply Regulation ● FPGA and DSP Point-of-Load Regulator ● Base Station Point-of-Load Regulator ● HVAC and Building Control Features and Benefits ● Reduces Design Complexity, Manufacturing Risks, and Time-to-Market • Integrated Switching Power Supply Controller and Dual-MOSFET Power Switches • Integrated Inductor • Integrated Compensation Components • Integrated Thermal-Fault Protection • Integrated Peak Current Limit ● Saves Board Space in Space-Constrained Applications • Complete Integrated Step-Down Power Supply in a Single Package • Small Profile 9mm x 15mm x 2.8mm SiP Package • Simplified PCB Design with Minimal External BOM Components ● Offers Flexibility for Power-Design Optimization • Wide Input Voltage Range from 4.5V to 42V • Output-Voltage Adjustable Range from 0.9V to 12V • Adjustable Frequency with External Frequency Synchronization (100kHz to 1.8MHz) • Soft-Start Programmable • Autoswitch PWM, PFM, or DCM Current-Mode Control • Optional Programmable EN/UVLO Ordering Information appears at end of data sheet. 19-7450; Rev 0; 11/14 MAXM17543 4.5V to 42V, 2.5A High-Efficiency, DC-DC Step- Down Power Module with Integrated Inductor 4.5V TO 42V IN SS SGND PGND PGND FB OUT OUT OUT OUT OUT OUT OUT SYNC MAXM17543 VIN VOUT VCC CIN OPTIONAL EP3 VCC RESET EN MODE RT CF EP1 RT COUT RU RB CSS Typical Application Circuit |
