MPI4040R3-2R2-R datasheet(16/40 Pages) TI1

tên linh kiện	MPI4040R3-2R2-R

Giải thích chi tiết về linh kiện	3.5 V to 36 V Wide-VIN Synchronous 2.1 MHz Step-Down Converters

PDF	40 Pages

Scroll/Zoom	100%

nhà sản xuất	TI1 [Texas Instruments]

Trang chủ	http://www.ti.com

Logo

16 / 40 page

Temperature (°C)

-60

-40

-20

100

120

140

3.5

4.5

5.5

6.5

7.5

D023

3.3 V

5 V

2 ms/div

SW, 5V/div

Iinductor, 500mA/div

VOUT, 50mV/div

10µs/div

LM53602, LM53603

SNVSAR0 – NOVEMBER 2016

www.ti.com

Product Folder Links: LM53602 LM53603

Submit Documentation Feedback

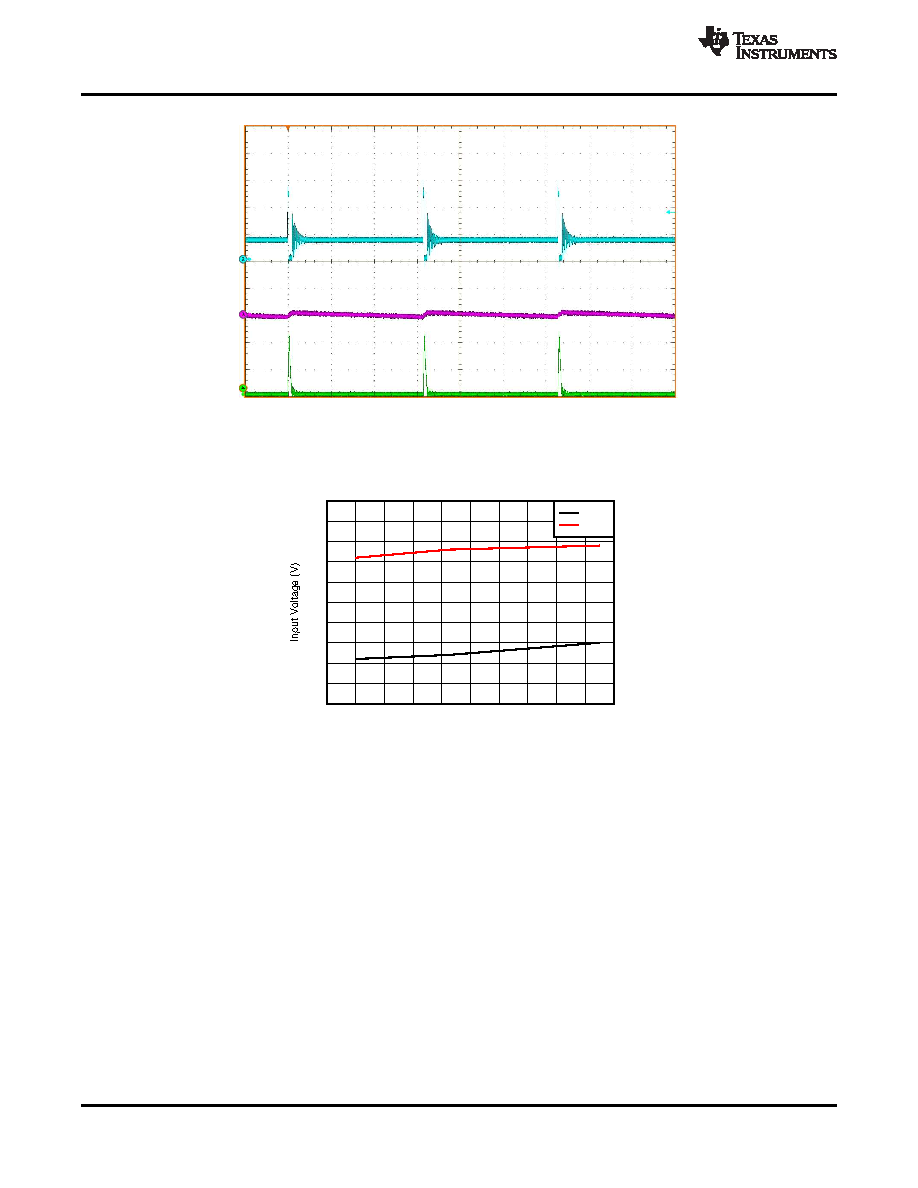

Figure 12. Typical PFM Switching Waveforms

Figure 13. Input Voltage for Mode Change

8.4.2 FPWM Mode

With a logic high on the FPWM input, the device is locked in PWM mode. This operation is maintained, even at

no-load, by allowing the inductor current to reverse its normal direction. This mode trades off reduced light load

efficiency for low output voltage ripple, tight output voltage regulation, and constant switching frequency. In this

mode, a negative current limit of INEG is imposed to prevent damage to the regulators low-side FET. When in

FPWM, the converter synchronizes to any valid clock signal on the SYNC input (see Dropout and Input Voltage

Frequency Fold-Back).

MPI4040R3-2R2-R bảng dữ liệu(PDF) 16 Page - Texas Instruments
